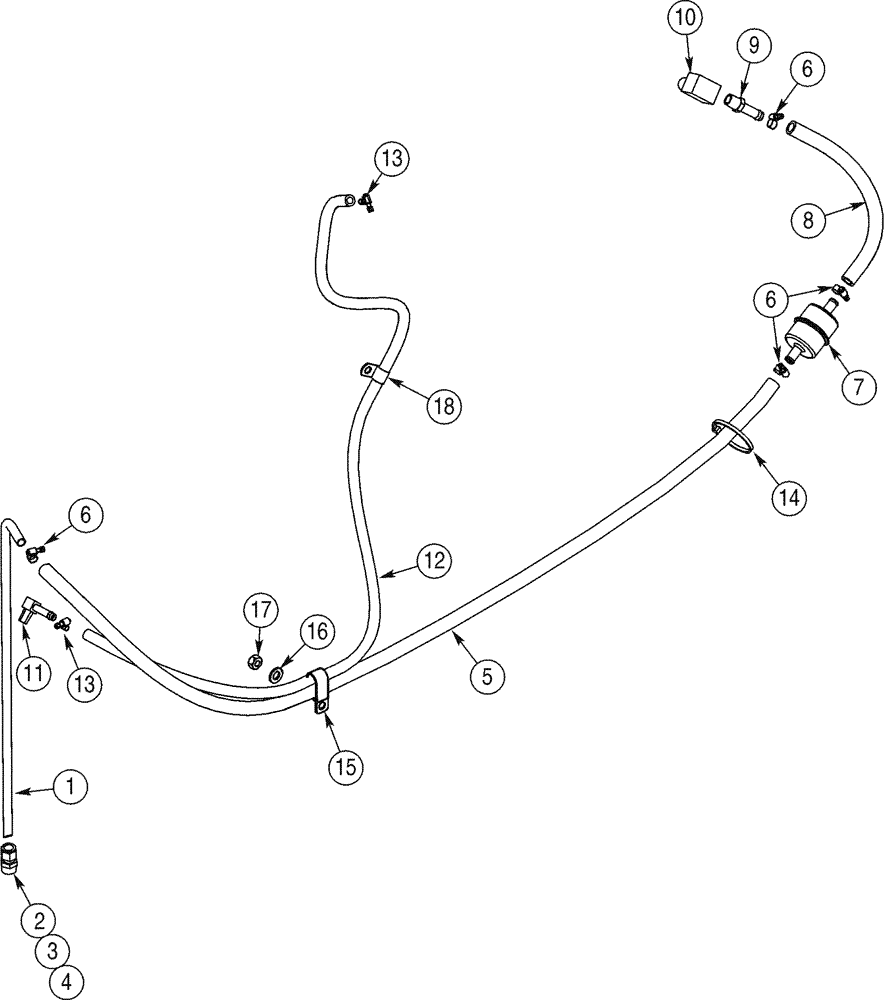

Запчасти Case 821C (03-05) - FUEL LINES FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

North American Models JEE0126216-

1шт.

1

L128379

FUEL TUBE,12.7 mm OD x 575, 64 mm L

Supply

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

1/2 tube OD x 1/2 PT, Compression, Consists Of 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

222-656

SLEEVE

1/2 tube OD

1шт.

4

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

1/2 tube OD x 11/16

1шт.

5

416733A1

HOSE

1450 mm (57 in), Cut From 32-80

1шт.

6

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

7

194199A1

FUEL FILTER

In-Line

1шт.

8

413173A1

HOSE

305 mm (12 in), Cut From 32-80

1шт.

9

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

10

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

11

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

12

444050A1

HOSE,9.50 mm ID x 1520.00 mm

Return, Cut From Bulk

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

15

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

16

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.
