Запчасти Case 821C (03-04) - FUEL LINES FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

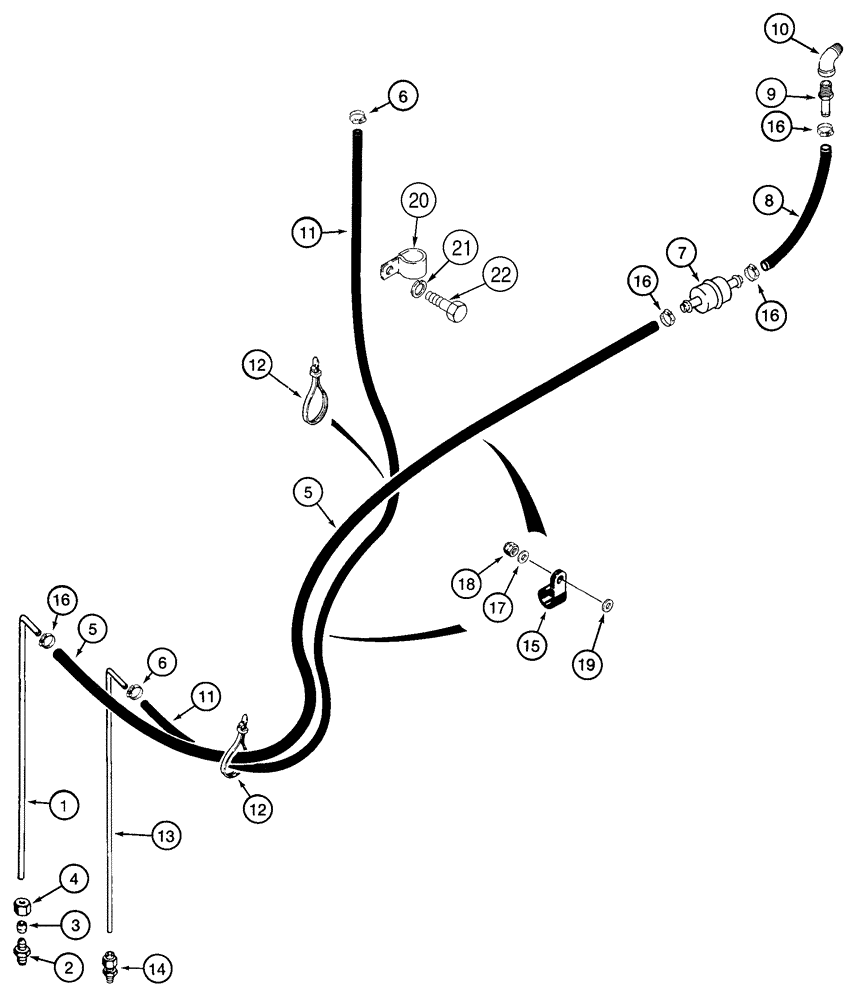

Схема запчастей Case 821C - (03-04) - FUEL LINES FILTER, IN-LINE FUEL (03) - FUEL SYSTEM
4
16
11
7
21
16
19
6
20
12
18
16
15
14
6
2
16
22
8
10
5
3
9
11
1
5
17
12
13

Артикул

Название

Примечание

Количество

All Models -JEE0126215

1шт.

1

L128379

FUEL TUBE,12.7 mm OD x 575, 64 mm L

Supply

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

1/2 tube OD x 1/2 PT, Compression, Consists Of 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

222-656

SLEEVE

1/2 tube OD

1шт.

4

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

1/2 tube OD x 11/16

1шт.

5

226615A1

FUEL HOSE

1422 mm (56 in), Cut From 32-80

1шт.

6

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

7

194199A1

FUEL FILTER

In-Line

1шт.

8

226084A1

HOSE, BULK

HOSE, METERS , 241 mm (9-1/2 in), Cut From 32-80

1шт.

9

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

10

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

11

226616A1

FUEL HOSE

1067 mm (42 in), Return, Cut From 31-2855

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

13

226083A1

FUEL TUBE,7.94 mm OD

1шт.

14

L125532

FITTING

Component Parts Not Serviced Separately

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

16

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

19

S95569

WASHER

If Used

1шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

21

892-11010

LOCK WASHER,M10

1шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

Выбрано товаров: 24
