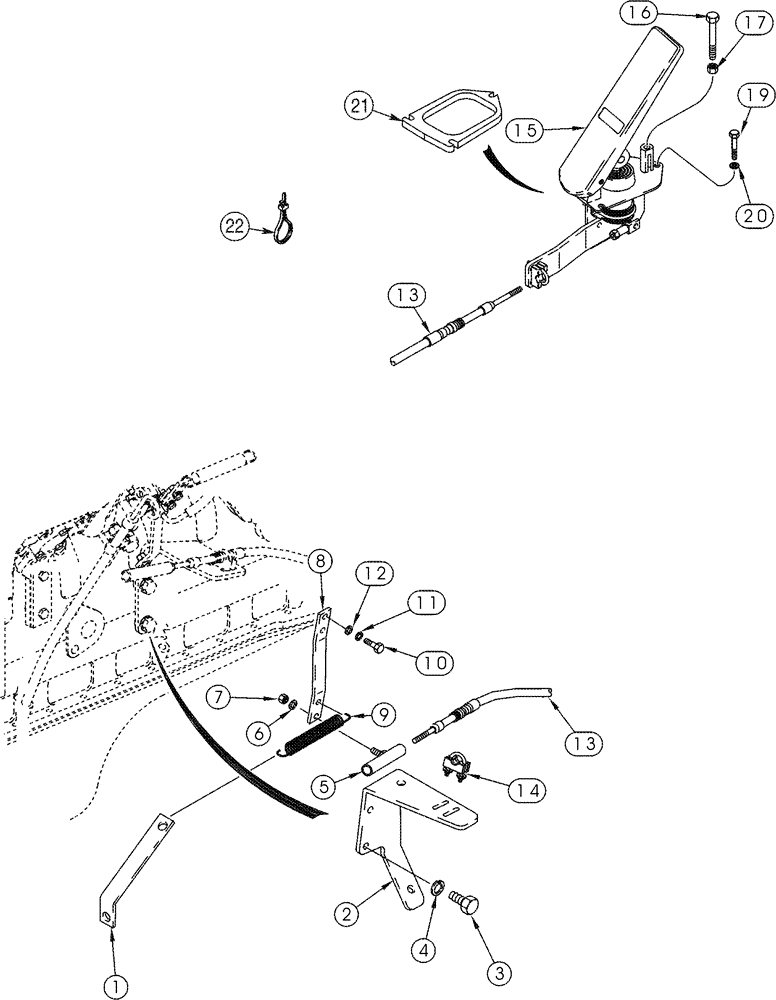

Запчасти Case 821C (03-01) - CONTROLS THROTTLE, FOOT (03) - FUEL SYSTEM

All Models -JEE0126215

1шт.

1

305689A1

PLATE

Attach With Upper Brake Pump Mounting Bolt

1шт.

2

301854A1

SUPPORT

1шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

225619A1

BALL JOINT

1шт.

6

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

7

131-63

LOCK NUT,1/4"-28, G8

1шт.

8

301853A1

LEVER

Throttle

1шт.

9

L78607

SPRING

1шт.

10

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

2шт.

11

892-11006

LOCK WASHER,M6

2шт.

12

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

316517A1

BOWDEN CONTROL

1шт.

14

259529A1

CLAMP BRACKET

Includes Hardware

1шт.

15

295157A1

PEDAL ASSY.

See Page(s) 3-5

1шт.

16

627-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9, Full Thd

1шт.

17

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

19

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

Replaces 827-6030

3шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

21

234124A2

PLATE

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in, Cable

1шт.
