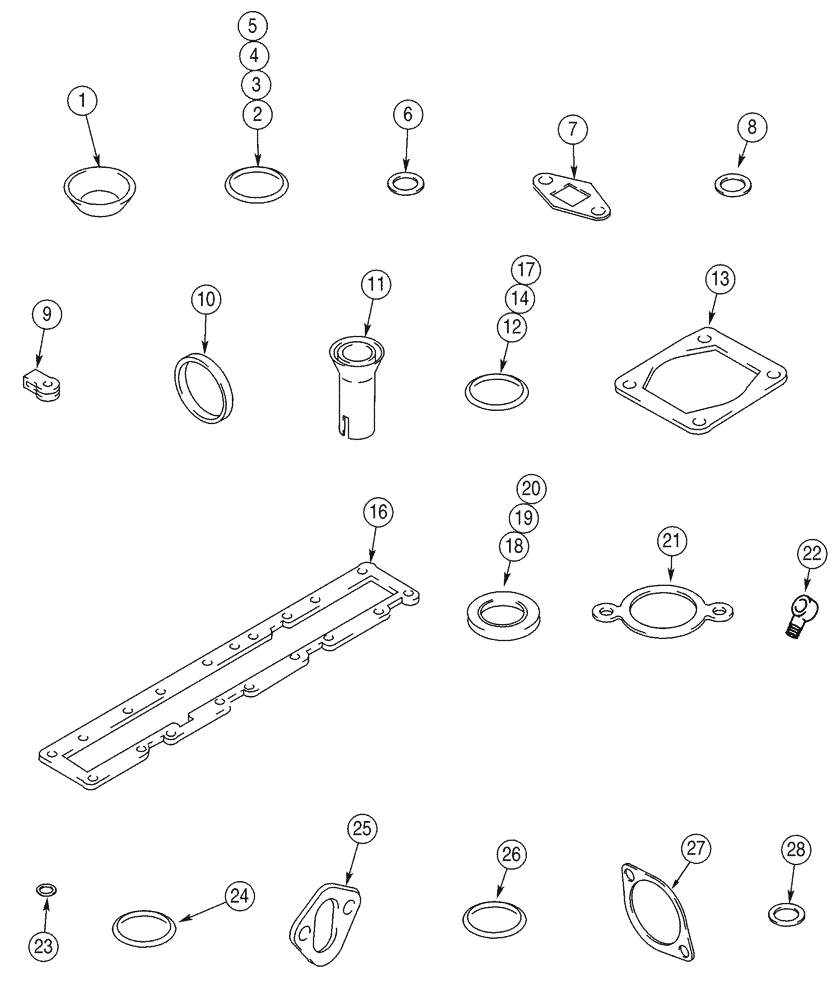

Запчасти Case 821C (02-51) - GASKET KIT (02) - ENGINE

6TAA-830 Emissions Certified Engine

1шт.

Basic Service Engine

1шт.

European Models JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

A78043

CYLINDER HEAD GASKET

Consists Of 1 - 28

1шт.

1

222-993

GASKET,3/8 Tube, Fl, Copper

Not Used

2шт.

2

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

See Page(s) 2-51D

2шт.

3

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Not Used

2шт.

4

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Not Used

2шт.

5

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

Not Used

2шт.

6

933697R1

SEALING RING,M10 x 13.5 x 1

Not Used

2шт.

6TAA-830 Emissions Certified Engine

1шт.

Basic Service Engine

1шт.

European Models JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

7

J937706

GASKET,0.79mm Thk

See Page(s) 2-31D

1шт.

8

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Page(s) 2-57F

2шт.

9

J903380

SEAL

See Page(s) 3-11B

6шт.

10

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Page(s) 2-29H

1шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

See Page(s) 3-11B

6шт.

12

J910517

O-RING

Not Used

1шт.

13

J755843

GASKET,0.5mm Thk

See Page(s) 2-31D

1шт.

6TAA-830 Emissions Certified Engine

1шт.

Basic Service Engine

1шт.

European Models JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

14

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING , See Page(s) 2-87

1шт.

16

J936993

MANIFOLD GASKET,0.76mm Thk

See Page(s) 2-31D

1шт.

17

J916284

O-RING

See Page(s) 3-19

1шт.

18

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

See Page(s) 3-11B

2шт.

19

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

10 x 15,5 x 1 mm, See Page(s) 3-13B

2шт.

20

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

14 x 20 x 1 mm, See Page(s) 3-15D, 3-19B

4шт.

21

J918779

GASKET,1.19mm Thk

Not Used

1шт.

6TAA-830 Emissions Certified Engine

1шт.

Basic Service Engine

1шт.

European Models JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

22

J919644

FITTING

See Page(s) 3-13B

2шт.

23

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

2,5 mm, Not Used

6шт.

24

J924605

SEAL

See Page(s) 3-19D

1шт.

25

J939258

GASKET,1.21mm Thk

See Page(s) 3-15D

1шт.

26

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

See Page(s) 2-31F

1шт.

27

J932063

MANIFOLD GASKET,1.78mm Thk

See Page(s) 2-31D

6шт.

28

J935171

SEALING WASHER

12 x 19 x 1,5 mm, See Page(s) 3-13B, 3-15D

8шт.
