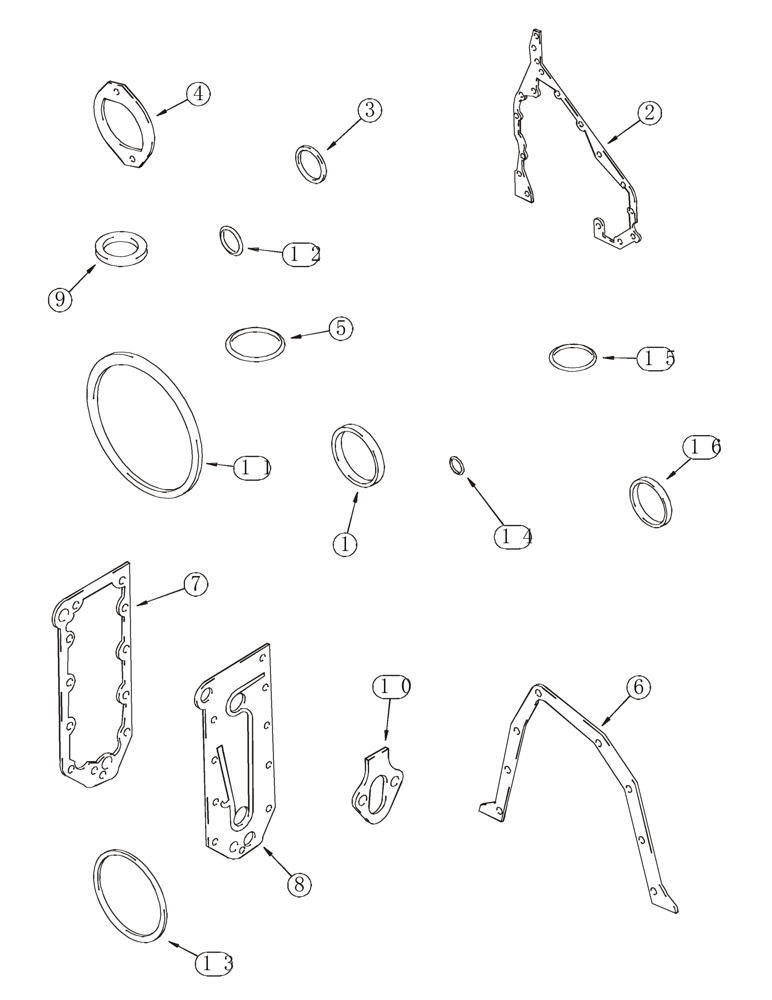

Запчасти Case 821C (02-49) - GASKET KIT (02) - ENGINE

6T-830/6TAA-830 Emissions Certified Engine

1шт.

Cylinder Block

1шт.

All North American Models

1шт.

All European Models

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2, 376301A1

1шт.

A77855

KIT

Consists Of 1 - 16

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Page(s) 2-29, 2-29D, 2-29H

1шт.

2

J938737

GASKET

See Page(s) 2-29, 2-29D, Replaces J929253

1шт.

2

87556661

GASKET

See Page(s) 2-29, 2-29D, Replaces J938737

1шт.

2a

J938156

GASKET,0.79mm Thk

Not Used, Not Illustrated

1шт.

3

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING , See Page(s) 2-29B, 2-29D, 2-29J

1шт.

4

J938655

GASKET,1.27mm Thk

See Page(s) 2-29, Replaces J931608

1шт.

5

J902089

SEAL,0.139" Thk x 3.859" ID, -241

See Page(s) 2-25, 2-27

1шт.

6

J914301

GASKET

See Page(s) 2-81

1шт.

6T-830/6TAA-830 Emissions Certified Engine

1шт.

Cylinder Block

1шт.

All North American Models

1шт.

All European Models

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2, 376301A1

1шт.

7

J918174

GASKET,0.71mm Thk

See Page(s) 2-39, 2-39B

1шт.

8

J929011

GASKET,1.19mm Thk

See Page(s) 2-39

1шт.

9

J901798

SEALING WASHER

Not Used

1шт.

10

J939258

GASKET,1.21mm Thk

See Page(s) 3-15D, Replaces J931059

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING , See Page(s) 2-87

1шт.

12

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

See Page(s) 2-87

1шт.

13

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

See Page(s) 2-77F, 2-89, 2-91D

6шт.

14

J913994

O-RING

See Page(s) 2-29B, 2-29F, 2-29H

1шт.

15

J916284

O-RING

See Page(s) 3-19

1шт.

16

J926722

SEALING RING,Square, 2.51mm Thk x 6.27mm ID, -108

See Page(s) 3-19B

1шт.
