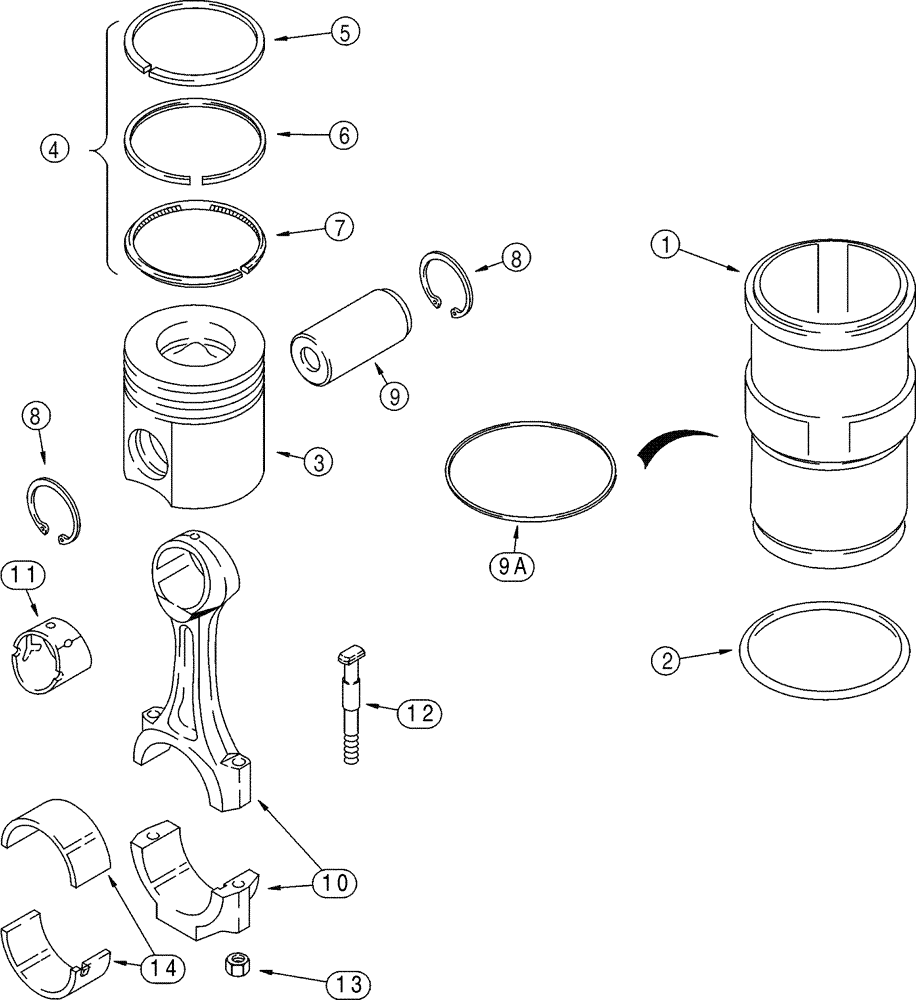

Запчасти Case 821C (02-47) - PISTONS CONNECTING RODS (02) - ENGINE

6TAA-830 Emissions Certified Engine

1шт.

European Models JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

A78038

KIT

Piston and Sleeve, Consists Of 1 - 8

6шт.

1

J948095

SLEEVE CYLINDER,114.02mm ID x 130.95mm OD x 234.12mm L

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

1шт.

J802263

PISTON & RINGS KIT

1шт.

3

NSS

NOT SOLD SEPARAT

Piston

1шт.

4

J802429

PISTON RINGS KIT

Standard, Consists Of 5 - 8

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Top

1шт.

6

NSS

NOT SOLD SEPARAT

Ring, Middle

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Bottom

1шт.

8

100-21175

SNAP RING,1.75", Int, #175

2шт.

9

J934046

PISTON PIN,45mm OD x 91mm L

6шт.

9a

J924445

SHIM,126.8mm ID x 130.5mm OD x 0.25mm Thk

(.010")

1шт.

9a

J924446

SHIM,126.8mm ID x 130.5mm OD x 0.38mm Thk

(.015")

1шт.

9a

J924447

SHIM,126.8mm ID x 130.5mm OD x 0.5mm Thk

(.020")

1шт.

9a

J924448

SHIM,0.762mm Thk

(.030")

1шт.

9a

J924449

SHIM,1.000mm Thk

(.040")

1шт.

6TAA-830 Emissions Certified Engine

1шт.

European Models JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

Connecting Rod

1шт.

J901383

CONNECTING ROD

Consists Of 10 - 13

6шт.

10

NSS

NOT SOLD SEPARAT

Rod

1шт.

11

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

1шт.

12

J928870

ROD

2шт.

13

J934864

NUT

2шт.

14

A77563

BEARING SET

Standard

6шт.

14

A77564

BEARING SET

Undersize 0,25 mm

6шт.

14

A77565

BEARING SET

Undersize 0,50 mm

6шт.

14

A77566

BEARING SET

Undersize 0,75 mm

6шт.

14

A77567

BEARING SET

Undersize 1,00 mm

6шт.
