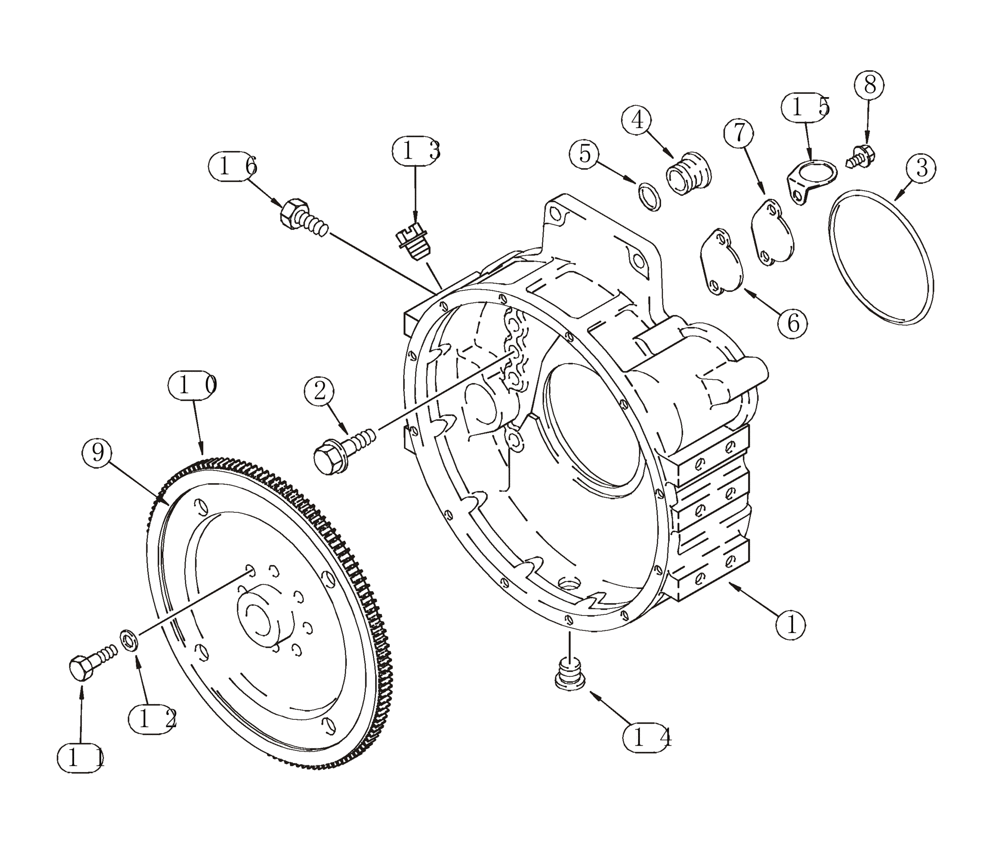

Запчасти Case 821C (02-45) - FLYWHEEL AND HOUSING (02) - ENGINE

6T-830/6TAA-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

All European Models

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2, 376301A1

1шт.

1

J908799

HOUSING

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

12шт.

3

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

4

J910248

PLUG

Includes 5

1шт.

5

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

6

J908096

GASKET

1шт.

7

J925234

PLATE

1шт.

8

J912072

SELF-TAP SCREW

M8 st x 15

2шт.

9

87581012

ENGINE FLYWHEEL

Replaces J935089; Includes 10

1шт.

10

J905427

GEAR

1шт.

11

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

12

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

13

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

14

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.

15

J928989

CLIP

1шт.

16

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

2шт.

Note: Reference 16 is not included in the engine assembly, purchase separately

1шт.

Nota : La référence 16 n'est pas incluse dans le moteur. L'acheter séparément.

1шт.

Nota: La referencia 16 no está incluida en el conjunto del motor, comprarla por separado.

1шт.
