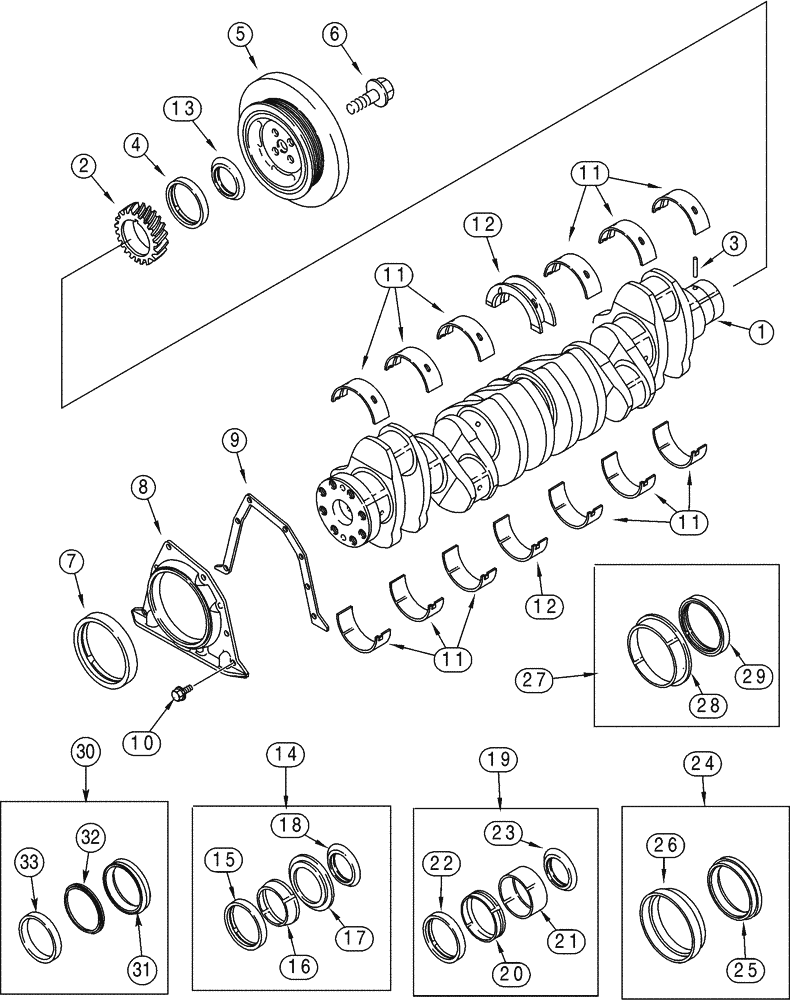

Запчасти Case 821C (02-44) - CRANKSHAFT (02) - ENGINE

6T-830/6TAA-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

All European Models

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2, 376301A1

1шт.

JR918986

REMAN-CRANKSHAFT

Remanufactured, North America Only

1шт.

JC918986

CORE-CRANKSHAFT

Use To Return Core For Credit When Using a Remanufactured Assembly

1шт.

1

J918986

CRANKSHAFT

Consists Of 2, 3

1шт.

2

J918776

GEAR

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77790, See Page(s) 2-85

1шт.

5

J925568

DAMPER,246mm OD

1шт.

6

J906733

BOLT,Hex Flg, M14 x 1.5 x 35mm, Cl 12.9

M14 x 35

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J353978, See Page(s) 2-85B

1шт.

6T-830/6TAA-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

All European Models

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2, 376301A1

1шт.

8

J933384

REAR COVER

Replaces J921042

1шт.

9

J914301

GASKET

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

8шт.

11

J945930

BEARING SET

Standard, Replaces A77711

6шт.

11

J945931

BEARING SET

Undersize 0,25 mm, Replaces A77712

6шт.

11

J945932

BEARING SET

Undersize 0,50 mm, Replaces A77713

6шт.

11

J945933

BEARING SET

Undersize 0,75 mm, Replaces A77714

6шт.

11

J945934

BEARING SET

Undersize 1,00 mm, Replaces A77715

6шт.

6T-830/6TAA-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

All European Models

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2, 376301A1

1шт.

12

J945929

THRUST BEARING

Standard, Replaces A77843

1шт.

12

J945922

THRUST BEARING

Undersize 0,25 mm, Replaces A77844

1шт.

12

J945923

THRUST BEARING

Undersize 0,50 mm, Replaces A77845

1шт.

12

J945924

THRUST BEARING

Undersize 0,75 mm, Replaces A77846

1шт.

12

J945925

THRUST BEARING

Undersize 1,00 mm, Replaces A77847

1шт.

12

J945926

THRUST BEARING

Standard, Replaces A77848

1шт.

12

J945927

THRUST BEARING

Standard, Oversize 0,50 mm, Replaces A77849

1шт.

6T-830/6TAA-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

All European Models

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2, 376301A1

1шт.

12

J945928

THRUST BEARING

Undersize 0,50 mm, Oversize 0,50 mm, Replaces A77850

1шт.

13

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

Order A77790

1шт.

14

A77790

SEAL KIT

Crankshaft, Front, Consists Of 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Tool

1шт.

18

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

19

A77808

SERVICE KIT

Crankshaft, Front, Consists Of 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

23

J924987

SHIELD,77.14mm ID x 89.38mm OD x 6.35mm Thk

1шт.

6T-830/6TAA-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

All European Models

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2, 376301A1

1шт.

24

J353978

SEAL PACKAGE

Crankshaft, Rear, Consists Of 25, 26, No Longer Available, Order J934486

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

27

A77810

SERVICE KIT

Crankshaft, Rear, Consists Of 28, 29

1шт.

28

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

29

NSS

NOT SOLD SEPARAT

Seal

1шт.

30

J934486

SERVICE KIT

Crankshaft, Rear, Consists Of 31, 32, 33, Replaces J353978

1шт.

31

NSS

NOT SOLD SEPARAT

Seal

1шт.

32

NSS

NOT SOLD SEPARAT

Tool

1шт.

33

NSS

NOT SOLD SEPARAT

Tool

1шт.
