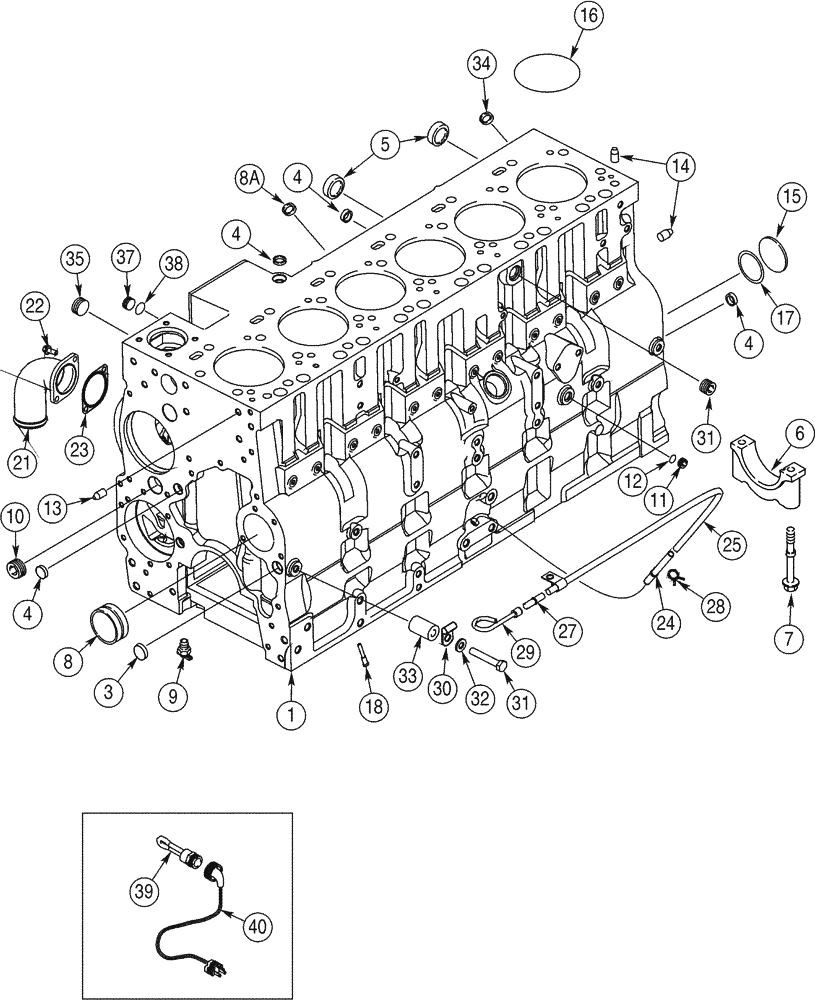

Запчасти Case 821C (02-43) - CYLINDER BLOCK (02) - ENGINE
№
Артикул
Название
Примечание
Количество
.
6TAA-830 Emissions Certified Engine
1шт.
.
European Models JEE0126216-
1шт.
.
Models With Engine No. 376301A1
1шт.
376301A1
Complete, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe
1шт.
450560A1
BASIC ENGINE
1шт.
Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger
1шт.
450560A1R
REMAN-BASIC ENGINE
Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger
1шт.
450560A1C
CORE-BASIC ENGINE
Return Number
1шт.
A78041
CYLINDER BLOCK
Short, Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Consists Of 1 - 8
1шт.
.
6TAA-830 Emissions Certified Engine
1шт.
.
European Models JEE0126216-
1шт.
.
Models With Engine No. 376301A1
1шт.
1
J939313
BASIC BLOCK
Stripped, Also Order 449019A1, Consists Of 3 - 8
1шт.
3
A77586
PLUG
28.9 mm
2шт.
4
A77506
PLUG
21 mm
4шт.
5
J905401
PLUG
35 mm
4шт.
6
J936058
BEARING CAP
7шт.
7
J916369
FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9
14шт.
8a
J920706
PLUG
22 mm
1шт.
449019A1
PACKAGE,SERVICE
Includes 9 - 20
1шт.
9
217-103
COCK, DRAIN
1/4" PT
1шт.
10
A77533
PLUG
1 PT
1шт.
11
J678923
PLUG,M10 x 1
10 mm, Includes 12
6шт.
12
637-72081
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
31
827-10060
BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9
1шт.
.
6TAA-830 Emissions Certified Engine
1шт.
.
European Models JEE0126216-
1шт.
.
Models With Engine No. 376301A1
1шт.
15
41-3044
PLUG,Exp, 2 3/4"
(70 mm)
1шт.
18
J928031
NOZZLE,8.5mm OD x 30mm L
12шт.
19
J678921
PLUG
14 mm, Includes 20, One Used In This Application, Not Illustrated
2шт.
20
J678912
O-RING,2.2mm Thk x 11.3mm ID
1шт.
21
J944141
CONNECTION
Water Inlet
1шт.
22
845-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
2шт.
23
J945603
GASKET,1.65mm Thk
1шт.
24
A77645
TUBE
1шт.
25
J285703
TUBE,12 mm OD x 787.5 mm L
1шт.
26
A77508
CLAMP
7/16" ID, Not Used In This Application
1шт.
27
J905802
FITTING,9.53 mm OD x 39 mm L
1шт.
28
214-1308
HOSE CLAMP,#8, 1/2", Spring
1шт.
29
J945613
DIPSTICK
1шт.
.
6TAA-830 Emissions Certified Engine
1шт.
.
European Models JEE0126216-
1шт.
.
Models With Engine No. 376301A1
1шт.
30
515-2495
CLAMP,3/8", Insul, 7/16" Bolt
1шт.
33
90-7181T1
SPACER
1шт.
34
J943808
PLUG
22 mm
1шт.
35
A77505
PLUG
3/4 PT
1шт.
36
J905401
PLUG
35 mm
1шт.
37
313244A1
PLUG
22 mm, Includes 38
2шт.
38
313246A1
O-RING,2.2mm Thk x 19.3mm ID
19 ID x 2,2 mm
1шт.
.
Engine Block Heater
1шт.
.
240 Volt
1шт.
310494A1
KIT
240V/1000W, Consists Of 39, 40
1шт.
39
NSS
NOT SOLD SEPARAT
Element
1шт.
40
J913112
WIRE HARNESS
305 mm (12")
1шт.
.
Note: Items 30 - 33 are not included in the engine assembly. Purchase separatel
1шт.
.
Nota : Les articles 30 -33 ne sont pas inclus dans le moteur. Les acheter séparément.
1шт.
.
Nota: Los artículos 30 -33 no están incluidos en el conjunto del motor. Comprarlos por separado
1шт.
.
6TAA-830 Emissions Certified Engine
1шт.
.
European Models JEE0126216-
1шт.
.
Models With Engine No. 376301A1
1шт.
.
Repair Kit
1шт.
A78039
ENGINE OVERHAUL KIT
Engine Block, Not Illustrated, Consists Of 41 - 48
1шт.
41
A78038
KIT
See Page(s) 2-91D
6шт.
43
J934046
PISTON PIN,45mm OD x 91mm L
See Page(s) 2-91D
6шт.
48
A77999
GASKET KIT
See Page(s) 2-47D
1шт.
