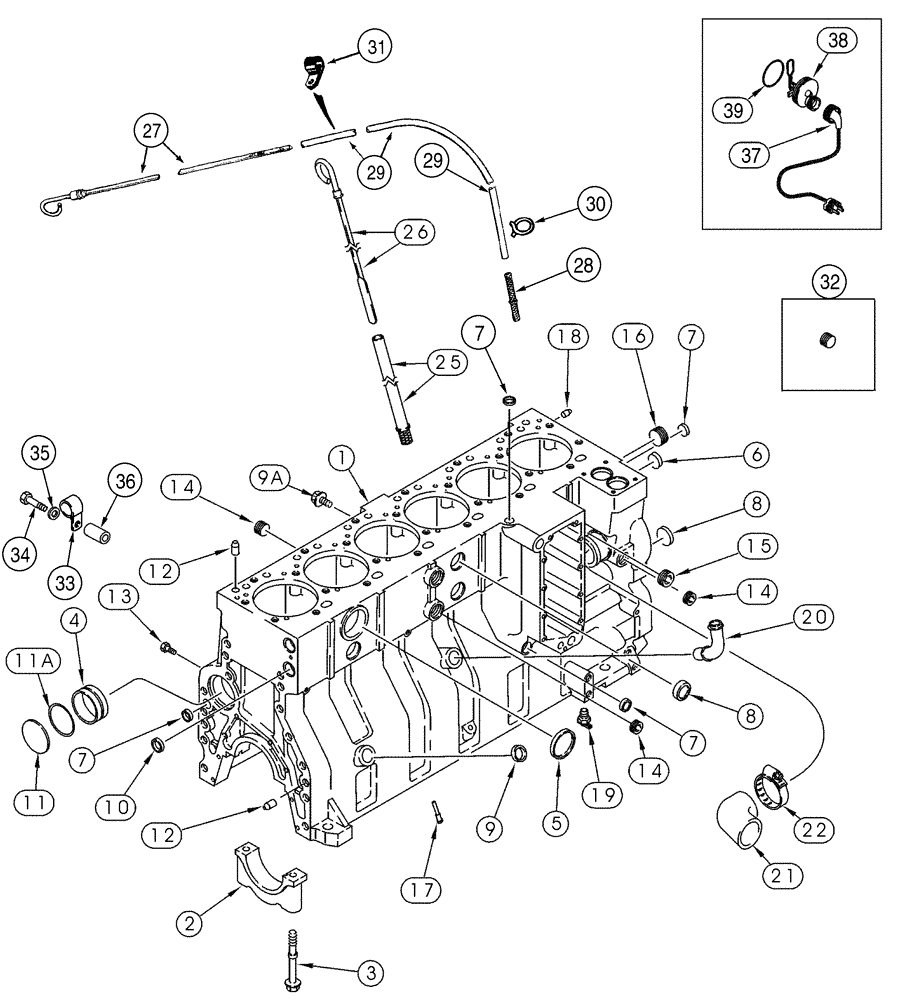

Запчасти Case 821C (02-41) - CYLINDER BLOCK (02) - ENGINE

.

6T-830 Emissions Certified Engine

1шт.

.

All North American Models

1шт.

295271A1

ENGINE

Complete Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 199985A1, -JEE0126215

1шт.

436664A2

Complete Engine, Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 199985A1, JEE0126216-

1шт.

.

6T-830 Emissions Certified Engine

1шт.

.

All North American Models

1шт.

199985A1

BASIC ENGINE

1шт.

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger

1шт.

47466010R

REMAN-BASIC ENGINE

Includes All Parts Except Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner and Turbocharger

1шт.

47466010C

CORE-BASIC ENGINE

Return Number

1шт.

JR934600

ENGINE, EXCHANGE

ENGINE (EXCHANGE) , Short, Remanufactured, North America Only

1шт.

J934600

SKELETON ENGINE

Short, Includes Stripped Block, Pistons, Connecting Rods And Bearings, Crankshaft And Bearings, Consists Of 1 - 19

1шт.

.

6T-830 Emissions Certified Engine

1шт.

.

All North American Models

1шт.

1

J934900

SHORT ENGINE

Stripped, Consists Of 2 - 8

1шт.

2

J936058

BEARING CAP

Replaces J917313

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

14шт.

4

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

See Page(s) 2-59, Replaces J943199

7шт.

5

A77782

PLUG

58 mm

1шт.

6

A77586

PLUG

28.9 mm

1шт.

7

A77506

PLUG

21 mm

4шт.

8

J905401

PLUG

35 mm

4шт.

9

J920706

PLUG

22 mm, Not Used

1шт.

10

A77530

PLUG

30 mm, Not Used

2шт.

11

41-3044

PLUG,Exp, 2 3/4"

(70 mm)

1шт.

11a

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

66 mm ID

1шт.

12

J901846

PIN,12.01mm OD x 24mm L

4шт.

13

J906619

PLUG,1/8" - 27

1/8 PT

6шт.

14

A77429

PLUG

1/2 PT

4шт.

15

A77505

PLUG

3/4 PT

2шт.

16

A77533

PLUG

1 PT

1шт.

17

J928031

NOZZLE,8.5mm OD x 30mm L

12шт.

18

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

19

217-103

COCK, DRAIN

1/4" PT

1шт.

20

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

Not Used

1шт.

21

J920762

ELBOW

79 mm (3-1/8 in)

1шт.

22

J918521

HOSE CLAMP,59mm - 83mm

1-13/16 - 2-3/4

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

-JEE0126215

1шт.

26

J908773

DIPSTICK,485.3mm L

-JEE0126215

1шт.

27

J915026

DIPSTICK

JEE0126216-

1шт.

.

6T-830 Emissions Certified Engine

1шт.

.

All North American Models

1шт.

28

A77645

TUBE

JEE0126216-

1шт.

29

J285703

TUBE,12 mm OD x 787.5 mm L

JEE0126216-

1шт.

30

214-1308

HOSE CLAMP,#8, 1/2", Spring

JEE0126216-

1шт.

31

A77508

CLAMP

7/16" ID, JEE0126216-, Not Used In This Application

1шт.

32

J900955

PLUG

10 mm OD, JEE0126216-

1шт.

33

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

JEE0126216-

1шт.

34

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

JEE0126216-

1шт.

35

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

JEE0126216-

1шт.

36

90-7181T1

SPACER

JEE0126216-

1шт.

.

Engine Block Heater

1шт.

196804A1

KIT

120V, Consists Of 37 - 39

1шт.

37

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

38

NSS

NOT SOLD SEPARAT

Element

1шт.

39

J910517

O-RING

1шт.

Items 33 - 36 are not included in the engine assembly. Purchase separately

1шт.

.

6T-830 Emissions Certified Engine

1шт.

.

All North American Models

1шт.

.

Repair Kit

1шт.

A78017

REPAIR KIT

Engine Block, Not Illustrated, Consists Of 40 - 47

1шт.

40

A77912

PACKAGE, REPAIR

See Page(s) 2-89

6шт.

41

A77563

BEARING SET

See Page(s) 2-91B

6шт.

42

J934046

PISTON PIN,45mm OD x 91mm L

See Page(s) 2-89

6шт.

43

J945930

BEARING SET

See Page(s) 2-81, Replaces A77711

6шт.

44

J945929

THRUST BEARING

See Page(s) 2-83, Replaces A77843

1шт.

45

A77976

GASKET KIT

Not Used In This Application

1шт.

46

J938267

CYLINDER HEAD GASKET,2.01mm Thk

See Page(s) 2-49, 2-57B, Replaces J931019, J935585

1шт.

47

A77999

GASKET KIT

See Page(s) 2-41, 2-43, Replaces A77679

1шт.
