Запчасти Case 821C (02-38) - CYLINDER HEAD VALVE MECHANISM (02) - ENGINE

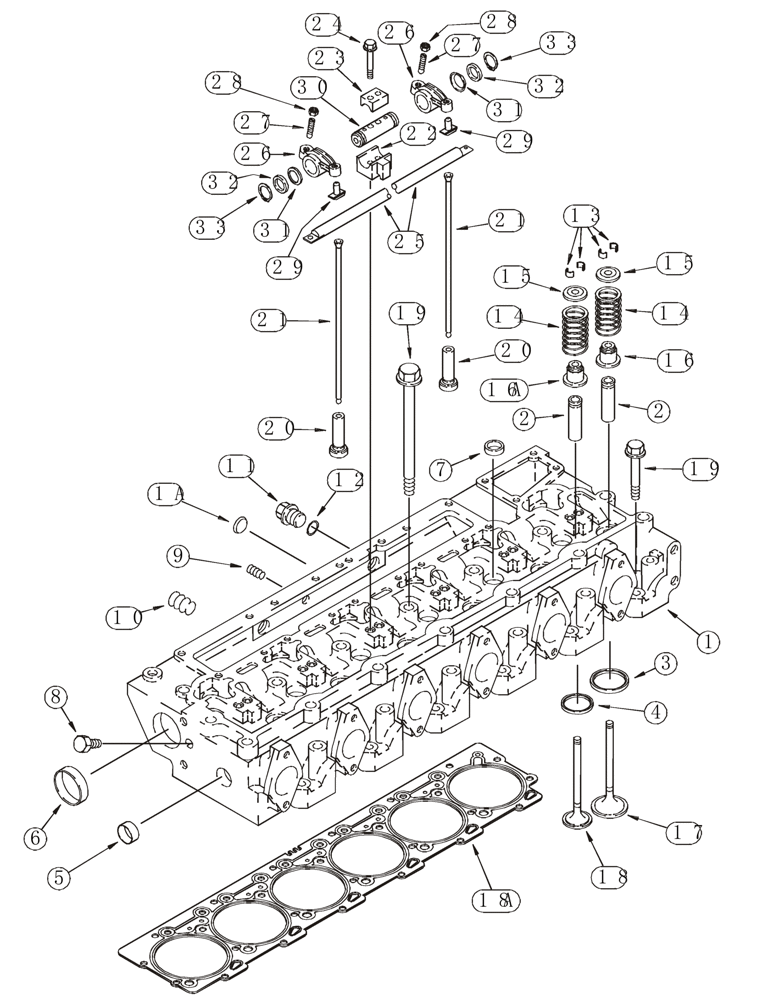

Схема запчастей Case 821C - (02-38) - CYLINDER HEAD VALVE MECHANISM (02) - ENGINE
17
8
14
21
1a
7
20
15
29
23
15
28
25
33
24
16
31
30
1
27
5
2
27
32
21
2
29
16
18
11
13
31
4
6
9
28
18
20
a
19
32
22
19
a
26
10
14
3
26
12
33

Артикул

Название

Примечание

Количество

6T-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

European Models -JEE0126215

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2

1шт.

JR936280

REMAN-CYLINDER HEAD

Remanufactured, North America Only, Replaces JR925642

1шт.

JC936280

REMAN-CYLINDER HEAD

Use To Return Core For Credit When Using a Remanufactured Assembly, Replaces JC916464

1шт.

J936280

HEAD

Cylinder, With Valves, Consists Of 1 - 18, Replaces J925642

1шт.

6T-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

European Models -JEE0126215

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2

1шт.

1

J936264

HEAD

Cylinder, Without Valves, Consists Of 1A - 7, Replaces J920031

1шт.

1a

J912900

PLUG

24 mm

1шт.

2

J923564

VALVE GUIDE

12шт.

3

J924582

INSERT

Intake

6шт.

3

J925468

SEAT, VALVE

0,25 mm, Intake, Oversize

6шт.

3

J925470

SEAT, VALVE

0,50 mm, Intake, Oversize

6шт.

4

J929005

INSERT

Exhaust

6шт.

4

J929006

INSERT

0,25 mm, Exhaust, Oversize

6шт.

4

J929007

INSERT

0,50 mm, Exhaust, Oversize

6шт.

6T-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

European Models -JEE0126215

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2

1шт.

5

J920443

PLUG

30 mm

1шт.

6

A77782

PLUG

58 mm

2шт.

7

41-1616

PLUG,Cup, 1", Stainless

5шт.

8

A77534

PLUG

1/16 PT

1шт.

9

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

10

A77429

PLUG

1/2 PT

1шт.

11

J924148

PLUG,M22 x 1.5

M22

2шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

2шт.

13

J901177

VALVE

24шт.

14

J906412

VALVE SPRING

12шт.

15

J912976

RETAINER

12шт.

16

J915707

SEAL

Valve, If Used

6шт.

16a

J927642

SEAL

Exhaust, Valve, Replaces J919038

6-12шт.

17

J924492

STD INLET VALVE

STD ENGINE INLET VALVE

6шт.

18

J921444

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

6шт.

6T-830 Emissions Certified Engine

1шт.

All North American Models

1шт.

European Models -JEE0126215

1шт.

Models With Engine No. 295271A1, 296653A1, 436664A2

1шт.

18a

J938267

CYLINDER HEAD GASKET,2.01mm Thk

See Page(s) 2-49, Replaces J931019, J935585

1шт.

19

J917728

BOLT

160 mm

14шт.

19

J917729

BOLT,Flng, M14 x 80mm

80 mm

12шт.

20

J931623

TAPPET

12шт.

21

J905194

PUSH ROD

12шт.

22

J905870

SUPPORT

6шт.

23

J901693

CLAMP

6шт.

24

868-10065

12 PT SCREW,M10 x 65mm, Cl 12.9

12шт.

25

J919677

TUBE

1шт.

26

J901717

ROCKER

Includes 27 - 29

12шт.

27

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

1шт.

28

A77902

NUT

3/8 - 24 NF

1шт.

29

NSS

NOT SOLD SEPARAT

Insert

1шт.

30

J919435

SHAFT

6шт.

31

J906100

SPRING CUP

12шт.

32

J907206

WASHER,22.5mm ID x 30mm OD x 1mm Thk

12шт.

33

100-1187

SNAP RING,#87, Ext

12шт.

Выбрано товаров: 60
