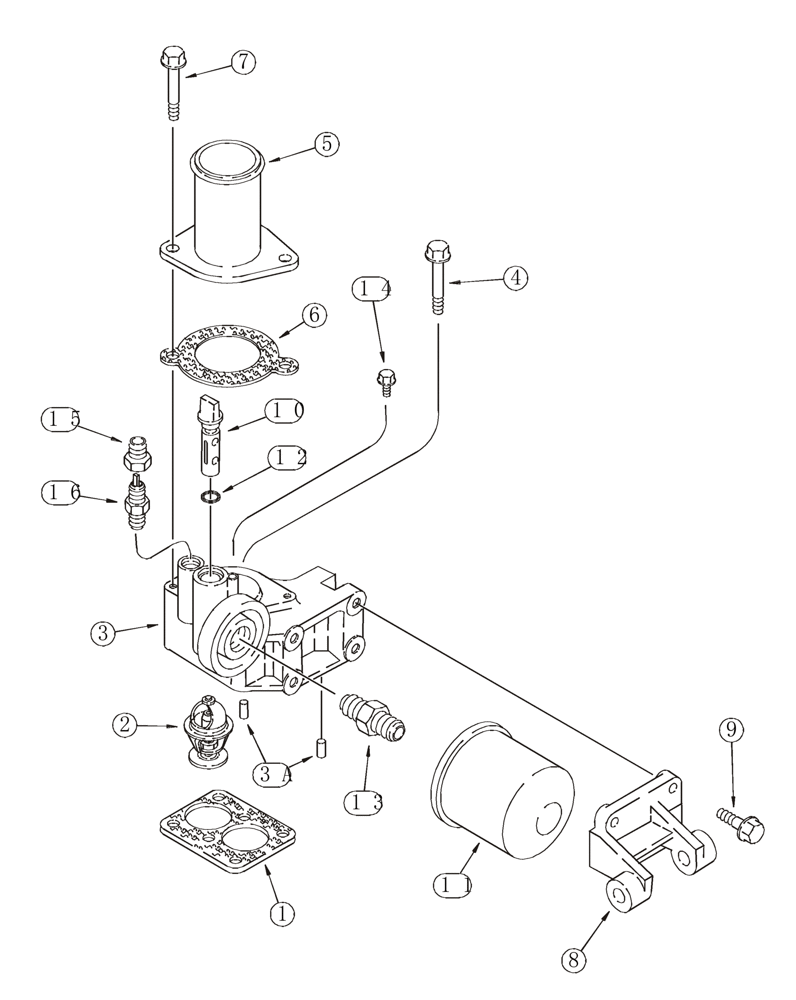

Запчасти Case 821C (02-35) - HOUSING, THERMOSTAT FILTER, WATER (02) - ENGINE

6T-830 Emissions Certified Engine

1шт.

North American Models -JEE0126215

1шт.

European Models -JEE0126215

1шт.

Models With Engine No. 295271A1, 296653A1

1шт.

1

J914310

GASKET,0.8mm Thk

1шт.

2

J928639

THERMOSTAT

2шт.

J926509

HOUSING,Thermostat

Includes 3, 3A

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

3a

180811A1

ROLL PIN

2шт.

4

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

2шт.

5

J912800

CONNECTION

1шт.

6

J918779

GASKET,1.19mm Thk

1шт.

7

845-8095

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

2шт.

8

J918544

SUPPORT

1шт.

9

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

10

294926A1

SHUT-OFF VALVE

1шт.

11

J100304

FILTER

Replaces A77544

1шт.

12

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

13

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

1шт.

14

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

15

J911925

COUPLING

1шт.

16

J911901

VALVE, CHECK

1шт.

6T-830 Emissions Certified Engine

1шт.

North American Models JEE0126216-

1шт.

Models With Engine No. 436664A2

1шт.

1

J914310

GASKET,0.8mm Thk

1шт.

2

J928639

THERMOSTAT

2шт.

J926509

HOUSING,Thermostat

Includes 3, 3A

1шт.

3

NSS

NOT SOLD SEPARAT

Housing

1шт.

3a

180811A1

ROLL PIN

2шт.

4

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

2шт.

5

J912800

CONNECTION

1шт.

6

J918779

GASKET,1.19mm Thk

1шт.

7

845-8095

BOLT,Hvy Hex, M8 x 95mm, Cl 8.8

2шт.

8

J929418

SUPPORT

1шт.

9

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

4шт.

10

294926A1

SHUT-OFF VALVE

1шт.

11

J100304

FILTER

Replaces A77544

1шт.

12

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

13

A77623

ADAPTER,3/4" - 10 x 11/16" - 16

1шт.

14

845-6010

BOLT,Hvy Hex, M6 x 10mm, Cl 8.8

1шт.

15

J911925

COUPLING

1шт.

16

J911901

VALVE, CHECK

1шт.
