Запчасти Case 821C (02-34) - CYLINDER HEAD COVER (02) - ENGINE

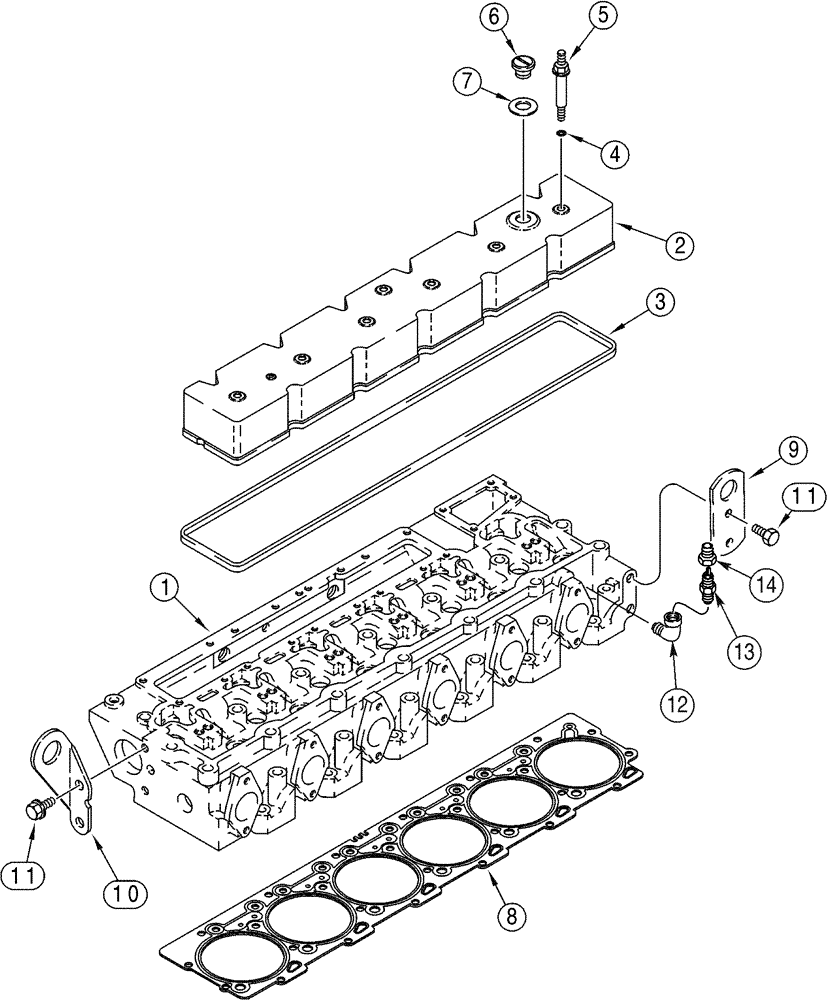

Схема запчастей Case 821C - (02-34) - CYLINDER HEAD COVER (02) - ENGINE
1
9
11
11
4
8
6
7
12
3
2
13
10
14
5

Артикул

Название

Примечание

Количество

6TAA-830 Emissions Certified Engine

1шт.

European Models JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

1

REF

INSTRUCTION

Head, Cylinder, See Page(s) 2-57D

1шт.

2

J930903

VALVE COVER

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

1шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

6шт.

5

J922639

STUD

6шт.

6

J902468

FILLER CAP,Male

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

1шт.

8

J938267

CYLINDER HEAD GASKET,2.01mm Thk

1шт.

8

J935586

CYLINDER HEAD GASKET,1.91mm Thk

0.25 mm

1шт.

8

J935587

CYLINDER HEAD GASKET,2.38mm Thk

0.50 mm

1шт.

9

J907861

LIFTING EYE

1шт.

10

J906440

LIFTING EYE

1шт.

11

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

4шт.

12

105422

ELBOW UNION

Union Elbow

1шт.

13

J911901

VALVE, CHECK

1шт.

14

J911925

COUPLING

1шт.

Выбрано товаров: 19
