Запчасти Case 821C (09-66) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS

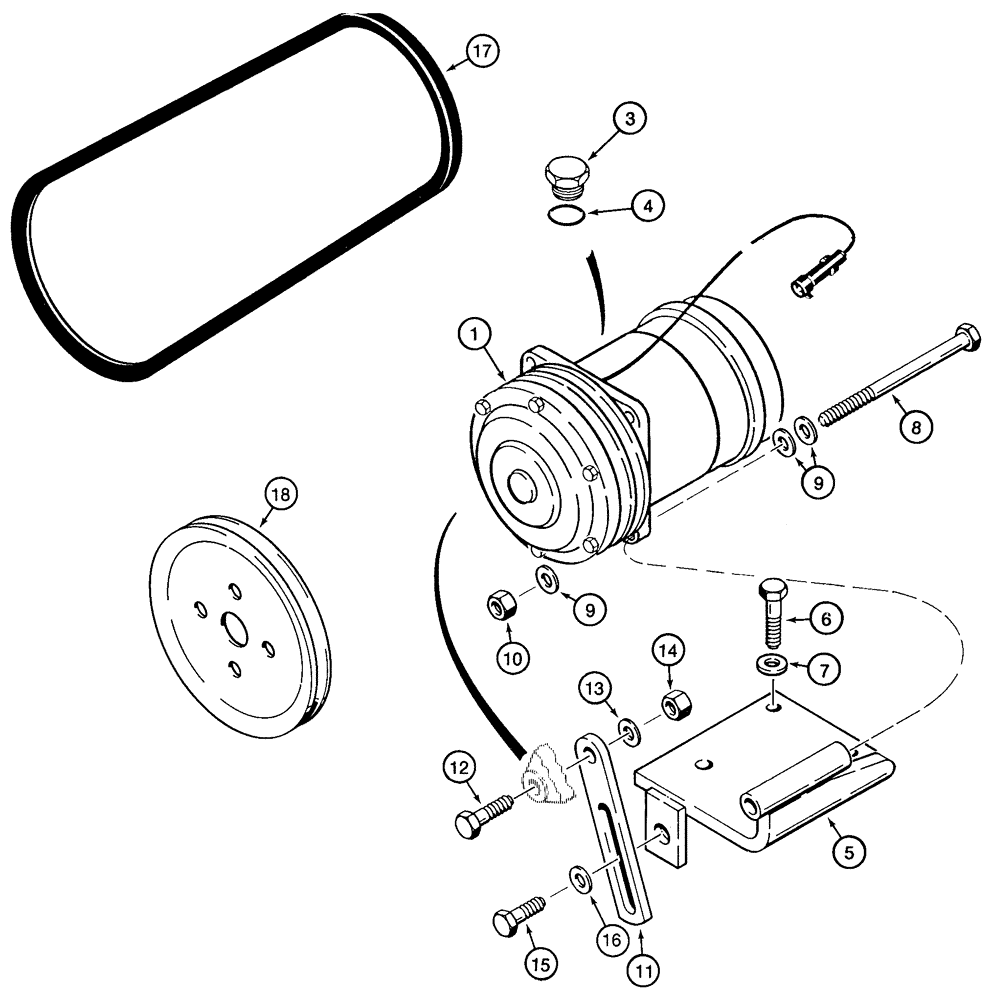

Схема запчастей Case 821C - (09-66) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS
14
3
15
5
7
17
12
1
9
13
9
11
8
6
16
18
4
10

Артикул

Название

Примечание

Количество

1990760C1

COMPRESSOR

Air Conditioning, Consists Of 1 - 4

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

821C S/N JEE0155000 & BEFORE, Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Compressor, Component Parts Not Serviced Separately

1шт.

2

138886A1

CLUTCH

Compressor, Not Shown

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

84715C1

BRACKET

Compressor Mounting

1шт.

6

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

8

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

11

84716C1

SUPPORT

Adjusting

1шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

R50426

BELT

Compressor Drive

1шт.

18

A189155

PULLEY

Compressor Drive

1шт.

15

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

3шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

1шт.

Выбрано товаров: 21
