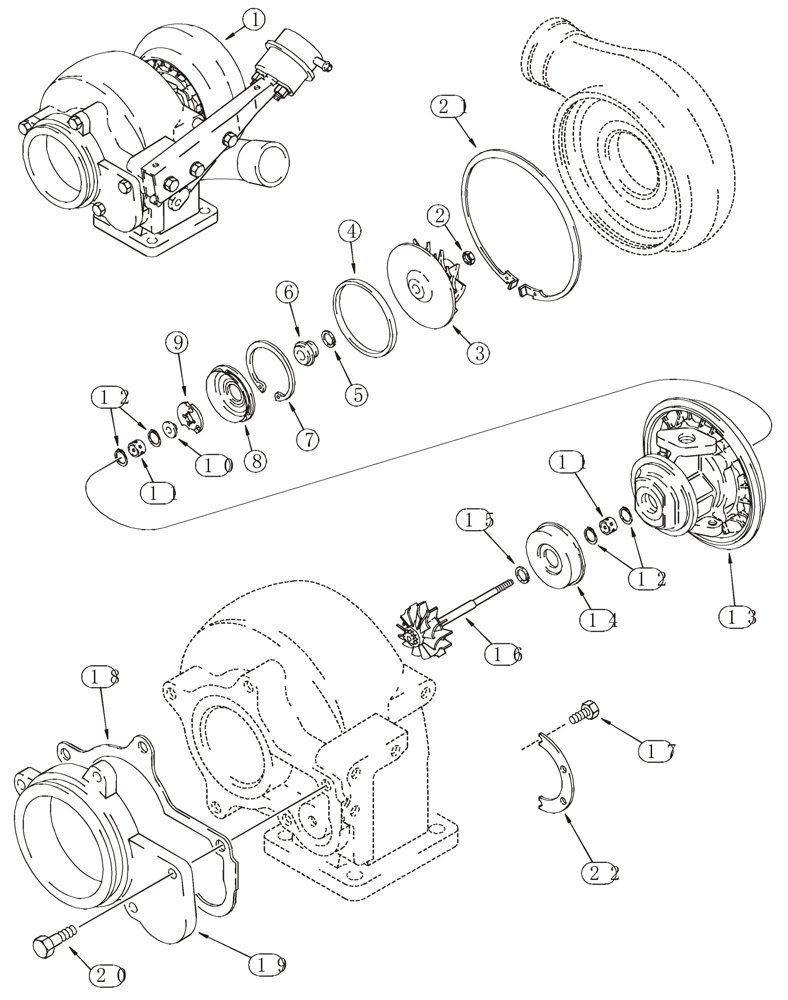

Запчасти Case 821C (02-25) - TURBOCHARGER ASSY (02) - ENGINE

.

6T-830 Emissions Certified Engine

1шт.

.

All North American Models

1шт.

.

European Models -JEE0126215

1шт.

.

Models With Engine No. 295271A1, 296653A1, 436664A2

1шт.

JR802651

REMAN-TURBOCHARGER

Remanufactured, Replaces JR535635

1шт.

JC535635

CORE-TURBOCHARGER

Return Part Number Use To Return Core For Credit When Using a Remanufactured Assembly

1шт.

1

J802651

TURBOCHARGER

Consists Of 2 - 22, Also Includes 1 - 12, See Page(s) 2-37, Replaces J535635

1шт.

.

6T-830 Emissions Certified Engine

1шт.

.

All North American Models

1шт.

.

European Models -JEE0126215

1шт.

.

Models With Engine No. 295271A1, 296653A1, 436664A2

1шт.

J535324

CARTRIDGE

Consists Of 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Nut

1шт.

3

NSS

NOT SOLD SEPARAT

Impeller

1шт.

4

NSS

NOT SOLD SEPARAT

Seal

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Slinger

1шт.

7

NSS

NOT SOLD SEPARAT

Ring

1шт.

8

NSS

NOT SOLD SEPARAT

Baffle

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Thrust

1шт.

10

NSS

NOT SOLD SEPARAT

Collar

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Journal

2шт.

12

NSS

NOT SOLD SEPARAT

Ring

4шт.

13

NSS

NOT SOLD SEPARAT

Housing

1шт.

J575169

REPAIR KIT

Overhaul, Consists Of 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.

.

6T-830 Emissions Certified Engine

1шт.

.

All North American Models

1шт.

.

European Models -JEE0126215

1шт.

.

Models With Engine No. 295271A1, 296653A1, 436664A2

1шт.

14

NSS

NOT SOLD SEPARAT

Shield

1шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

Rotor And Shaft

1шт.

17

J759917

SET SCREW

6шт.

18

J535243

GASKET,0.25mm Thk

1шт.

19

J528010

ADAPTER

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

21

J533163

SNAP RING

1шт.

22

J534309

PLATE

2шт.

J575169

REPAIR KIT

Overhaul, Consists Of 2, 4, 5, 7, 8, 9, 11, 12, 15, 17

1шт.
