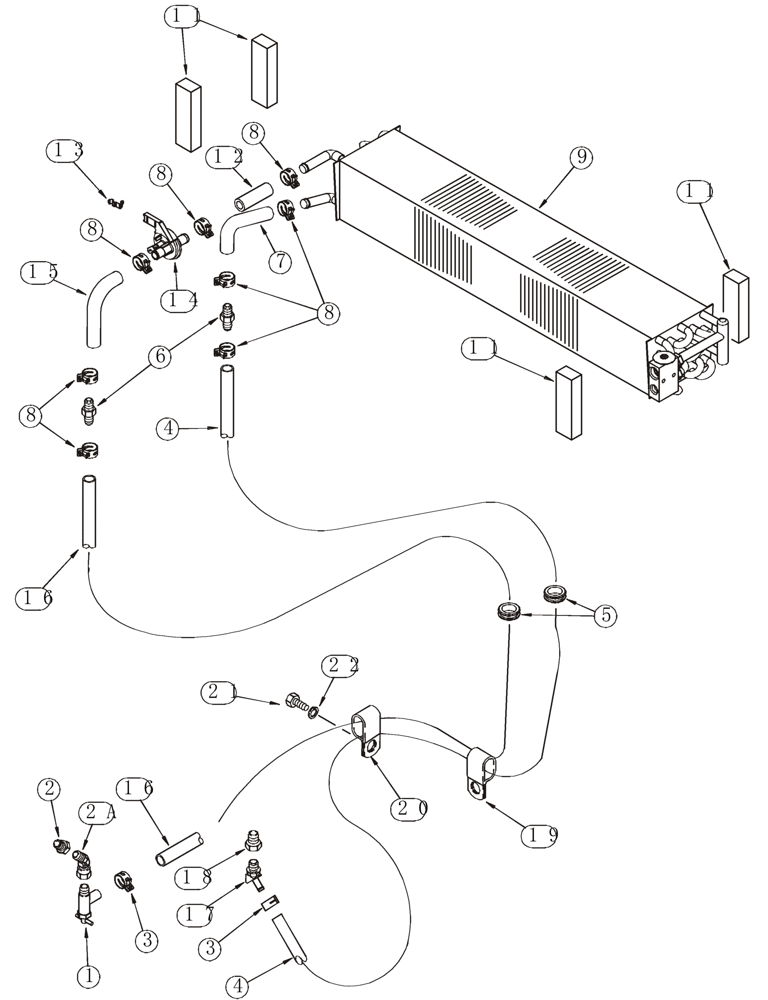

Запчасти Case 821C (09-63) - HEATING SYSTEM (09) - CHASSIS

1

301803R1

SHUT-OFF VALVE

1шт.

2

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1шт.

2a

217-1087

ELBOW,45 Degree, 3/8"-18 Female x 3/8"-18 Male

Europe Only

1шт.

3

1954736C1

HOSE CLAMP,#24

2шт.

4

1327782C2

LARGE HOSE,15.50 mm ID x 3302.00 mm

HOSE,LARGE Supply, With white stripe, Cut from 97252CX

1шт.

5

L116914

GROMMET

Heater Hoses

2шт.

6

1301342C1

FITTING

2шт.

7

233213A1

HEATER HOSE,15.00 mm ID x 160.00 mm

Supply, Special

1шт.

8

1954736C1

HOSE CLAMP,#24

8шт.

9

233424A1

HEATER

Assembly, Heating and Air Conditioning, See Page(s) 9-185, 6 - 9

1шт.

10

234325A1

HEATER

Models With Heater Only, Not Shown

1шт.

11

1340075C2

SEAL

130 mm (5-1/8 in), Core End, Cut From 1999750C1

4шт.

12

R54967

HEATER HOSE,15.50 mm ID x 70.00 mm

Return, Cut from 97252CX

1шт.

13

1954626C1

SPRING CLIP

Heater Cable Retaining

1шт.

14

1331087C1

HEATER VALVE

1шт.

15

233224A1

HEATER HOSE,15.00 mm ID x 174.00 mm

Return, Special

1шт.

16

1327781C2

HOSE,15.50 mm ID x 2921.00 mm

Return, Cut from 97252CX

1шт.

17

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

18

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

3/4 x 1/2 fem, If Used

1шт.

19

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

20

L111928

CLAMP

Double Tube

1шт.

21

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

Replaces 614-12020

1шт.

22

892-11012

LOCK WASHER,M12

1шт.
