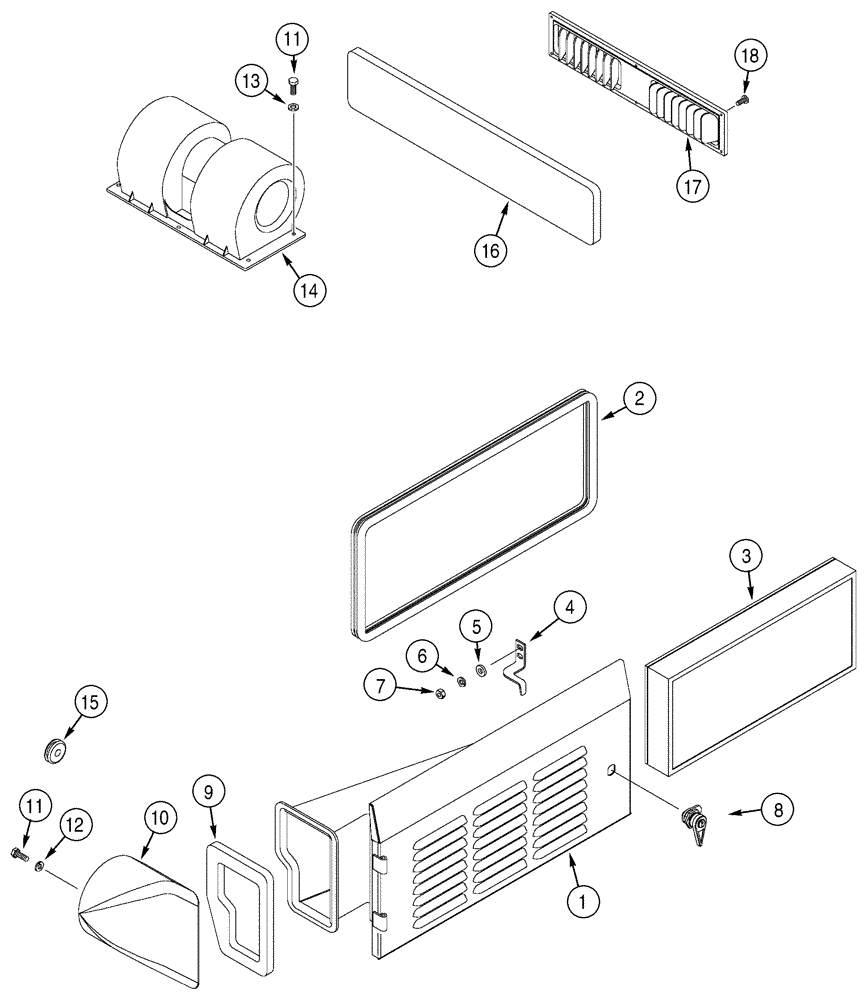

Запчасти Case 821C (09-55) - CAB HEATER AND AIR CONDITIONING FILTERS (09) - CHASSIS

1

228359A2

DOOR ASSY.

Filter, Replaces 228359A1

1шт.

2

238856A2

DOOR SEAL,1786mm L

1786 mm (70-5/16 in), Replaces 238856A1

1шт.

3

330014A1

CAB FILTER

Fresh Air

1шт.

4

221104A1

LATCH

Filter Door

1шт.

5

896-16006

WASHER,6.4mm ID x 14.5mm OD x 2.5mm Thk

2шт.

6

892-11006

LOCK WASHER,M6

2шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

2шт.

8

255065A1

LATCH

Filter Door

1шт.

9

232508A1

FOAM INSULATION

Elbow to Filter Door

1шт.

10

192391A1

ELBOW

Air Supply

1шт.

11

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

8шт.

12

892-11006

LOCK WASHER,M6

4шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

360157A1

BLOWER ASSY.,24V - 3 Spd

Cab Air, Component Parts Not Serviced Separately, Replaces 234794A1

1шт.

15

1546465C1

GROMMET

1шт.

16

257463A1

FILTER

Air Recirculation

1шт.

17

1331102C2

DIFFUSER

Air Recirculation, If Used

1шт.

18

239111A1

SCREW,Cross Pan Hd, M4 x 18mm

Replaces 1535651C1, Used with 17

6шт.
