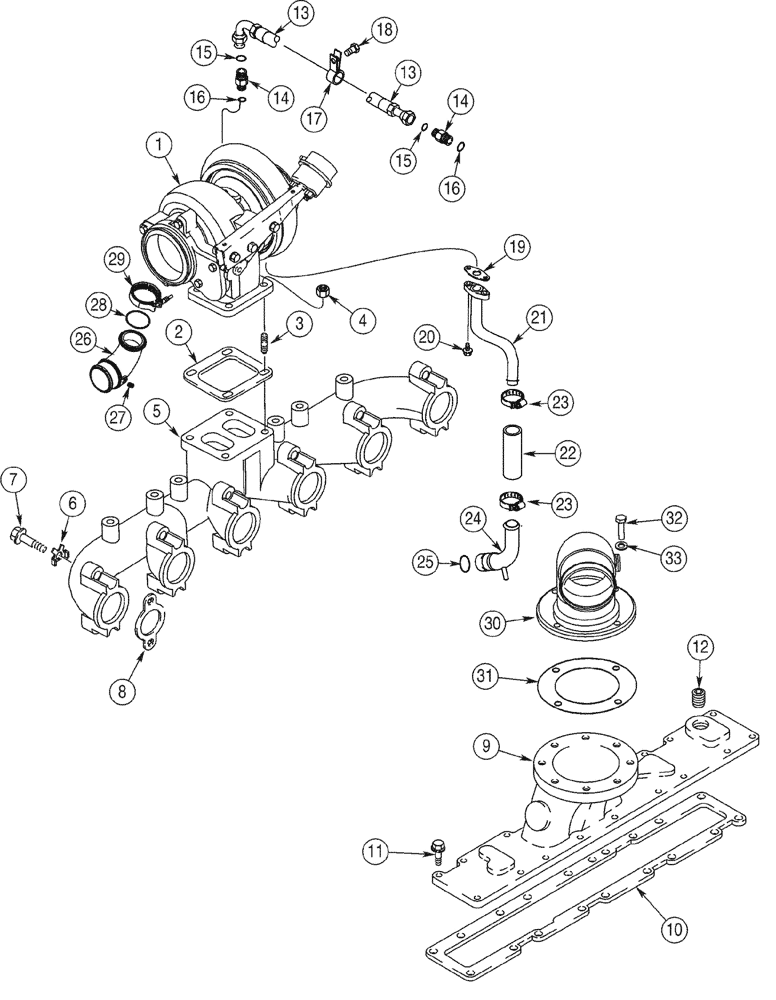

Запчасти Case 821C (02-24) - TURBOCHARGER SYSTEM MANIFOLDS (02) - ENGINE

.

NSS

NOT SOLD SEPARAT

6TAA-830 Emissions Certified Engine

1шт.

.

NSS

NOT SOLD SEPARAT

European Models JEE0126216-

1шт.

.

NSS

NOT SOLD SEPARAT

Models With Engine No. 376301A1

1шт.

1

A78040

TURBOCHARGER

Turbocharger, See Page(s) 2-37B

1шт.

.

A78040R

REMAN-TURBOCHARGER

821C (S/N JEE0155000 & BEFORE)

1шт.

.

A78040C

CORE-TURBOCHARGER

Return Number

1шт.

2

J755843

GASKET,0.5mm Thk

1шт.

3

J818823

STUD

4шт.

4

J818824

FLANGE NUT

M10

4шт.

5

J932180

MANIFOLD

Exhaust

1шт.

6

J914708

LOCKING PLATE

12шт.

7

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

12шт.

8

J932063

MANIFOLD GASKET,1.78mm Thk

6шт.

9

J926044

COVER

Intake

1шт.

10

J936993

MANIFOLD GASKET,0.76mm Thk

1шт.

11

J938036

BOLT,Flng, M8 x 1.25 x 30mm, Cl 10.9

M8 x 30

18шт.

12

A77429

PLUG

1/2 PT

1шт.

13

J282158

FLEXIBLE HOSE

1шт.

14

J922789

HYD CONNECTOR

Includes 15, 16

2шт.

15

J678603

O-RING,2.2mm Thk x 9.3mm ID

1шт.

16

313262A1

O-RING,0.07" Thk x 0.364" ID

(M9.2 ID x 1.7 Thk)

1шт.

17

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

18

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

19

J937706

GASKET,0.79mm Thk

1шт.

.

NSS

NOT SOLD SEPARAT

6TAA-830 Emissions Certified Engine

1шт.

.

NSS

NOT SOLD SEPARAT

European Models JEE0126216-

1шт.

.

NSS

NOT SOLD SEPARAT

Models With Engine No. 376301A1

1шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

21

J939336

TUBE

1шт.

22

J286499

HOSE

1шт.

23

214-1512

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm, W/ Liner

2шт.

24

J948079

TUBE,0.875" OD

If Used

1шт.

24

87437056

TUBE,.875" OD

If Used

1шт.

25

238-7018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

26

J918685

PIPE

1шт.

27

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

1шт.

28

J883284

O-RING,0.07" Thk x 2.364" ID, -36

1шт.

29

J069053

CLAMP,66.54mm ID

1шт.

30

413373A1

ELBOW-CONNECTION

ELBOW-CONECTION , To Air To Charge Air Cooler

1шт.

31

J917892

GASKET,0.79mm Thk

1шт.

32

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

33

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.

.

NSS

NOT SOLD SEPARAT

Note: Items 26 - 33 are not included in the engine assembly. Purchase separatel

1шт.

.

NSS

NOT SOLD SEPARAT

Nota : Les articles 26 - 33 ne sont pas inclus dans le moteur. Les acheter séparément.

1шт.

.

NSS

NOT SOLD SEPARAT

Nota: Los artículos 26 - 33 no están incluidos en el conjunto del motor. Comprarlos por separado

1шт.
