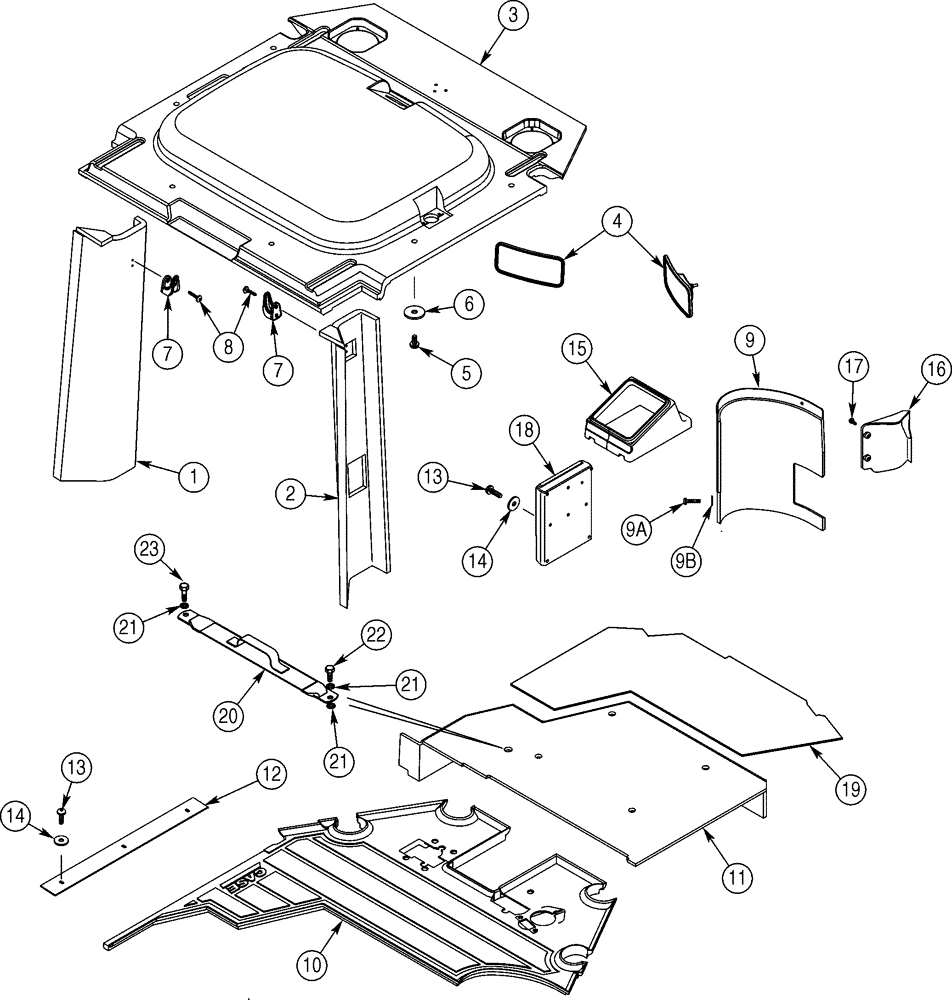

Запчасти Case 821C (09-50) - CAB INTERIOR (09) - CHASSIS

1

231862A1

COVER

Rear Post, Left Hand, Gray

1шт.

1

399214A1

COVER

Rear Post, Left Hand, Tan

1шт.

2

231863A1

COVER

Rear Post, Right Hand, Gray

1шт.

2

399215A1

COVER

Rear Post, Right Hand, Tan

1шт.

3

253321A2

PADDING

Cab Roof, Gray

1шт.

3

399216A1

ROOF LINING

Cab Roof, Tan

1шт.

4

A177462

MIRROR

Rear View

2шт.

5

1270742C1

PREV TORQUE BOLT,Cross Rec Pan Hd, M6 x 1 x 12mm

6шт.

6

1990503C1

WASHER

6шт.

7

114549A1

COAT HOOK

2шт.

8

1276118C1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

4шт.

9

197494A1

PADDING

Tower, Gray

1шт.

9

399186A1

PAD

Tower, Tan

1шт.

9a

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

Replaces 239111A1

1шт.

9b

1990502C1

WASHER

1/4 x 13/16 x 1/16 in, Replaces 239186A1

1шт.

10

234002A2

CARPET

Front

1шт.

11

234003A2

FLOOR MAT

Platform

1шт.

12

279565A1

PROTECTION STRIP

1шт.

13

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

5шт.

14

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

5шт.

15

234004A1

BOOT

Steering Pedestal

1шт.

16

279517A2

COVER

Harness, Gray

1шт.

16

399217A1

COVER

Harness, Tan

1шт.

17

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

Special, Replaces 1535651C1

2шт.

18

97079C3

BOX

Gray

1шт.

18

223935A1

BOX

Black

1шт.

19

346600A1

PAD

Protective

1шт.

20

348580A1

STRAP

Storage

1шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

Note: See page 9-159 for console covers

1шт.

Nota : Voir la page 9 -159 pour les couvercles de console.

1шт.

Nota: Consultar la página 9-159 para las cubiertas de la consola.

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.
