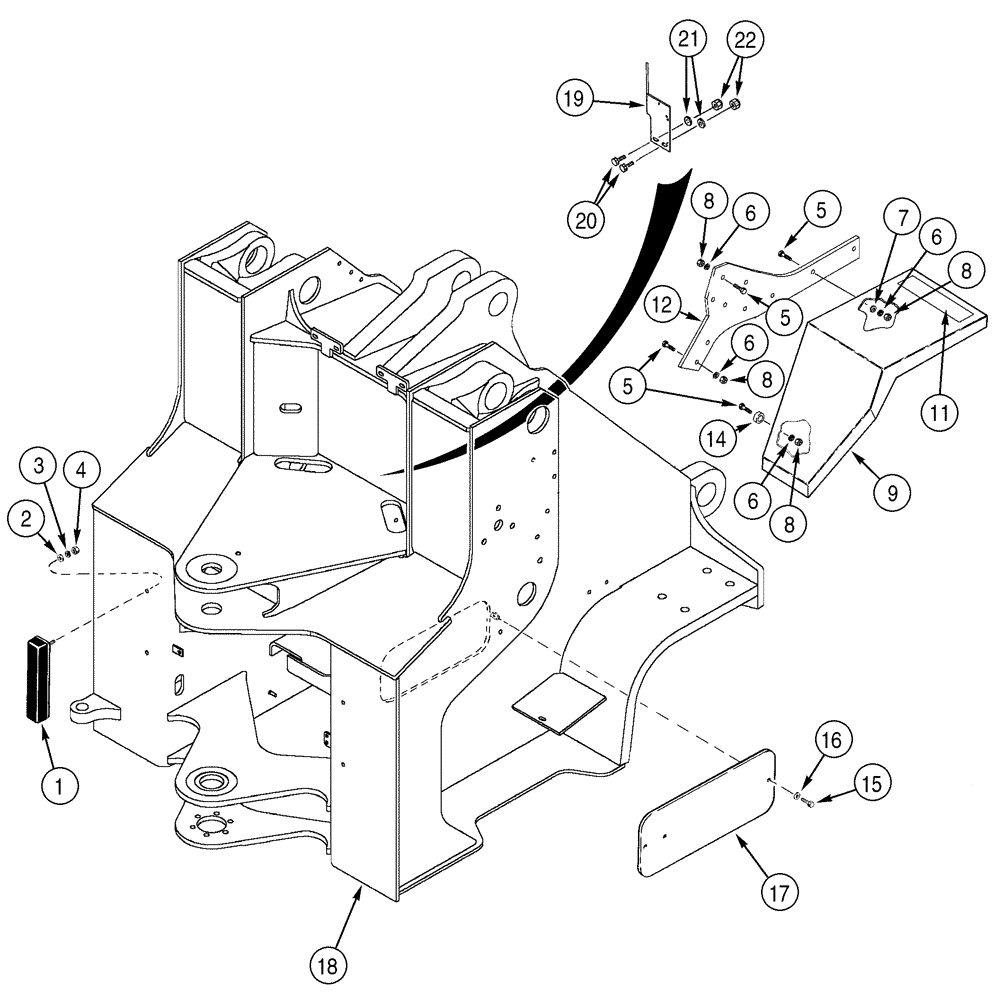

Запчасти Case 821C (09-39) - FRAME, FRONT FENDERS (09) - CHASSIS

Europe Only

1шт.

1

L108504

BUMPER

Chassis

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

16шт.

6

892-11012

LOCK WASHER,M12

No Longer Used, Order 896-11012

16шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Replaces 892-11012

16шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

8

829-1412

NUT,M12, Cl 10.9

No Longer Used, Order 832-10412

16шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

Replaces 829-1412

16шт.

9

123637A1

FENDER

Front, Right Hand, No Longer Used, Order 341126A1

1шт.

9

341126A1

FENDER

Front, Right Hand, Replaces 123637A1

1шт.

10

123639A1

FENDER

Front, Left Hand, Not Shown, No Longer Used, Order 341127A1

1шт.

10

341127A1

FENDER

Front, Left Hand, Not Shown, Replaces 123637A1

1шт.

11

D55216

PAD,2" x 9"

2 x 9 in, Front Fender

1шт.

12

123640A1

LARGE PLATE

PLATE, LARGE , Fender, Right Hand

1шт.

13

123641A1

LARGE PLATE

PLATE, LARGE , Fender, Left Hand, Not Shown

1шт.

14

123675A1

SPACER

Fender

2шт.

15

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

17

L125240

LARGE PLATE

PLATE, LARGE , Front Frame

2шт.

18

319628A1

CHASSIS

Front Chassis

1шт.

19

304980A1

BRACKET

Tube Support

1шт.

20

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

21

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

2шт.

22

231-1446

NUT,3/8" - 16, Gr 5

2шт.
