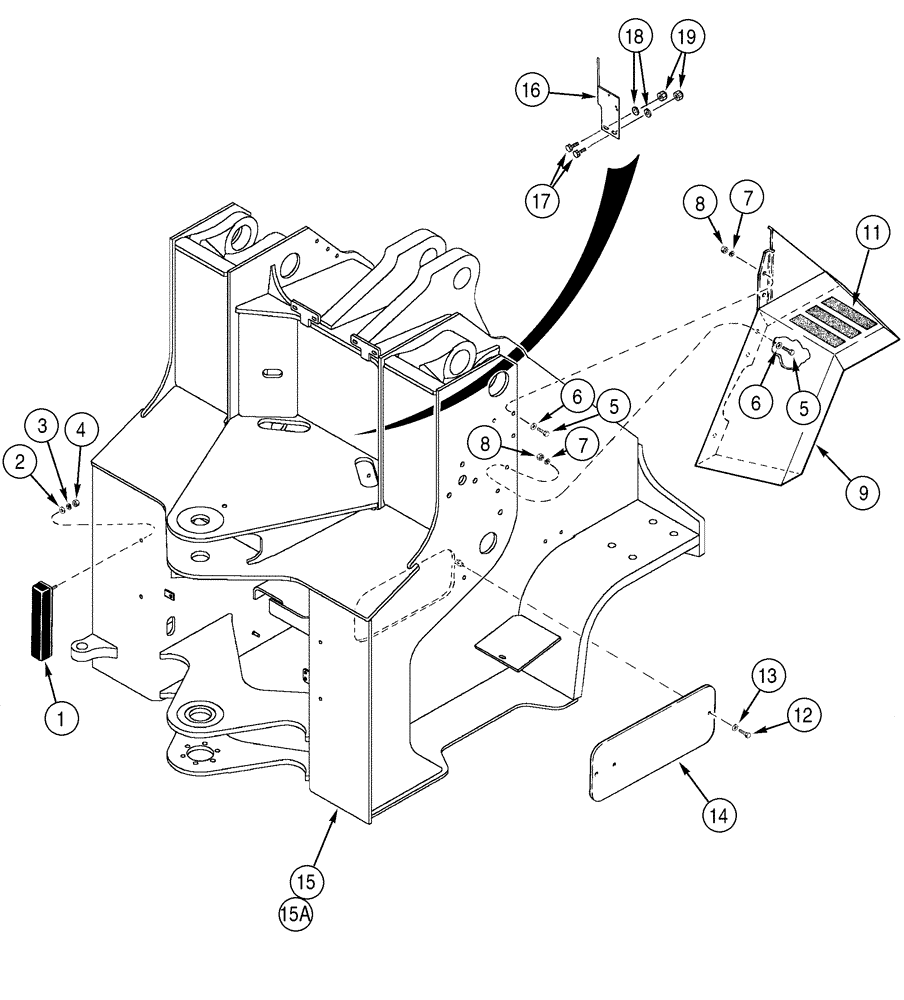

Запчасти Case 821C (09-38) - FRAME, FRONT FENDERS (09) - CHASSIS

North America Only

1шт.

1

L108504

BUMPER

Chassis

2шт.

2

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

6

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

10шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

8

425-108

NUT,1/2" - 13, Gr 5

10шт.

9

L125342

FENDER

Front, Right Hand

1шт.

10

L125343

FENDER

Front, Left Hand, Not Shown

1шт.

11

D55216

PAD,2" x 9"

2 x 9 in, Front Fender

6шт.

12

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

14

L125240

LARGE PLATE

PLATE, LARGE , Front Frame

2шт.

15

305580A1

Front Chassis, No Longer Available, Order 334251A2

1шт.

15a

334251A2

CHASSIS

Front Chassis, Replaces 305580A1, 334251A1

1шт.

16

304980A1

BRACKET

Tube Support

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

18

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

2шт.

19

231-1446

NUT,3/8" - 16, Gr 5

2шт.
