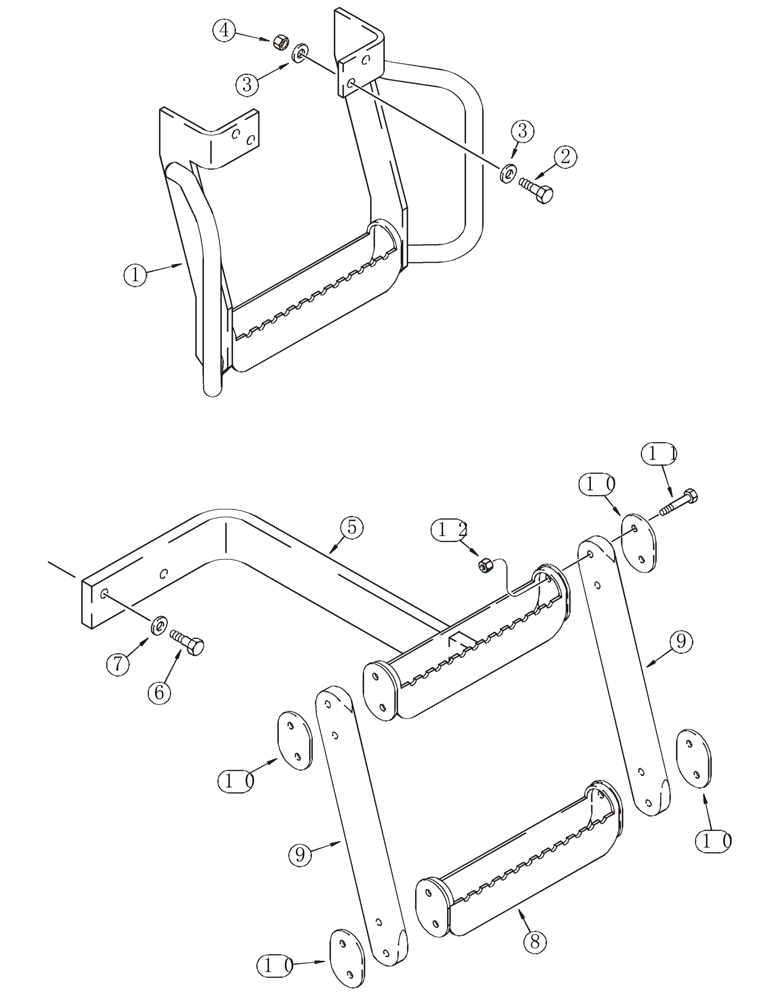

Запчасти Case 821C (09-36) - STEPS RIGHT SIDE ACCESS (09) - CHASSIS

North America and Europe

1шт.

1

313434A1

STEP

Rear Frame, Top

1шт.

2

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

8шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

5

319936A1

STEP

Rear Frame, Center, Right Hand

1шт.

6

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

7

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

8

311075A1

STEP

Rear Frame, Lower

1шт.

9

108751A1

SUPPORT

Hanger

2шт.

10

311069A1

LARGE PLATE

PLATE, LARGE , Support

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

11

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.
