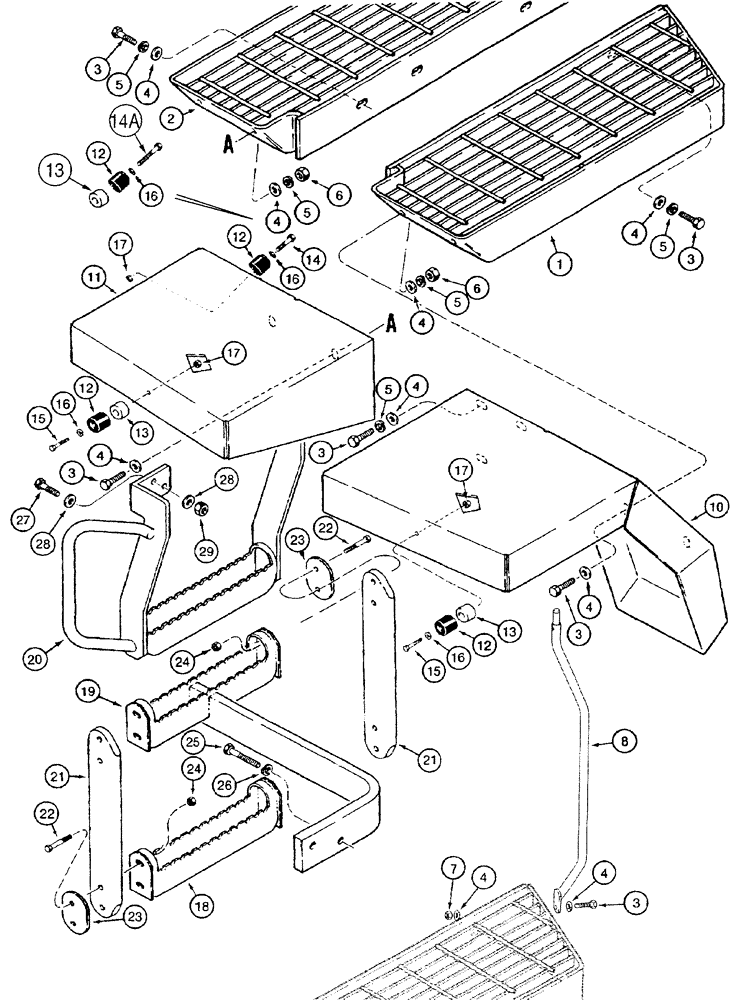

Запчасти Case 821C (09-35) - FENDERS, REAR STEPS (09) - CHASSIS

All European Models

1шт.

1

314378A3

STEP

Operator's Compartment, Right Hand, Replaces 314378A1

1шт.

2

314377A3

STEP

Operator's Compartment, Left Hand, Replaces 314377A2

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

18шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

24шт.

5

892-11012

LOCK WASHER,M12

12-16шт.

6

829-1412

NUT,M12, Cl 10.9

No Longer Used, Order 832-10412

4шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

Replaces 829-1412

4шт.

7

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

8

296420A3

HANDLE

Assist, Right Hand, Replaces 296420A1, 296420A2

1шт.

All European Models

1шт.

9

296418A3

HANDLE

Assist, Left Hand, Replaces 296418A1, 296418A2, Not Illustrated

1шт.

10

314628A2

FENDER

Rear, Right Hand, Replaces 314628A1

1шт.

11

314627A2

FENDER

Rear, Left Hand, Replaces 314627A1

1шт.

12

L126483

BUMPER

Door

3шт.

13

311070A1

SPACER

2-3шт.

14

827-6040

BOLT,Hex, M6 x 40mm, Cl 10.9

Used with 12

1шт.

14a

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

Used with 12, 13

1шт.

15

827-6070

BOLT,Hex, M6 x 70mm, Cl 10.9

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

17

832-10406

NUT,M6 x 1, Cl 8

3шт.

All European Models

1шт.

18

311075A2

STEP

Rear Frame, Lower, Replaces 311075A1

1шт.

19

313435A2

STEP

Rear Frame, Center, Replaces 313435A1

1шт.

20

313434A2

STEP

Rear Frame, Top, Replaces 313434A1

1шт.

21

108751A1

SUPPORT

Hanger

2шт.

22

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

23

311069A1

LARGE PLATE

PLATE, LARGE , Support

4шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

25

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

26

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

27

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

Replaces 627-12045

4шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

8шт.

29

832-10412

NUT,M12 x 1.75, Cl 8

4шт.
