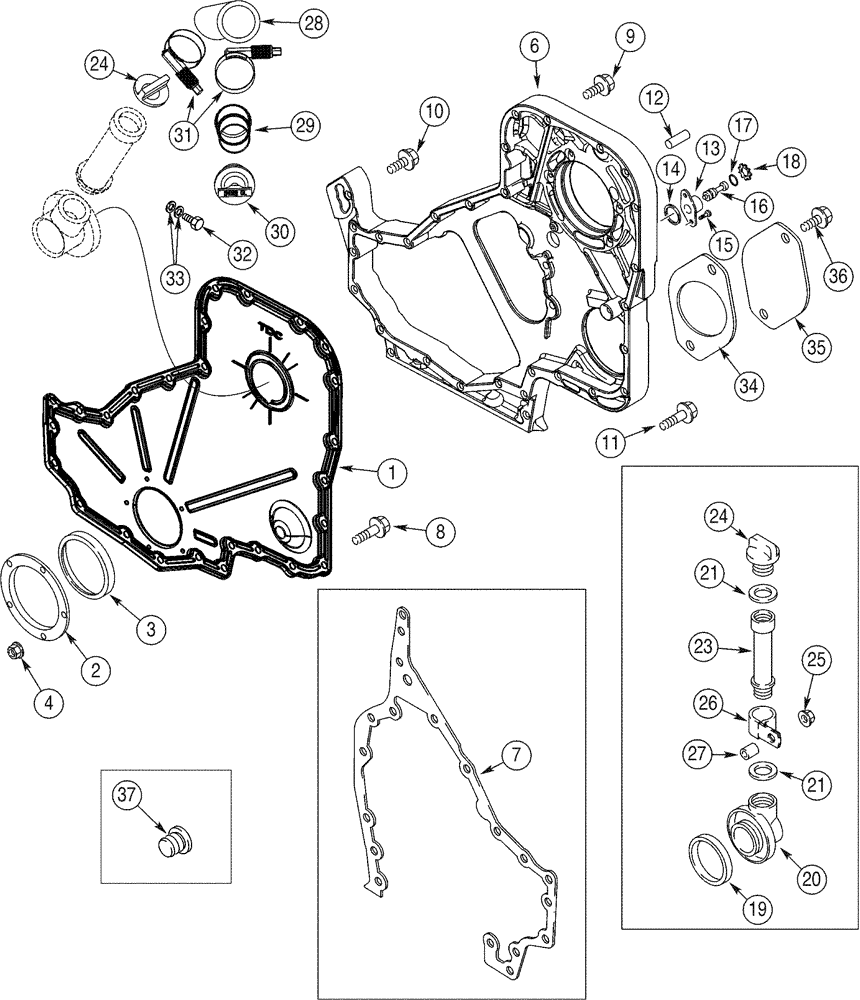

Запчасти Case 821C (02-22) - FRONT GEAR COVER (02) - ENGINE

6TAA-830 Emissions Certified Engine

1шт.

European Models, JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

1

J948045

COVER

1шт.

2

J941786

CARRIER

1шт.

3

NSS

NOT SOLD SEPARAT

Seal, Order A77790, A77808, See Page(s) 2-85

1шт.

4

J938077

LOCK NUT

M6

5шт.

5

J823494

SEALANT

3 oz, Not Illustrated

1шт.

6

84282787

HOUSING

Housing, Ront Gear, Cummins 4992991

1шт.

7

J944293

GASKET,1.01mm Thk

1шт.

8

J926863

FLANGE BOLT

M8 x 50

12шт.

9

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

12шт.

10

J926846

FLANGE BOLT

M8 x 20

3шт.

11

J943885

BOLT

M8 x 40

2шт.

12

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

13

J919683

HOUSING

1шт.

14

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

15

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

16

J903924

PIN,18.87mm OD x 55mm L

1шт.

17

J913994

O-RING

1шт.

18

100-2587

SNAP RING,0.875", Int, #87

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

6TAA-830 Emissions Certified Engine

1шт.

European Models JEE0126216-

1шт.

Models With Engine No. 376301A1

1шт.

20

J921644

ADAPTER

1шт.

21

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

2шт.

23

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

1шт.

24

J914136

CAP

Not Used In This Application

1шт.

25

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

26

A77695

MOUNTING CLIP

1шт.

27

J943408

SPACER

1шт.

28

429795A1

HOSE

Oil Fill

1шт.

29

429796A1

TUBE

1шт.

30

429797A1

CAP

1шт.

31

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

32

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

33

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

34

J938655

GASKET,1.27mm Thk

1шт.

35

J914868

COVER

1шт.

36

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

37

A77429

PLUG

1/2 PT

2шт.

Note: Items 28 - 33 are not included in the engine assembly. Purchase separatel

1шт.

Nota : Les articles 28 - 33 ne sont pas inclus dans le moteur. Les acheter séparément.

1шт.

Nota: Los artículos 28 - 33 no están incluidos en el conjunto del motor. Comprarlos por separado

1шт.
