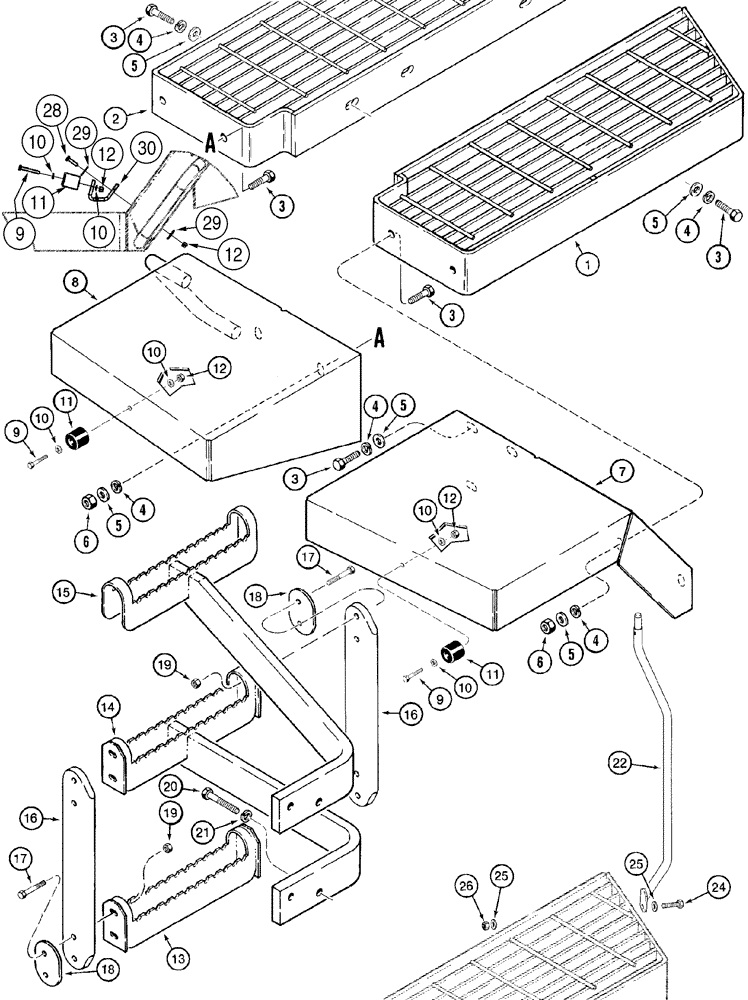

Запчасти Case 821C (09-34) - FENDERS, REAR STEPS (09) - CHASSIS

North American Models JEE0126216-

1шт.

1

326819A3

STEP

Operator's Compartment, Right Hand

1шт.

2

326818A3

STEP

Operator's Compartment, Left Hand

1шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

16шт.

4

892-11012

LOCK WASHER,M12

12шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

20шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

7

442121A1

FENDER ASSY.

Rear, Right Hand

1шт.

8

442122A1

FENDER ASSY.

Rear, Left Hand

1шт.

9

827-6045

BOLT,Hex, M6 x 45mm, Cl 10.9

3шт.

10

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

6шт.

11

L126483

BUMPER

Door

3шт.

12

832-10406

NUT,M6 x 1, Cl 8

4шт.

13

311075A2

STEP

Rear Frame, Lower

1шт.

North American Models JEE0126216-

1шт.

14

313435A2

STEP

Rear Frame, Center

1шт.

15

319794A2

STEP

Rear Frame, Top

1шт.

16

108751A1

SUPPORT

Hanger

2шт.

17

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

8шт.

18

311069A1

LARGE PLATE

PLATE, LARGE , Support

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

20

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

21

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

22

296420A3

HANDLE

Assist, Right Hand

1шт.

23

296418A3

HANDLE

Assist, Left Hand, Not Illustrated

1шт.

24

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

25

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

28

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

1шт.

29

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

30

357241A2

SUPPORT

Door Stop

1шт.
