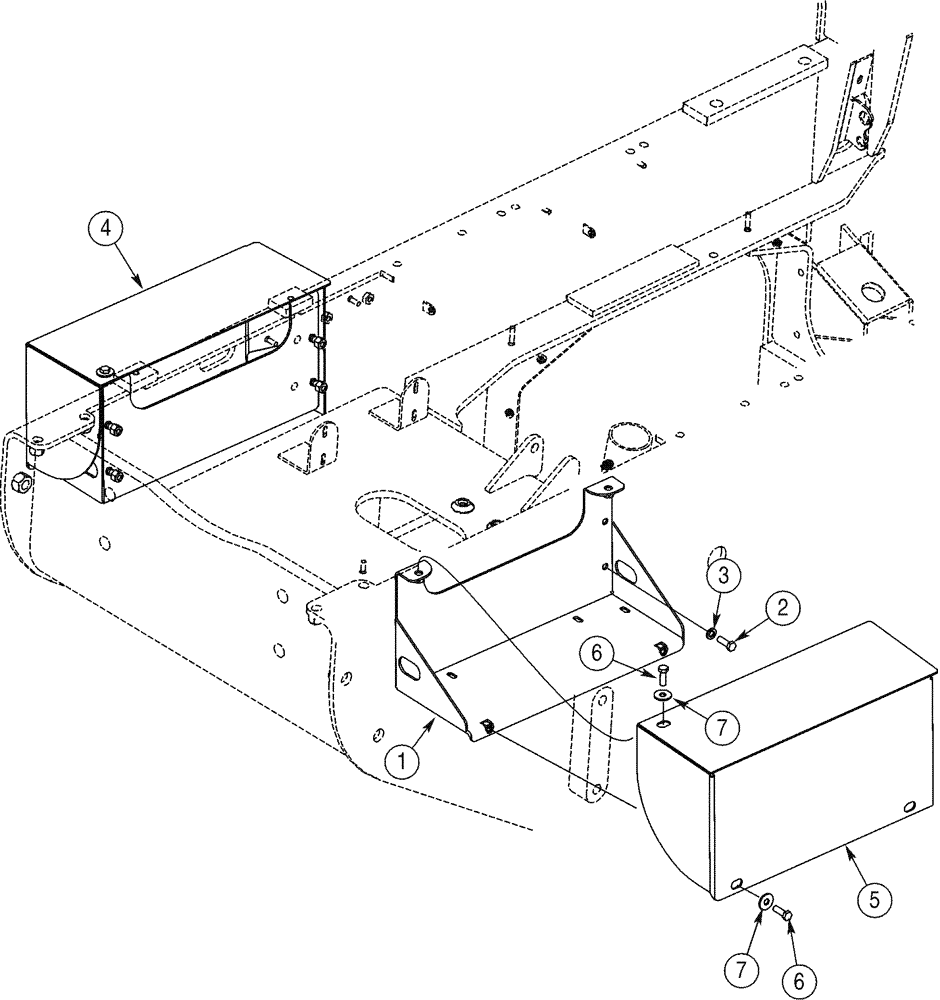

Запчасти Case 821C (09-32) - COVERS BATTERY BOX (09) - CHASSIS

All Models JEE0126216-

1шт.

1

443146A1

TRAY

Battery

2шт.

2

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

8шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

4

443149A1

COVER

Battery, Left Hand

1шт.

5

443148A1

COVER

Battery, Right Hand

1шт.

6

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

7

895-25012

WASHER,M12 x 37 x 3

13,5 x 37 x 3 mm

6шт.
