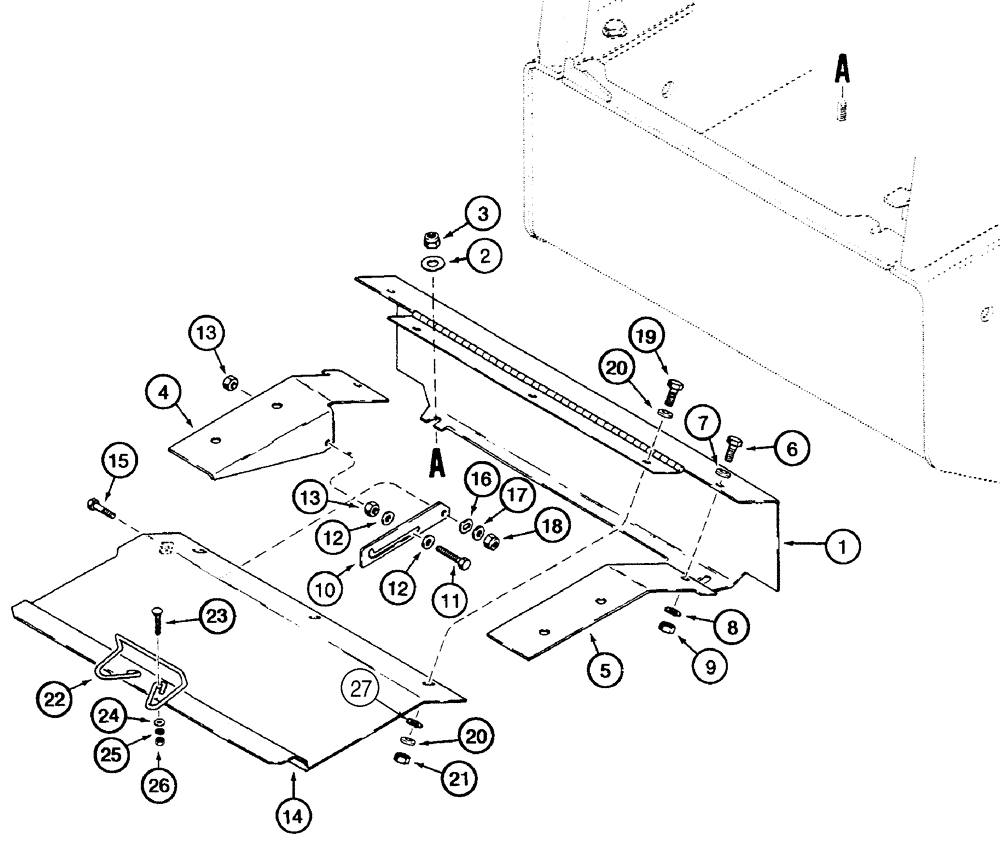

Запчасти Case 821C (09-31) - COVERS BATTERY BOX (09) - CHASSIS

European Models -JEE0126215

1шт.

1

143472A1

HALF BLADE

Radiator

1шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

143467A1

BRACKET

Left Hand, Battery Cover

1шт.

5

143468A1

BRACKET

Right Hand, Battery Cover

1шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

L125491

LARGE PLATE

PLATE, LARGE

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

13

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

14

143465A1

COVER

Battery

1шт.

15

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

16

S69662

WASHER

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

European Models -JEE0126215

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

Replaces 832-10410

3шт.

22

L125636

HANDLE

Hold Down

1шт.

23

711-5016

CARRIAGE BOLT,Sq Nk, M5 x 0.8 x 16mm, Cl 8.8

2шт.

24

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

25

892-11005

LOCK WASHER,M5

2шт.

26

824-1405

NUT,M5, Cl 5

2шт.

27

892-11010

LOCK WASHER,M10

3шт.

11

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

1шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
