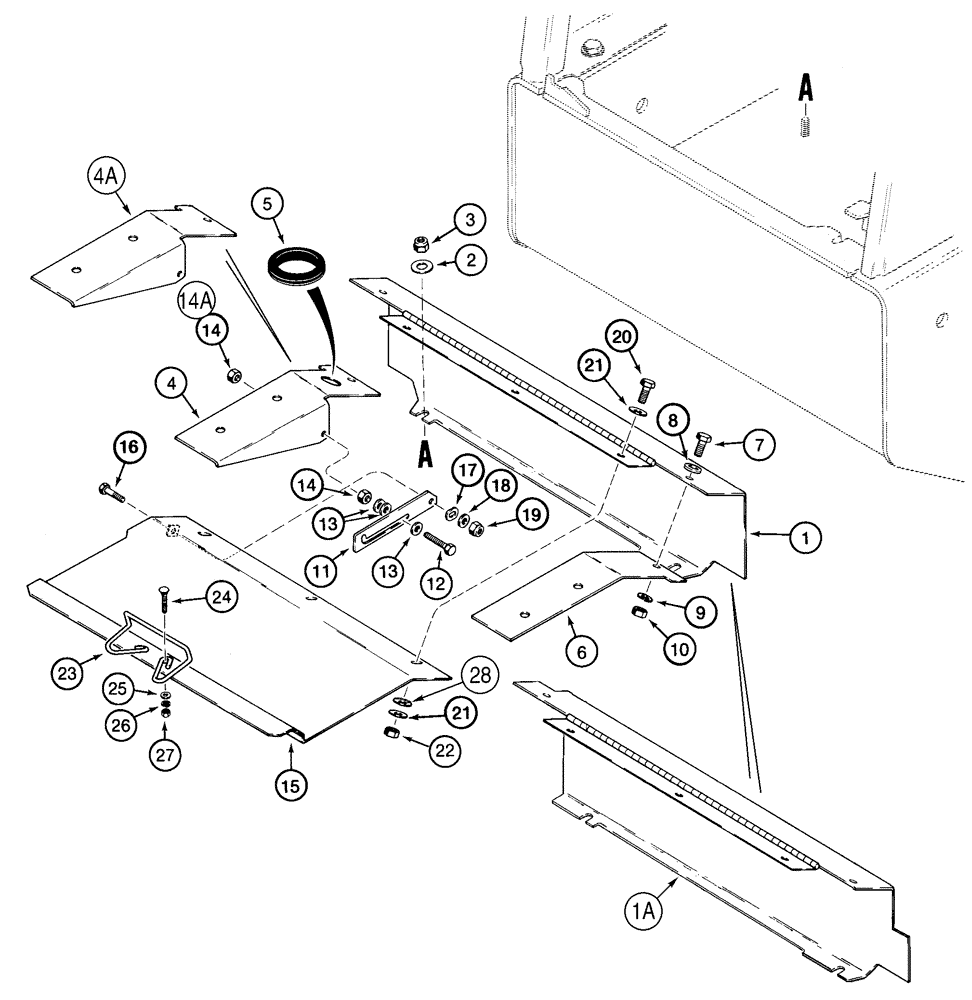

Запчасти Case 821C (09-30) - COVERS BATTERY BOX (09) - CHASSIS

North American Models -JEE0126215

1шт.

1

L128952

GUARD ASSY.

Radiator, If Used

1шт.

1a

143472A1

HALF BLADE

Radiator, If Used

1шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

L125968

LARGE PLATE

PLATE, LARGE , Left Hand, Battery Cover, With Hole, No Longer Available, Order 363849A1

1шт.

4a

363849A1

LARGE PLATE

PLATE, LARGE , Left Hand, Battery Cover

1шт.

5

248-2156

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

Rubber, Left Hand Bracket, Used With L125968

1шт.

6

L125969

LARGE PLATE

PLATE, LARGE , Right Hand, Battery Cover

1шт.

7

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

North American Models -JEE0126215

1шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

11

L125491

LARGE PLATE

PLATE, LARGE

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1-2шт.

14a

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

15

L125446

COVER

Battery

1шт.

16

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

17

S69662

WASHER

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

22

829-1410

NUT,M10 x 1.5, Cl 10.9

Replaces 832-10410

3шт.

23

L125636

HANDLE

Hold Down

1шт.

24

711-5016

CARRIAGE BOLT,Sq Nk, M5 x 0.8 x 16mm, Cl 8.8

2шт.

25

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

26

892-11005

LOCK WASHER,M5

2шт.

12

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

1шт.

27

824-1405

NUT,M5, Cl 5

2шт.

28

892-11010

LOCK WASHER,M10

3шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
