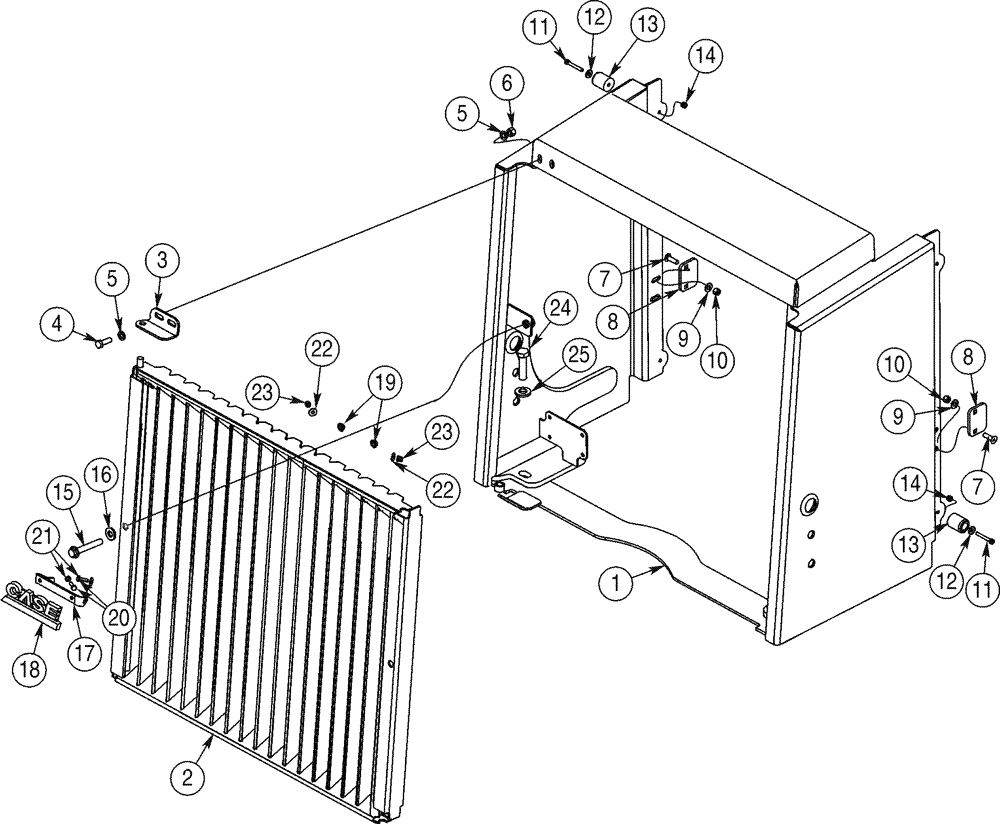

Запчасти Case 821C (09-28) - GUARD, RADIATOR SCREEN, REAR (09) - CHASSIS

European Models JEE0126216-

1шт.

1

431807A2

GUARD ASSY.

Radiator

1шт.

2

432341A1

GUARD ASSY.

Rear

1шт.

3

429433A1

BRACKET

Rear Screen Pivot

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

4шт.

8

429986A1

PLATE

Door Latch

2шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

864-6045

HEX SOC SCREW,M6 x 45mm, Cl 8.8

4шт.

12

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

13

L126483

BUMPER

4шт.

14

832-10406

NUT,M6 x 1, Cl 8

4шт.

15

854-12080

BOLT,Hvy Hex, M12 x 80mm, Cl 10.9

2шт.

16

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

17

451669A1

BRACKET

1шт.

18

186989A1

EMBLEM

1шт.

19

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

20

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

21

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

23

832-10406

NUT,M6 x 1, Cl 8

2шт.

24

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

4шт.

25

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

4шт.

Note: See page 9-79B for battery compartment covers

1шт.

Nota : Voir la page 9 -79B pour les couvercles de compartiment de batterie.

1шт.

Nota: Consultar la página 9-79B para las cubiertas del compartimento de la batería..

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

9

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
