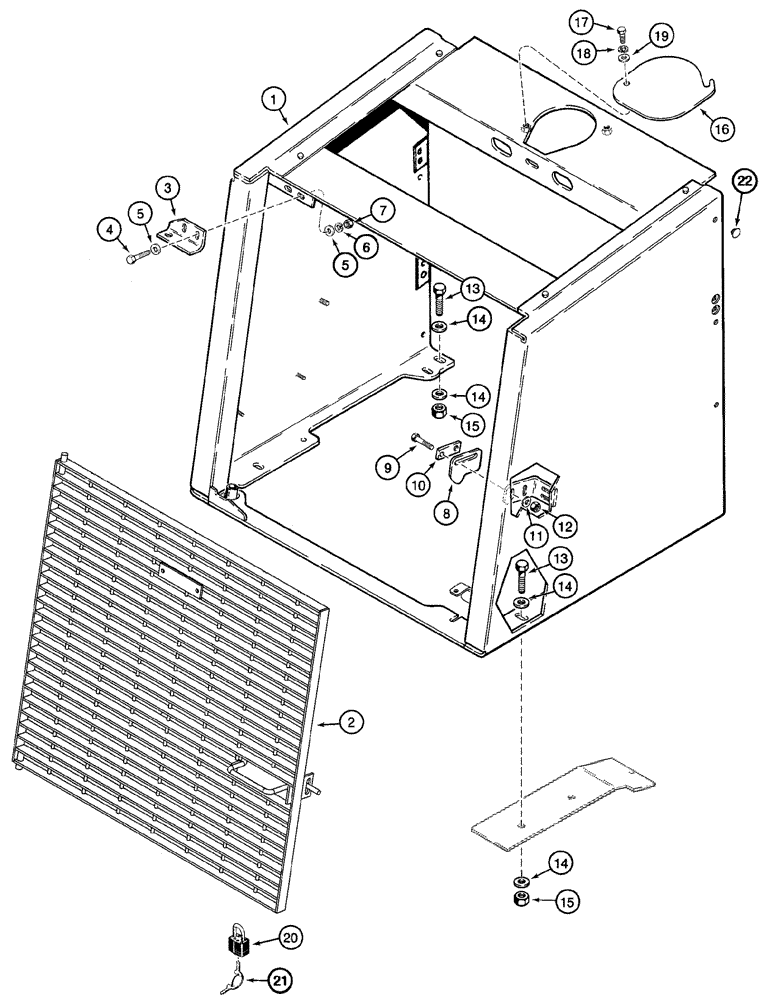

Запчасти Case 821C (09-25) - GUARD, RADIATOR GRILLE (09) - CHASSIS

North American Models -JEE0126215

1шт.

1

291046A2

GUARD ASSY.

Radiator, Replaces 291046A1

1шт.

2

284745A1

GRILLE ASSY

1шт.

3

L118936

SUPPORT

Grille Support

1шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

L126920

LATCH

Grille

1шт.

9

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

10

L126841

LARGE PLATE

PLATE, LARGE , Catch

1шт.

11

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

14

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

12шт.

15

832-10416

NUT,M16 x 2, Cl 8

6шт.

North American Models -JEE0126215

1шт.

16

L128053

COVER

Lockup, Radiator

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

18

892-11010

LOCK WASHER,M10

2шт.

20

D93753

PADLOCK

Includes Keys, Includes 21

1шт.

21

D93751

SET OF 2 KEYS

Yale Lock, If Used

2шт.

21

R29555

KEY

Master Lock, If Used

2шт.

22

L126856

RIVET

Rubber

8шт.

Note: See page 9-73 for battery compartment covers

1шт.

Nota : Voir la page 9 -73 pour les couvercles de compartiment de batterie.

1шт.

Nota: Consultar la página 9-73 para las cubiertas del compartimento de la batería..

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
