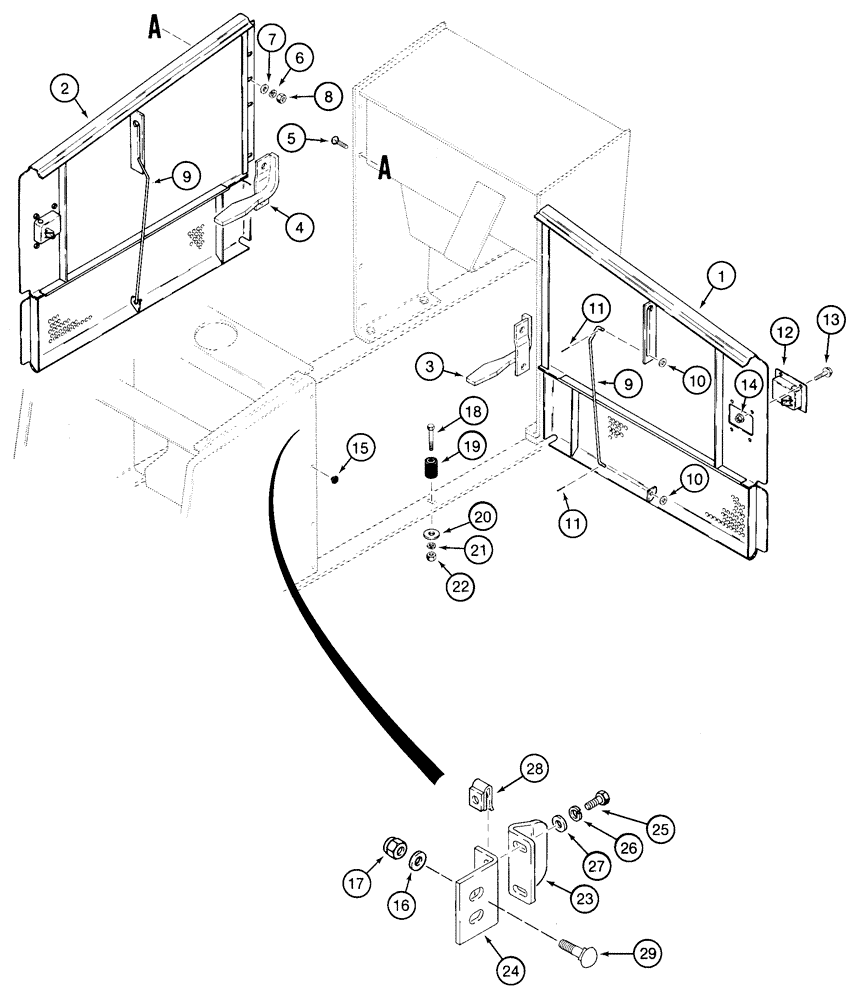

Запчасти Case 821C (09-22) - DOORS SIDE, ENGINE (09) - CHASSIS

All Models -JEE0126215

1шт.

1

119508A1

DOOR

Hood Side, Right Hand, North America Only

1шт.

1

399888A1

DOOR ASSY.

Hood Side, Right Hand, Europe Only, Replaces 121452A1

1шт.

2

119509A1

DOOR

Hood Side, Left Hand, North America Only

1шт.

2

399887A1

DOOR ASSY.

Hood Side, Left Hand, Europe Only, Replaces 121451A1

1шт.

3

L129473

RETAINER

Tool Tray, Right Hand

1шт.

4

L129474

RETAINER

Tool Tray, Left Hand

1шт.

5

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

10шт.

6

492-11038

LOCK WASHER,3/8"

10шт.

7

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

10шт.

8

425-106

NUT,3/8"-16, Cl 5

10шт.

All Models -JEE0126215

1шт.

9

L125405

ROD

Door Open, North America Only, No Longer Used, Order 106702A1

2шт.

9

106702A1

ROD

Door Open

2шт.

10

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

4шт.

12

R56221

LATCH

Door Handle

2шт.

13

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

14

231-5344

FLANGE NUT,Flg, 1/4"-20

8шт.

15

L126856

RIVET

Rubber

8шт.

16

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

4шт.

17

231-1446

NUT,3/8" - 16, Gr 5

4шт.

18

426-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

2шт.

19

D33216

PIVOT

Rubber

2шт.

20

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

Hardened

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

425-106

NUT,3/8"-16, Cl 5

2шт.

23

L127958

LARGE PLATE

PLATE, LARGE

2шт.

24

112924A1

SUPPORT

2шт.

25

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.

26

492-11031

LOCK WASHER,5/16"

4шт.

27

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

28

131-637

SPRING NUT,Ret, J, 5/16"-18

4шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.
