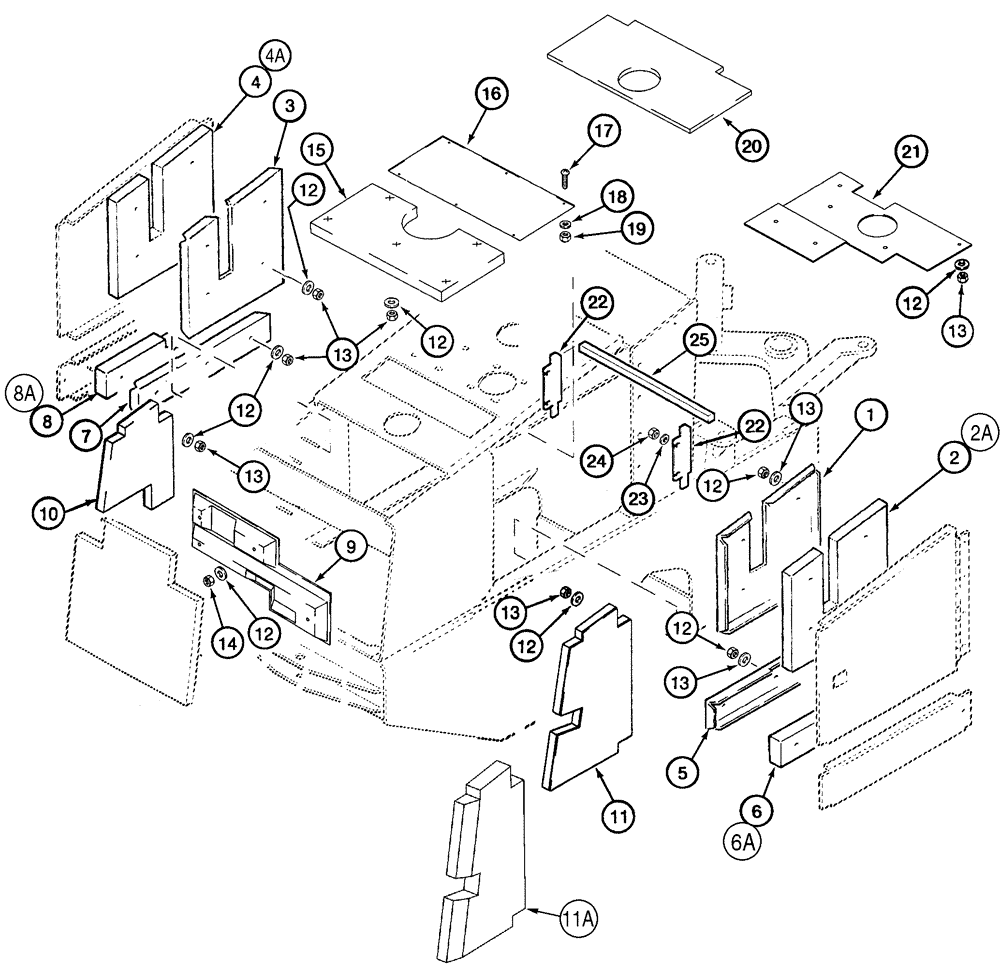

Запчасти Case 821C (09-20) - INSULATION HOOD (09) - CHASSIS

Europe Only -JEE0126215

1шт.

1

106700A1

GUARD ASSY.

Engine Door, Right Hand, If Used

1шт.

2

118734A1

NOISE PROTECTION

Cover, Right Hand, No Longer Used, Order 399889A1, REF 2A

1шт.

2a

399889A1

FOAM

Cover, Right Hand

1шт.

3

107298A1

GUARD ASSY.

Engine Door, Left Hand, If Used

1шт.

4

107295A1

NOISE PROTECTION

Cover, Left Hand, No Longer Used, Order 399890A1, REF 4A

1шт.

4a

399890A1

FOAM

Cover, Left Hand

1шт.

5

106701A1

GUARD ASSY.

Engine Lower, Right Hand, If Used

1шт.

Europe Only -JEE0126215

1шт.

6

118735A1

NOISE PROTECTION

Engine Lower, Right Hand, No Longer Used, Order 399892A1, REF 6A

1шт.

6a

399892A1

FOAM

Engine Lower, Right Hand

1шт.

7

107299A1

GUARD ASSY.

Engine Lower, Left Hand, If Used

1шт.

8

107296A1

NOISE PROTECTION

Engine Lower, Left Hand, No Longer Used, Order 399891A1, REF 8A

1шт.

8a

399891A1

FOAM

Engine Lower, Left Hand

1шт.

9

175109A2

PROTECTOR

Hydraulic Tank

1шт.

10

319477A2

INSULATOR

Radiator Guard, Left Hand, Replaces 319477A1

1шт.

11

319478A1

INSULATOR

Radiator Guard, Right Hand, No Longer Available, Order 319478A2, REF 11A

1шт.

Europe Only -JEE0126215

1шт.

11a

319478A2

INSULATOR

Radiator Guard, Right Hand, Replaces 319478A1

1шт.

12

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

1шт.

13

234-10431

CROWN NUT,Crown, 5/16"-18

1шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

144505A1

PANEL

Top Rear

1шт.

16

144213A1

LARGE PLATE

PLATE, LARGE , Air Intake

1шт.

17

161-114

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 5/8"

6шт.

18

495-81286

WASHER,.281" x 1 1/8" x .060"

6шт.

19

231-1444

NUT,1/4"-20, GB

6шт.

20

319029A1

INSULATOR

Hood

1шт.

21

319030A1

INSULATOR

Engine Sound

1шт.

22

175207A2

COWL

2шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

25

182916A1

PANEL

Lower, Hydraulic Tank

1шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

Replaces 895-15012

4шт.
