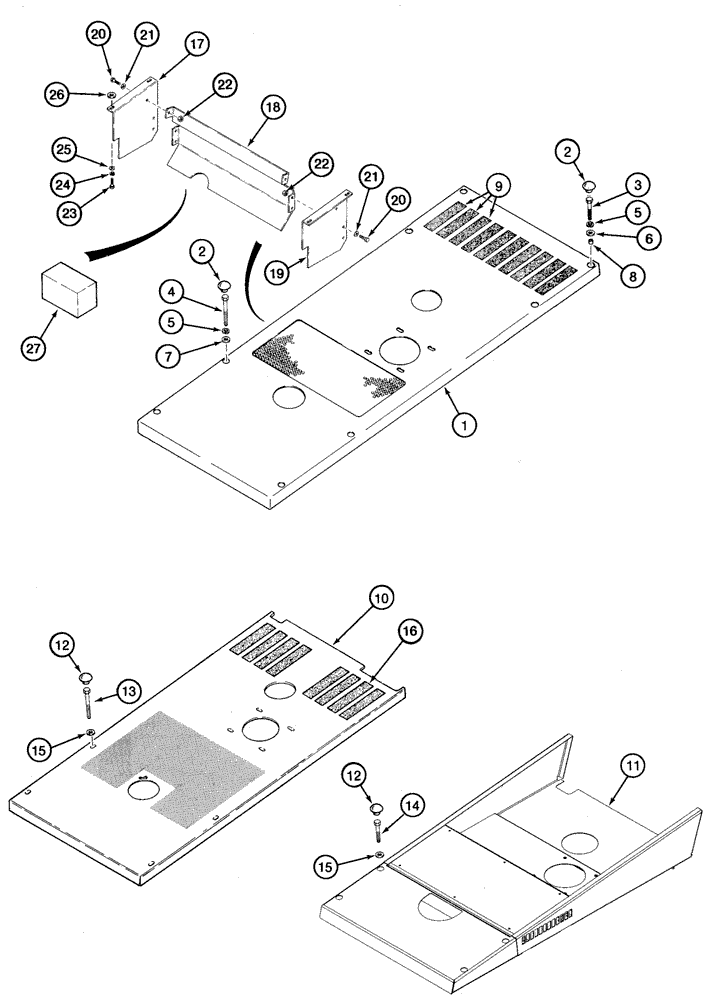

Запчасти Case 821C (09-18) - HOOD ENGINE (09) - CHASSIS

Models Without Air Conditioning -JEE0126215

1шт.

1

305555A1

COWL

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

1-3/16

8шт.

3

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

4

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

No Longer Used, Order 627-10040

4шт.

4

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Replaces 627-10065

4шт.

5

892-11010

LOCK WASHER,M10

8шт.

6

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

8

D76211

SPACER

4шт.

9

D55216

PAD,2" x 9"

2 x 9 in, Front

10шт.

Models With Air Conditioning -JEE0126215

1шт.

10

305554A1

COWL

North America Only

1шт.

11

318073A1

HOOD ASSY.

Europe Only

1шт.

12

353-413

PLUG,Dome, 1.187" hole, Nylon

1-3/16

4шт.

13

627-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9, Full Thd

No Longer Used, Order 627-10040

4шт.

13

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Replaces 627-10065

4шт.

Models With Suction Fan -JEE0126215

1шт.

16

D55216

PAD,2" x 9"

2 x 9 in, Front, North America Only

8шт.

17

L128187

DEFLECTOR

Left Hand

1шт.

18

L128188

DEFLECTOR

Center

1шт.

19

L128186

DEFLECTOR

Right Hand

1шт.

20

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

6шт.

21

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

6шт.

22

231-1445

NUT,5/16"-18, GB

6шт.

23

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

4шт.

26

R24323

WASHER

If Used

4шт.

27

255823A1

SEAL

Air

2шт.

14

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

Hardened

4шт.

15

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
