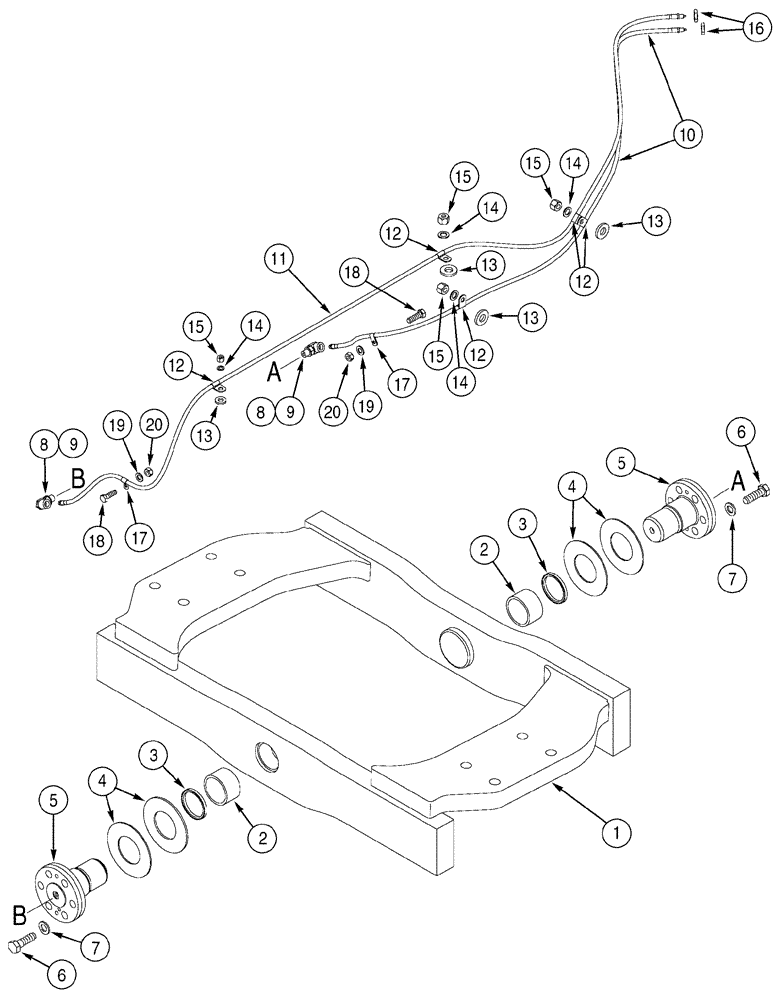

Запчасти Case 821C (09-17) - TRUNNION LUBRICATION LINES (09) - CHASSIS

303979A1

TRUNNION

Rear Frame, Includes 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Trunnion

1шт.

2

L109938

BUSHING,70.18mm ID x 82.69mm OD x 41mm L

Trunnion

2шт.

3

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Seal

2шт.

4

L118835

WASHER,77.5mm ID x 152mm OD x 3.5mm Thk

Replaces 302573A1

1шт.

4

L70234

WASHER,77.72mm ID x 152.4mm OD x 4.78mm Thk

Replaces 302574A1

1шт.

5

L125294

TRUNNION

Trunnion

2шт.

6

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

12шт.

7

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

25/32 x 1-3/8 x 9/64, Hardened

12шт.

8

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

Includes 9

2шт.

9

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

10

318012A1

FLEXIBLE HOSE

1785 mm (70-5/16 in), Lubrication, Front Trunnion

1шт.

11

318013A1

FLEXIBLE HOSE,4.8mm ID x 2723mm L

2723 mm (107-3/16 in), Lubrication, Rear Trunnion

1шт.

12

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

5шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

4шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

16

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

17

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

20

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

18

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.
