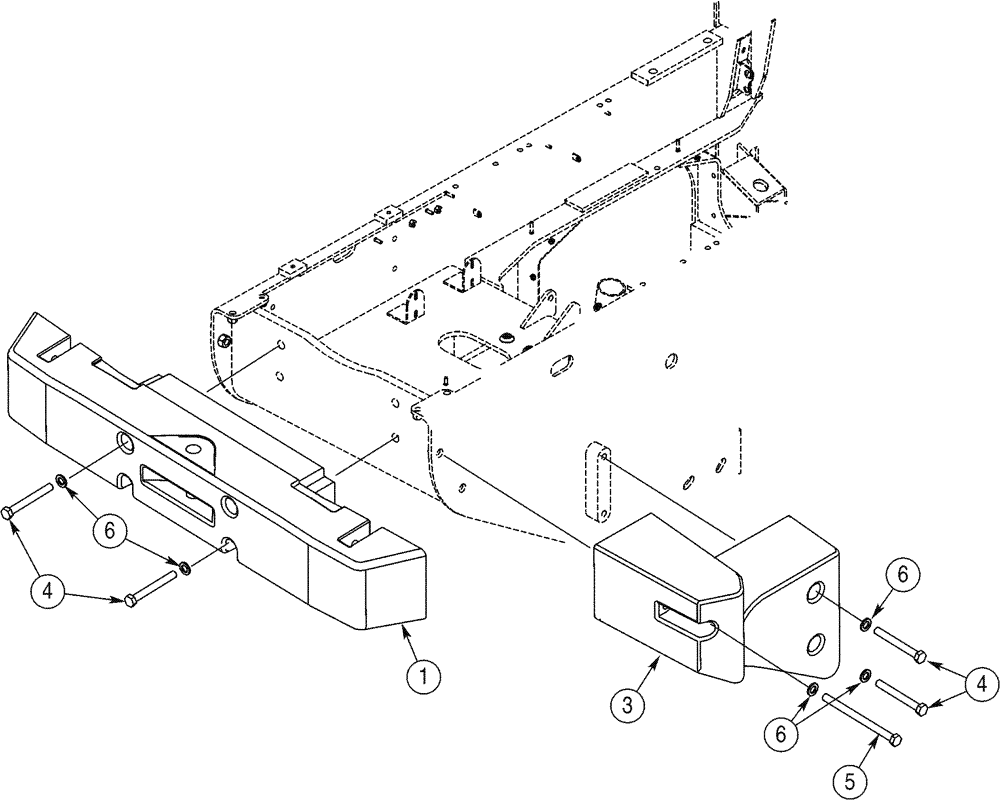

Запчасти Case 821C (09-16) - COUNTERWEIGHTS (09) - CHASSIS

All Models JEE0126216-

1шт.

1

442769A1

BALANCER

952.5 kg (2100 lb), Rear, Center

1шт.

2

442476A1

BALANCER

727 kg (1600 lb)

1шт.

Not Illustrated

1шт.

3

442475A1

BALANCER

727 kg (1600 lb), Right Hand

1шт.

4

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

8шт.

5

827-24330

BOLT,Hex, M24 x 3 x 330mm, Cl 10.9

M24 x 330; 10.9

2шт.

6

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

(26 ID x 44 x 5 mm)

10шт.

7

101311A2

HITCH PIN

Drawbar; Not Illustrated

1шт.

8

D33805

PIN

Not Illustrated

1шт.
