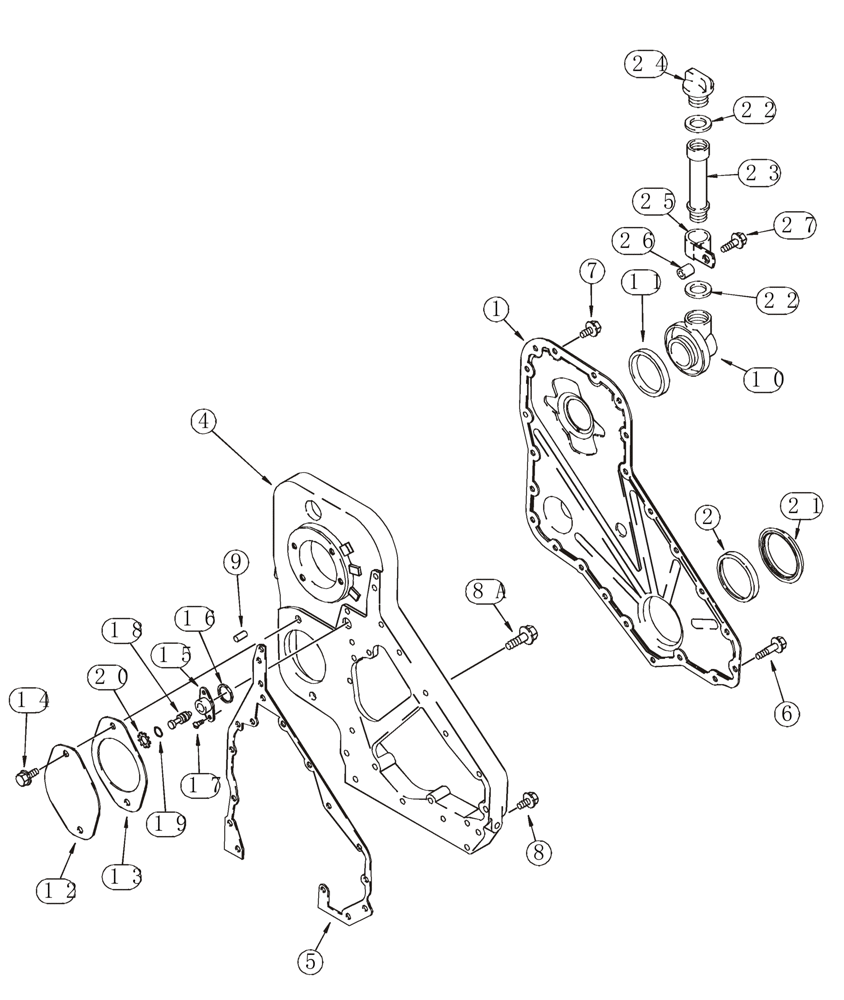

Запчасти Case 821C (02-20) - FRONT GEAR COVER (02) - ENGINE

6T-830 Emissions Certified Engine

1шт.

North American Models -JEE0126215

1шт.

European Models -JEE0126215

1шт.

Models With Engine No. 295271A1, 296653A1

1шт.

1

J925230

COVER ASSY

Low PTO

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, Order A77790, A77808, See Page(s) 2-85

1шт.

3

J823494

SEALANT

3 oz, Not Illustrated

1шт.

4

J926721

MOTOR HOUSING

Low PTO

1шт.

5

J938737

GASKET

Replaces J929253

1шт.

6

J926863

FLANGE BOLT

M8 x 50

6шт.

7

J924962

FLANGE BOLT

M8 x 16

17шт.

8

J926846

FLANGE BOLT

M8 x 20

5шт.

8a

854-12050

BOLT,Hvy Hex, M12 x 50mm, Cl 10.9

4шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J921644

ADAPTER

1шт.

11

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

6T-830 Emissions Certified Engine

1шт.

North American Models -JEE0126215

1шт.

European Models -JEE0126215

1шт.

12

J914868

COVER

1шт.

13

J938655

GASKET,1.27mm Thk

Replaces J931608

1шт.

14

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

15

J919683

HOUSING

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

17

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

18

J903924

PIN,18.87mm OD x 55mm L

1шт.

19

J913994

O-RING

1шт.

20

100-2587

SNAP RING,0.875", Int, #87

(Replaces J904849)

1шт.

21

J918113

SHIELD,74.73mm ID x 91.7mm OD x 6mm Thk

1шт.

22

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

Replaces J902363

2шт.

23

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

1шт.

24

J901895

CAP

1шт.

25

A77695

MOUNTING CLIP

1шт.

26

A77697

SPACER

1шт.

27

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

1шт.
