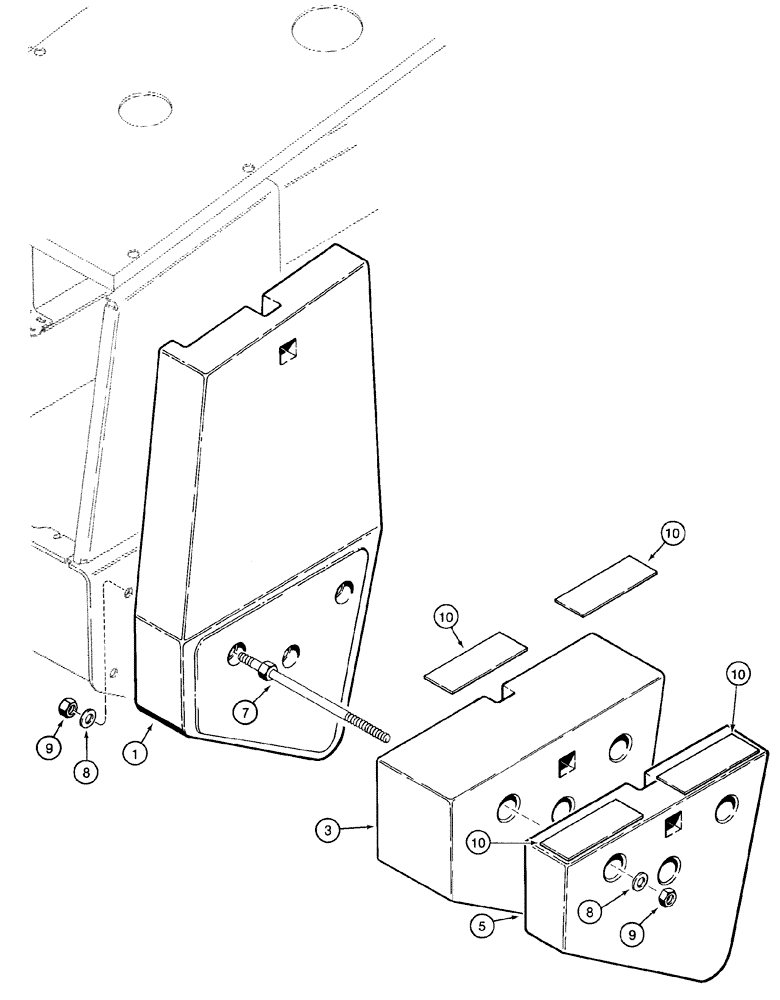

Запчасти Case 821C (09-14) - COUNTERWEIGHTS (09) - CHASSIS

North American Models -JEE0126215

1шт.

Pound Total Weight 5400

1шт.

1

L125464

BALANCER

545.5 kg (1200 lb), Rear, Right Hand

1шт.

2

L125465

BALANCER

545.5 kg (1200 lb), Rear, Left Hand, Not Illustrated

1шт.

3

L125466

BALANCER

453.6 kg (1000 lb), Rear, Right Hand

1шт.

4

L125467

BALANCER

453.6 kg (1000 lb), Rear, Left Hand, Not Illustrated

1шт.

5

L125468

BALANCER

226.8 kg (500 lb), Rear, Right Hand

1шт.

6

L125469

BALANCER

226.8 kg (500 lb), Rear, Left Hand, Not Illustrated

1шт.

7

L129899

STUD

6шт.

8

496-21106

WASHER,1 1/16" x 2" x .209", HDN

12шт.

9

429-1016

NUT,1"-8, G8

12шт.

10

S243101

WEAR PAD

4 x 11 in, Non-Skid

8шт.
