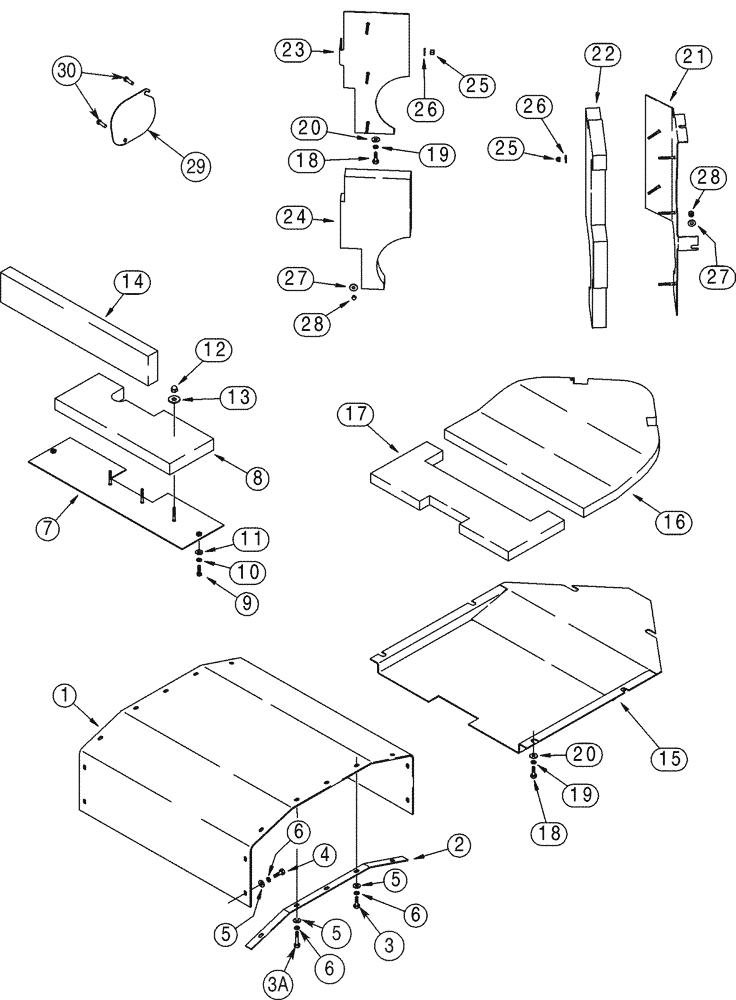

Запчасти Case 821C (09-12) - INSULATION REAR CHASSIS (09) - CHASSIS

All European Models

1шт.

1

E133897

NOISE PROTECTION

Axle

1шт.

2

121842A1

LARGE PLATE

PLATE, LARGE

2шт.

3

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

10шт.

3a

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

4шт.

4

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

5

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

18шт.

6

492-11038

LOCK WASHER,3/8"

18шт.

7

122310A1

LARGE PLATE

PLATE, LARGE , Mounting, Insulation

1шт.

8

118736A1

NOISE PROTECTION

Rear Trunnion

1шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

2шт.

12

234-10431

CROWN NUT,Crown, 5/16"-18

3шт.

13

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

3шт.

14

182521A1

PANEL

Rear Chassis, -JEE0126215

1шт.

15

319031A1

INSULATOR

Mounting, Insulation

1шт.

16

319033A1

INSULATOR

Transmission, Front

1шт.

17

319032A1

INSULATOR

Transmission, Rear

1шт.

All European Models

1шт.

18

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

19

492-11038

LOCK WASHER,3/8"

6шт.

20

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

6шт.

21

144135A2

SHEET

Mounting, Insulation

1шт.

22

144139A2

PANEL

Articulation, Right Hand

1шт.

23

144141A2

SHEET

Mounting, Insulation

1шт.

24

144145A2

PANEL

Articulation, Left Hand

1шт.

25

234-10431

CROWN NUT,Crown, 5/16"-18

8шт.

26

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

8шт.

27

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 in)

4шт.

28

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

29

L128053

COVER

1шт.

30

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.
