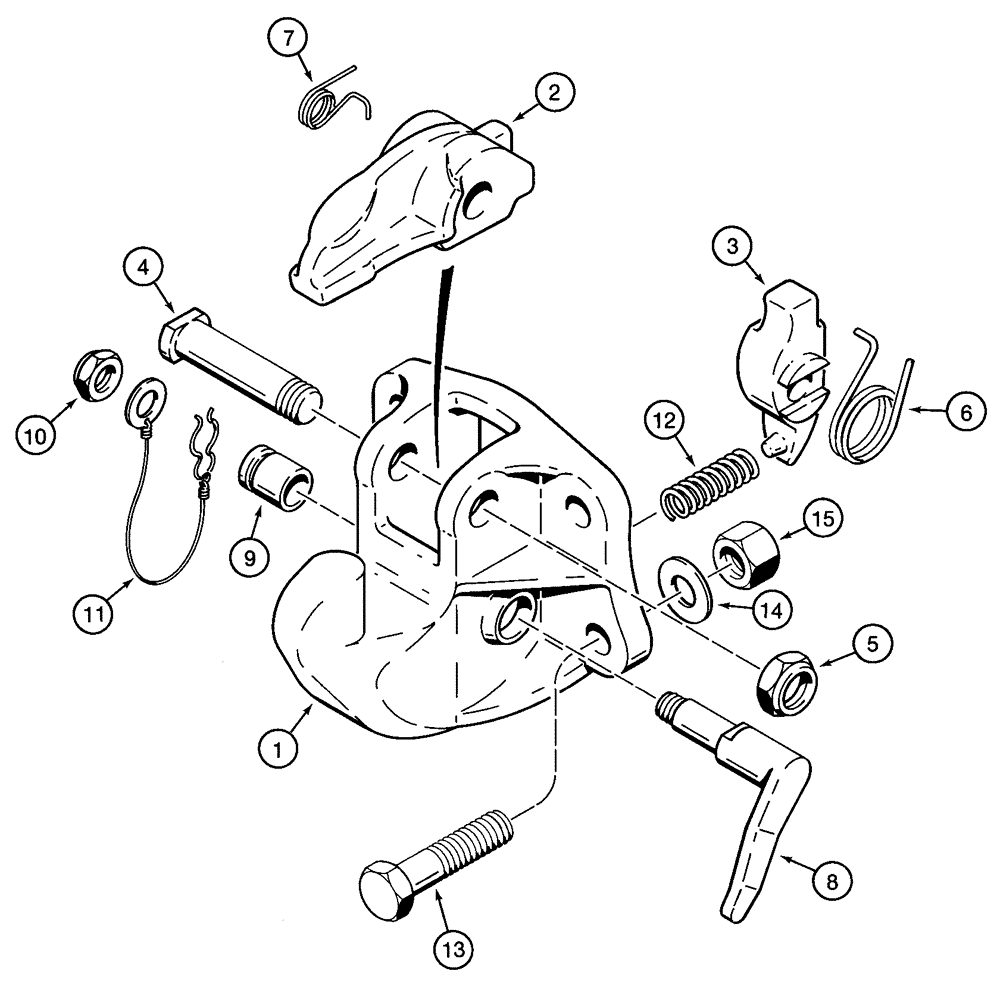

Запчасти Case 821C (09-10) - HITCH, PINTLE MOUNTING (09) - CHASSIS

North America Only

1шт.

L125486

DRAW HOOK

Pintle, Consists Of 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

Hitch, Pintle

1шт.

2

S300978

LEVER

1шт.

3

S300979

LEVER

1шт.

4

S300980

PIN

7/8 x 3-5/8

1шт.

5

131-475

NUT,7/8"-9

7/8

1шт.

6

S300981

SPRING

Catch

1шт.

7

S300982

SPRING

Latch

1шт.

8

S300983

LEVER

1шт.

9

S300984

BUSHING

1шт.

10

S300985

LOCK NUT

1шт.

11

S300986

CLIP, SPRING

Includes Cable

1шт.

12

S300987

SPRING

1шт.

13

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

4шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Hardened

4шт.

15

429-1012

NUT,3/4"-10, G8

Replaces 329-1012

4шт.
