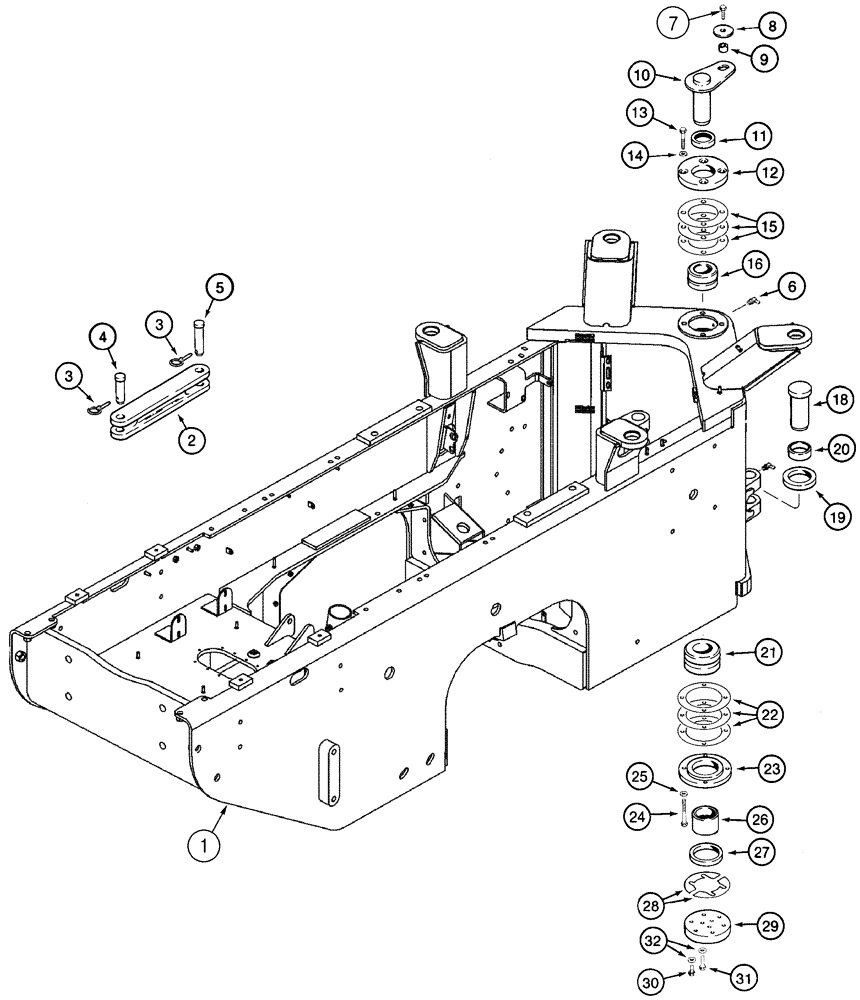

Запчасти Case 821C (09-06) - FRAME, REAR PIVOT (09) - CHASSIS

North American Models JEE0126216-

1шт.

1

441645A1

CHASSIS

Rear, Includes Fuel Tank

1шт.

2

L125219

ROD

Transport and Service

1шт.

3

A30338

PIN

2шт.

4

A164277

PIN,31.75mm OD x 107.95mm L

Link, Rear

1шт.

5

L125221

LOCK PIN,31.75mm OD x 144.75mm L

Link, Front

1шт.

6

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

7

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

1шт.

8

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

9

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Upper Pin

1шт.

10

L125271

PIVOT PIN,63.49mm OD x 198mm L

Upper Pivot

1шт.

11

L125008

SEAL,63.5mm ID x 98.58mm OD x 11.89mm Thk

Upper, Upper Articulation Plate

1шт.

North American Models JEE0126216-

1шт.

12

L125225

COLLAR

Upper Pivot

1шт.

13

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8 x 3-1/2; 8

4шт.

14

D43266

WASHER

5/8, Hardened

4шт.

15

L125231

SHIM,114mm ID x 195mm OD x 0.11mm Thk

0,10 mm (0,004 in), Upper Pivot

1шт.

15

L125232

SHIM,114mm ID x 195mm OD x 0.28mm Thk

0,25 mm (0,010 in), Upper Pivot

1шт.

15

L125233

SHIM,114mm ID x 195mm OD x 0.54mm Thk

0,50 mm (0,020 in), Upper Pivot

1шт.

16

L125006

BEARING ASSY,63.5mm ID x 112.71mm OD x 60.33mm W

1шт.

17

L125561

SEAL,63.5mm ID x 98.58mm OD x 11.89mm Thk

Lower, Upper Articulation Plate

1шт.

18

L125226

PIVOT PIN,96mm OD x 197mm L

Lower Pivot

1шт.

19

L125009

SEAL,92.08mm ID x 123.98mm OD x 15.88mm Thk

Upper, Lower Articulation Plate

1шт.

20

L125227

SPACER

Upper, Lower Pivot Bearing

1шт.

21

L125007

BEARING ASSY,76.2mm ID x 139.99mm OD x 73.03mm W

Lower Pivot

1шт.

22

L125234

SHIM,141mm ID x 215mm OD x 0.11mm Thk

0,10 mm (0,004 in), Lower Pivot

1шт.

22

L125235

SHIM,141mm ID x 215mm OD x 0.28mm Thk

0,25 mm (0,010 in), Lower Pivot

1шт.

22

L125236

SHIM,141mm ID x 215mm OD x 0.54mm Thk

0,50 mm (0,020 in), Lower Pivot

1шт.

North American Models JEE0126216-

1шт.

23

L125228

COLLAR

Lower Pivot

1шт.

24

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

4шт.

25

D43266

WASHER

5/8, Hardened

4шт.

26

L125229

SPACER,76.22mm ID x 92.16mm OD x 64.52mm L

Lower, Lower Pivot Bearing

1шт.

27

L125562

SEAL,92.08mm ID x 123.98mm OD x 15.88mm Thk

Lower, Lower Pivot

1шт.

28

L125237

SHIM,100mm ID x 178mm OD x 0.11mm Thk

0,10 mm (0,004 in), One Half, Lower Plate

1шт.

28

L125238

SHIM

0,25 mm (0,010 in), One Half, Lower Plate

1шт.

28

L125239

SHIM,100mm ID x 178mm OD x 0.54mm Thk

0,50 mm (0,020 in), One Half, Lower Plate

1шт.

28

L125970

SHIM,100mm ID x 178mm OD x 1.05mm Thk

1,00 mm (0,040 in), One Half, Lower Plate

1шт.

29

L125230

LARGE PLATE

PLATE, LARGE , Lower Pin

1шт.

30

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

6шт.

31

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8 x 3-1/2; 8

3шт.

32

NLS

NO LONGER SERVICED

5/8, Hardened

9шт.
