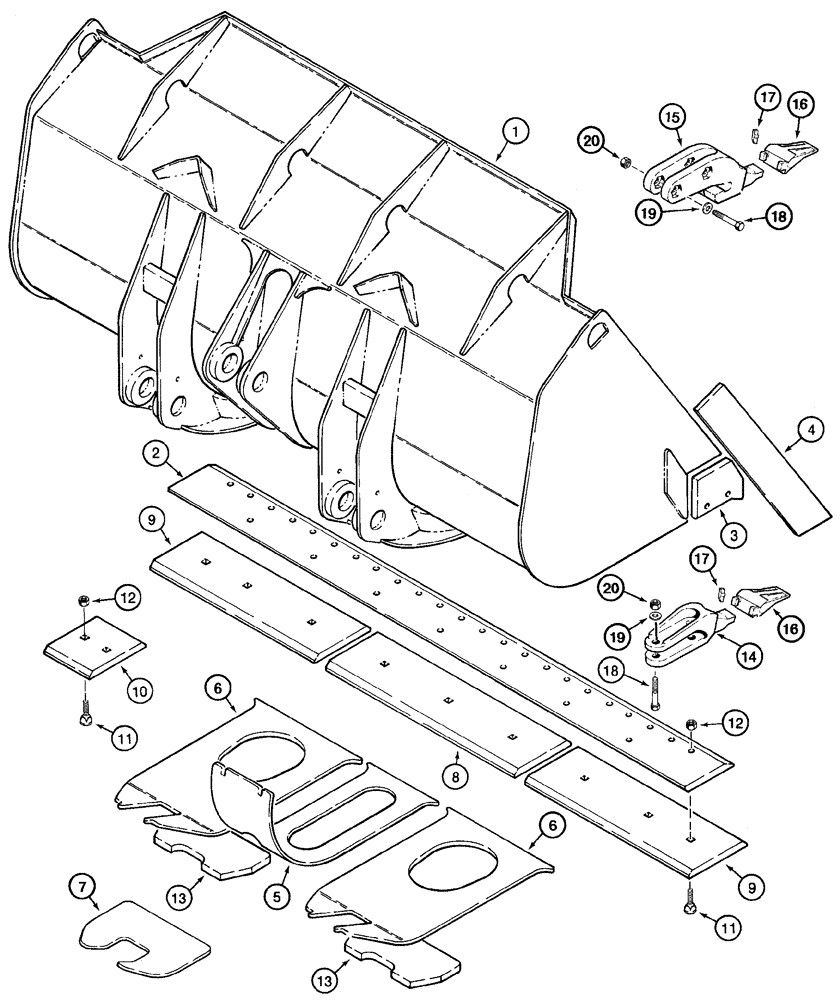

Запчасти Case 821C (09-04) - BUCKETS LOADER (09) - CHASSIS

Bucket 2,7 cu m (3.50 cu yd)

1шт.

L125990

BUCKET

Loader, Order From Machinery Price List, Consists Of 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

L129400

EDGE

Front, Welded On

1шт.

3

L125136

EDGE, CUTTING

Corner, Welded On

2шт.

4

L125145

EDGE, CUTTING

Side, Welded On

2шт.

5

L129359

LARGE PLATE

PLATE, LARGE , Center

1шт.

6

L129360

LARGE PLATE

PLATE, LARGE , Bucket Ear

2шт.

7

L127766

LARGE PLATE

PLATE, LARGE , Bucket Ear, If Used

2шт.

8

L125171

EDGE, CUTTING

1009 mm (39-3/4 in), Center

1шт.

9

L125172

EDGE, CUTTING

874 mm (34-1/2 in), End

2шт.

10

L125814

EDGE, CUTTING

230 mm (9 in)

8шт.

11

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

1 x 3-1/2; 8

9-16шт.

12

329-1016

NUT,1"-8, G8

9-16шт.

13

L125498

LARGE PLATE

PLATE, LARGE , Bucket Ear

2шт.

Bucket Teeth

1шт.

254813A1

BUCKET TOOTH

Center, Consists Of 14, 16, 17

7шт.

254812A1

TEETH

Corner, Consists Of 15, 16, 17

2шт.

14

NSS

NOT SOLD SEPARAT

Shank, Center

1шт.

15

NSS

NOT SOLD SEPARAT

Shank, Corner

1шт.

16

254814A1

BUCKET TOOTH

Standard

1шт.

16

254816A1

BUCKET TOOTH

Abrasion, Not Shown

1шт.

16

254817A1

BUCKET TOOTH

Penetration, Not Shown

1шт.

17

254815A1

PIN

Point Retaining

1шт.

18

326-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

18шт.

19

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Hardened

18шт.

20

329-1016

NUT,1"-8, G8

18шт.

21

305029A1

Loader, Used With ACS Pro-Series 2000 Coupler, Order From Machinery Price List, Not Shown

1шт.

22

305052A1

Loader, Used With JRB Series Coupler, Order From Machinery Price List, Not Shown

1шт.

Bucket 3,4 cu m (4 cu yd)

1шт.

231271A1

BUCKET

Loader, Order From Machinery Price List, Consists Of 1 -4

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket

1шт.

2

L129400

EDGE

Front, Welded On

1шт.

3

L125136

EDGE, CUTTING

Corner, Welded On

2шт.

4

L125726

EDGE, CUTTING

Side, Welded On

2шт.

5

231274A1

PLATE

Center

1шт.

6

231273A1

PLATE

Bucket Ear

2шт.

7

L127766

LARGE PLATE

PLATE, LARGE , Bucket Ear, If Used

2шт.

8

L125171

EDGE, CUTTING

1009 mm (39-3/4 in), Center, Bolt On

1шт.

9

L125172

EDGE, CUTTING

874 mm (34-1/2 in), End, Bolt On

2шт.

10

L125814

EDGE, CUTTING

230 mm (9 in)

8шт.

11

L125966

PLOW BOLT,#3, Dome Hd, 1" - 8 x 3.50", Gr 8

1 x 3-1/2; 8

9-16шт.

12

329-1016

NUT,1"-8, G8

9-16шт.

13

L125498

LARGE PLATE

PLATE, LARGE , Bucket Ear

2шт.

Bucket Teeth

1шт.

254813A1

BUCKET TOOTH

Center, Consists Of 14, 16, 17

7шт.

254812A1

TEETH

Corner, Consists Of 15, 16, 17

2шт.

14

NSS

NOT SOLD SEPARAT

Shank, Center

1шт.

15

NSS

NOT SOLD SEPARAT

Shank, Corner

1шт.

16

254814A1

BUCKET TOOTH

Standard

1шт.

16

254816A1

BUCKET TOOTH

Abrasion, Not Shown

1шт.

16

254817A1

BUCKET TOOTH

Penetration, Not Shown

1шт.

17

254815A1

PIN

Point Retaining

1шт.

18

326-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 8

18шт.

19

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

Hardened

18шт.

20

329-1016

NUT,1"-8, G8

18шт.
