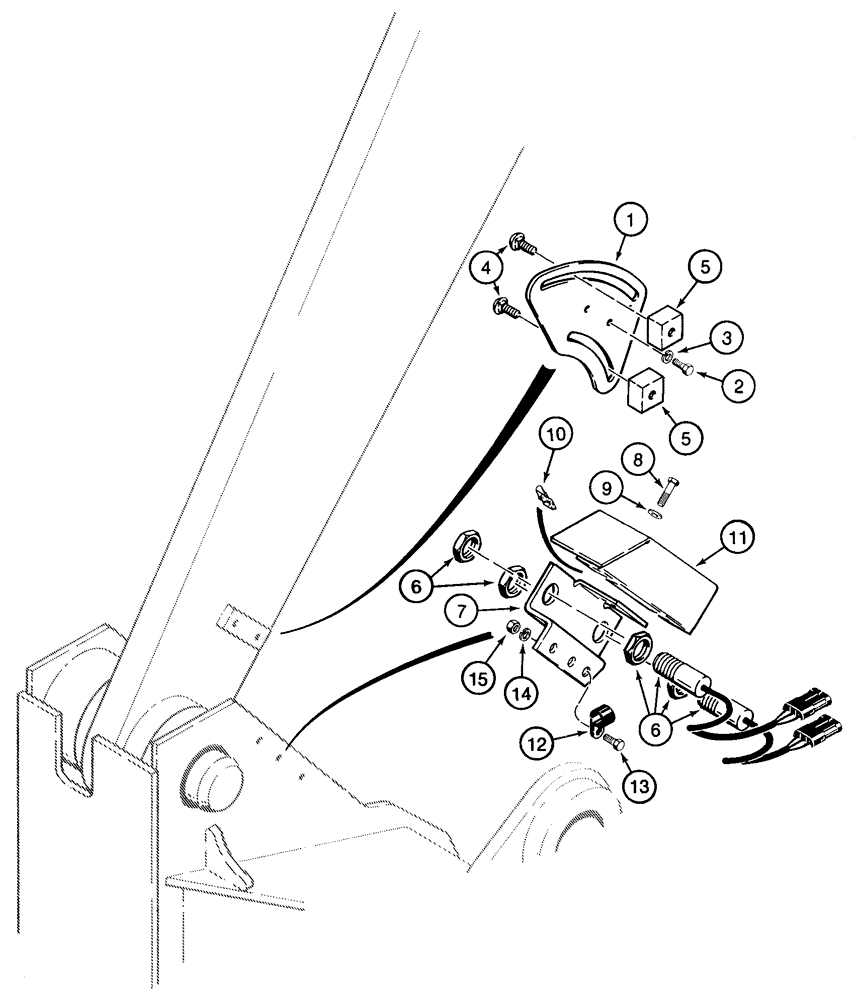

Запчасти Case 821C (09-02) - CONTROLS BUCKET HEIGHT AND RETURN-TO-TRANSPORT (09) - CHASSIS

1

L125256

LARGE PLATE

PLATE, LARGE

1шт.

2

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

4

411-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 2

2шт.

5

L125976

SWITCH

2шт.

6

1546498C1

SWITCH

2шт.

7

L125982

SUPPORT

1шт.

8

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

10

131-856

SPRING NUT,Ret, J, 3/8"-16

2шт.

11

L125258

COVER

1шт.

12

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

13

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

3шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

3шт.
