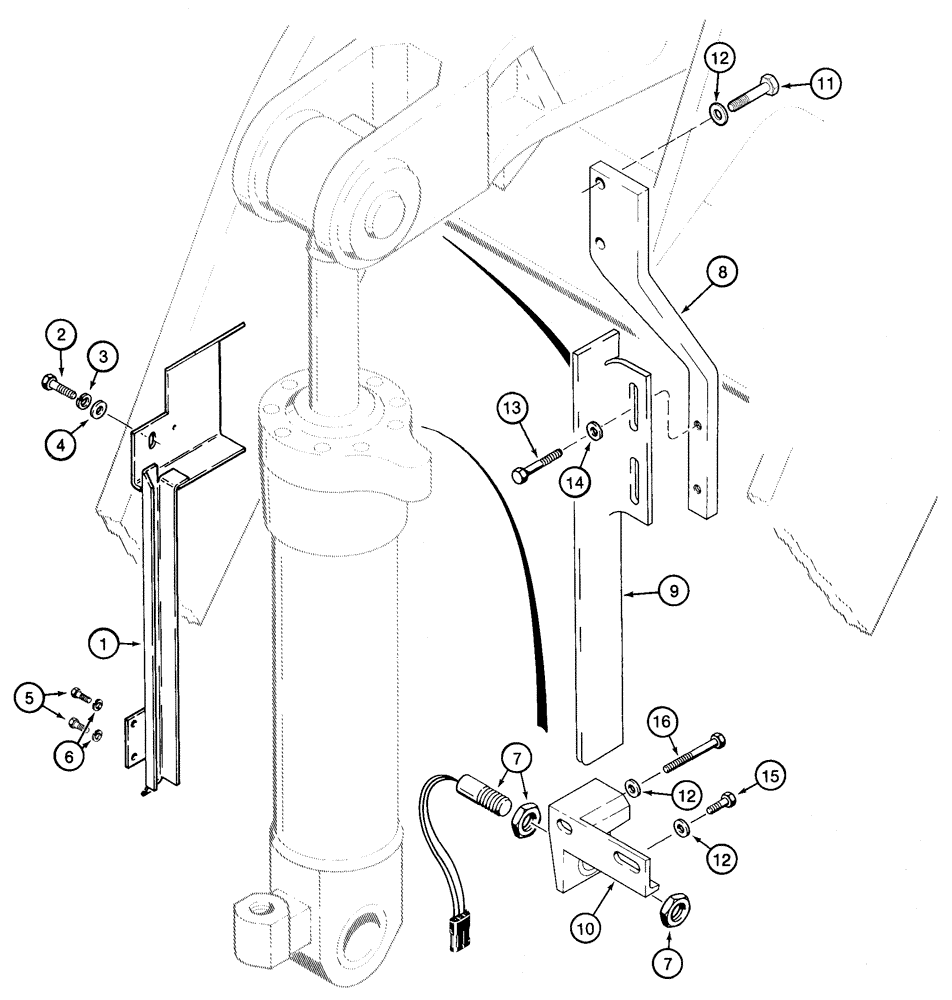

Запчасти Case 821C (09-01) - CONTROL RETURN-TO-DIG (09) - CHASSIS

1

107207A1

SUPPORT

Harness, Return To Dig

1шт.

2

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

4

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

1шт.

5

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

1546497C1

SWITCH

Return To Dig, Includes Hardware

1шт.

8

L128809

SUPPORT

1шт.

9

L128807

SUPPORT

Sensing, Return To Dig

1шт.

10

L125983

SUPPORT

Mounting, Proximity Switch

1шт.

11

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

13

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

14

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

15

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

16

426-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

1шт.
