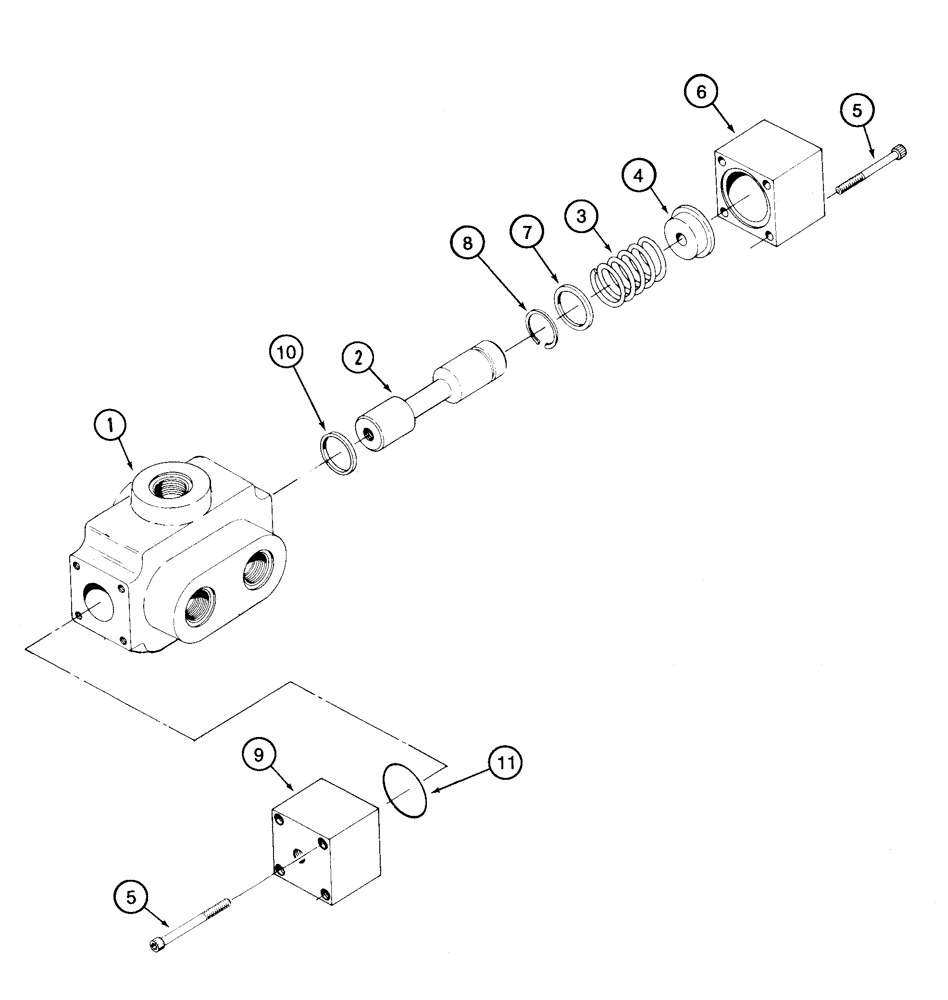

Запчасти Case 821C (08-69) - VALVE ASSY RIDE CONTROL DIRECTIONAL (08) - HYDRAULICS

106488A1

VALVE

Directional Control, Ride Control, Consists Of 1-11

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Order 106488A1

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Order 106488A1

1шт.

3

33-1165T1

COMPRESSION SPRING

1шт.

4

33-1171T1

SPACER

1шт.

5

33-1168T1

HEX SOC SCREW

1/4 x 2

8шт.

6

33-1170T1

CAP

1шт.

7

33-1164T1

WASHER

1шт.

8

103-13100

SNAP RING,#100, Ext, Crescent

Replaces P/N D23692

1шт.

9

123253A1

VALVE BODY

1шт.

123254A1

SEAL KIT

Consists Of 10,11, Includes Dust Seal Not Used In This Application

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Order 123254A1

2шт.

11

NSS

NOT SOLD SEPARAT

O-Ring, Order 123254A1

1шт.
