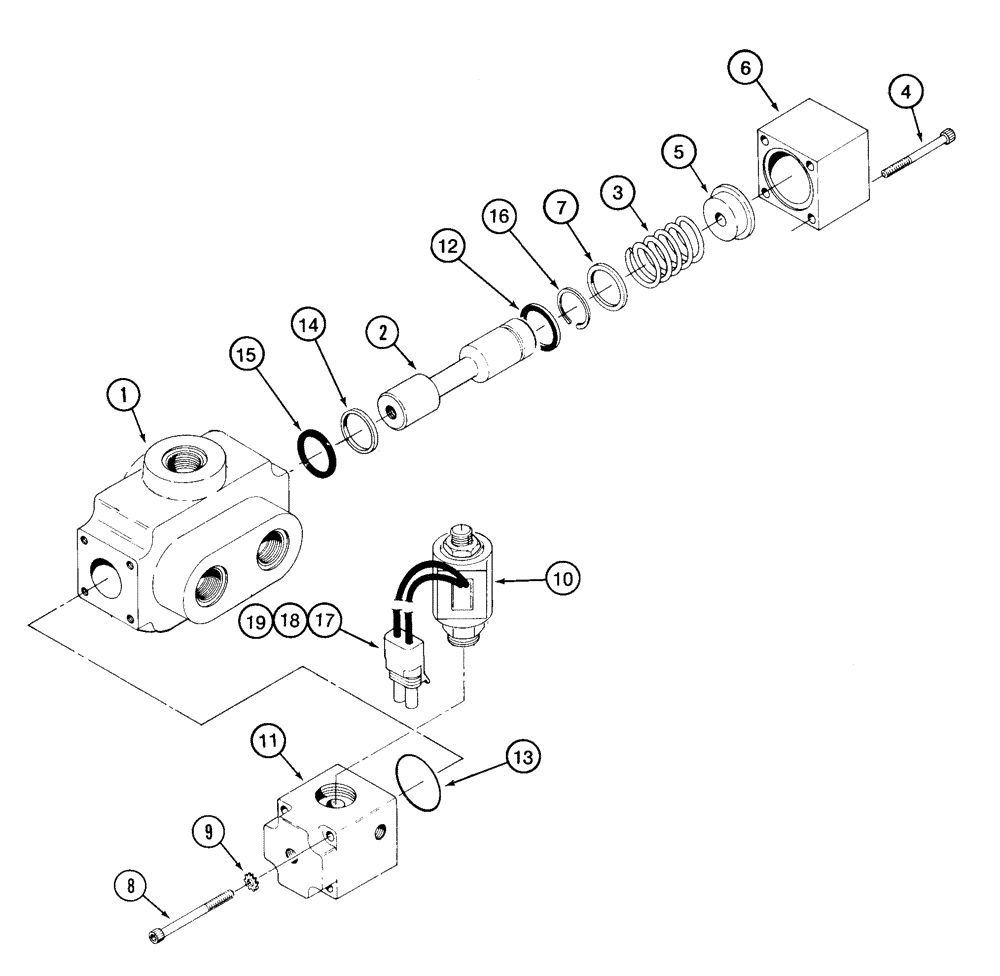

Запчасти Case 821C (08-68) - VALVE ASSY RIDE CONTROL, MASTER DIRECTIONAL (08) - HYDRAULICS

107866A1

VALVE

Master Directional, With Electrical Connector, Consists Of 1-19

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Order 107866A1

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Order 107866A1

1шт.

3

33-1165T1

COMPRESSION SPRING

1шт.

4

33-1168T1

HEX SOC SCREW

1/4 x 2

4шт.

5

33-1171T1

SPACER

1шт.

6

33-1170T1

CAP

1шт.

7

33-1164T1

WASHER

1шт.

8

33-1167T1

HEX SOC SCREW

1/4 x 2-1/2 in

4шт.

9

493-41026

LOCK WASHER,Ext Tooth, 1/4"

4шт.

10

122965A1

SOLENOID

24V

1шт.

11

122971A1

VALVE BODY

1шт.

12

R24866

RING

1шт.

13

189344A1

O-RING

1шт.

14

189345A1

SEAL

1шт.

15

189346A1

O-RING

1шт.

16

103-13100

SNAP RING,#100, Ext, Crescent

Replaces P/N D23692

1шт.

17

195842A1

SEAL

Not Illustrated

2шт.

18

190256A1

TERMINAL CONNECTOR

Not Illustrated

2шт.

19

190258A1

BODY

Not Illustrated

1шт.
