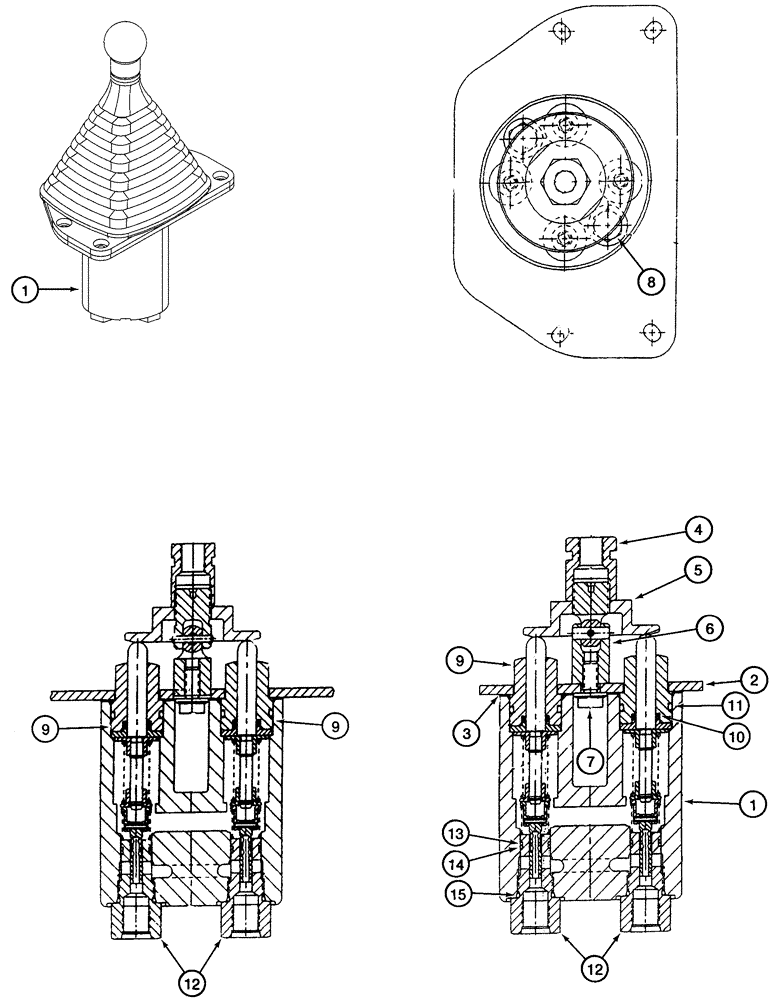

Запчасти Case 821C (08-60) - VALVE ASSY REMOTE CONTROL, AUXILIARY (08) - HYDRAULICS

Single Lever With Two Spool Valve

1шт.

North America Only

1шт.

240921A1

VALVE

Remote Control, Two Spool, Consists Of 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

323775A1

LARGE PLATE

PLATE, LARGE

1шт.

3

323779A1

GASKET,0.46mm Thk

Gasket

1шт.

4

323771A1

SPECIAL NUT

1шт.

5

323774A1

PIVOT PLATE

1шт.

6

323773A1

COUPLING JOINT

1шт.

7

323787A1

SERRATED SCREW

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

9

323768A1

PLUNGER

Cartridge, Component Parts Not Serviced Separately, For Service of External O-Ring and Spool Seal, Order 323915A1 Kit, Includes 323915A1, 10, 11

4шт.

Single Lever With Two Spool Valve

1шт.

North America Only

1шт.

323915A1

SET OF PARTS

Seal, Consists Of 10, 11

1шт.

10

323922A1

SEAL,8.84mm ID x 15.24mm OD x 2.92mm Thk

Spool

1шт.

11

238-8118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 8, 90 Duro

1шт.

12

323766A1

VALVE

Component Parts Not Serviced Separately, For Service of External Seals, Order 323913A1 Kit, Includes 323913A1, 13-15

4шт.

323913A1

SEAL KIT

Seal, Consists Of 13-15

1шт.

13

323921A1

RING

1шт.

14

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

15

238-8014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 8, 90 Duro

1шт.
