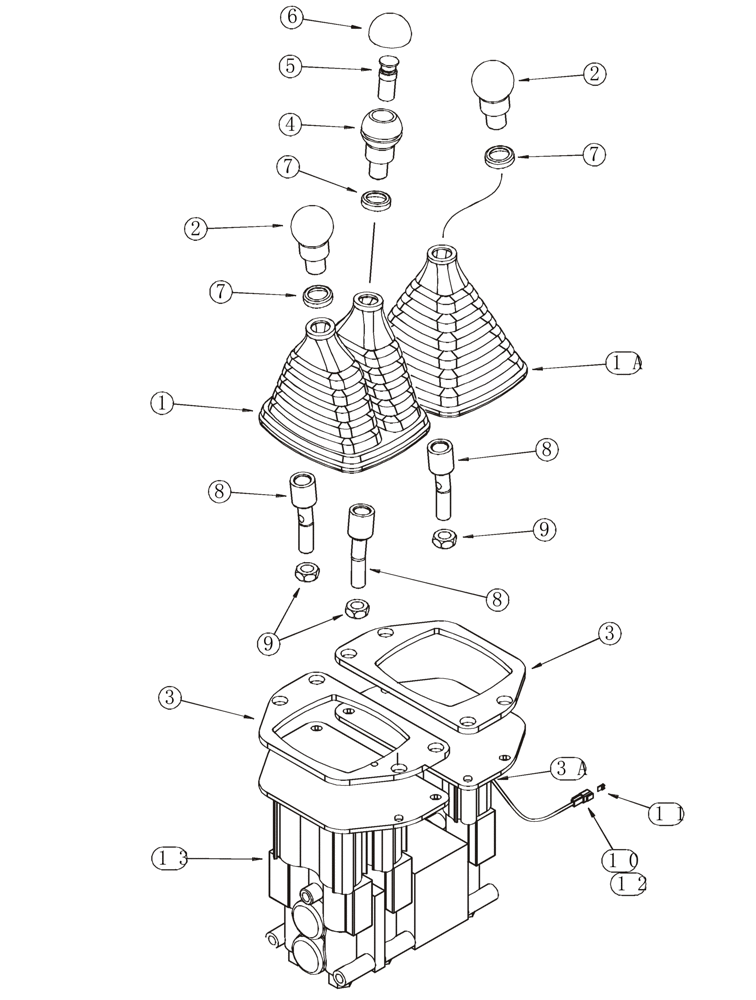

Запчасти Case 821C (08-57) - VALVE ASSY REMOTE CONTROL, THREE LEVER (08) - HYDRAULICS

Three Lever With Three Spool Valve

1шт.

If Used

1шт.

292050A1

VALVE

Three Lever Remote, Consists Of 1-13

1шт.

1

275861A1

BOOT

Dual Lever

1шт.

1a

275860A1

BOOT

Single Lever

1шт.

2

291477A1

BALL KNOB

2шт.

3

316777A1

GASKET

2шт.

3a

330136A1

HEATER TUBE,4.75 mm ID

Heat Shrink, Kickdown Switch Wires

1шт.

4

291478A1

BALL KNOB

1шт.

5

291475A1

IGNITION SWITCH

Push Button, Kickdown

1шт.

6

291476A1

BOOT

Switch

1шт.

7

291474A1

WASHER

3шт.

8

256071A1

PLUNGER

3шт.

9

425-158

JAM NUT,Jam, 1/2"-20, G5

3шт.

10

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

11

225318C1

ELEC CONNECTOR,2 Pin

Locking

1шт.

12

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

2шт.

13

291941A1

VALVE

Remote Control, Three Spool, See Page(s) 8-171

1шт.
