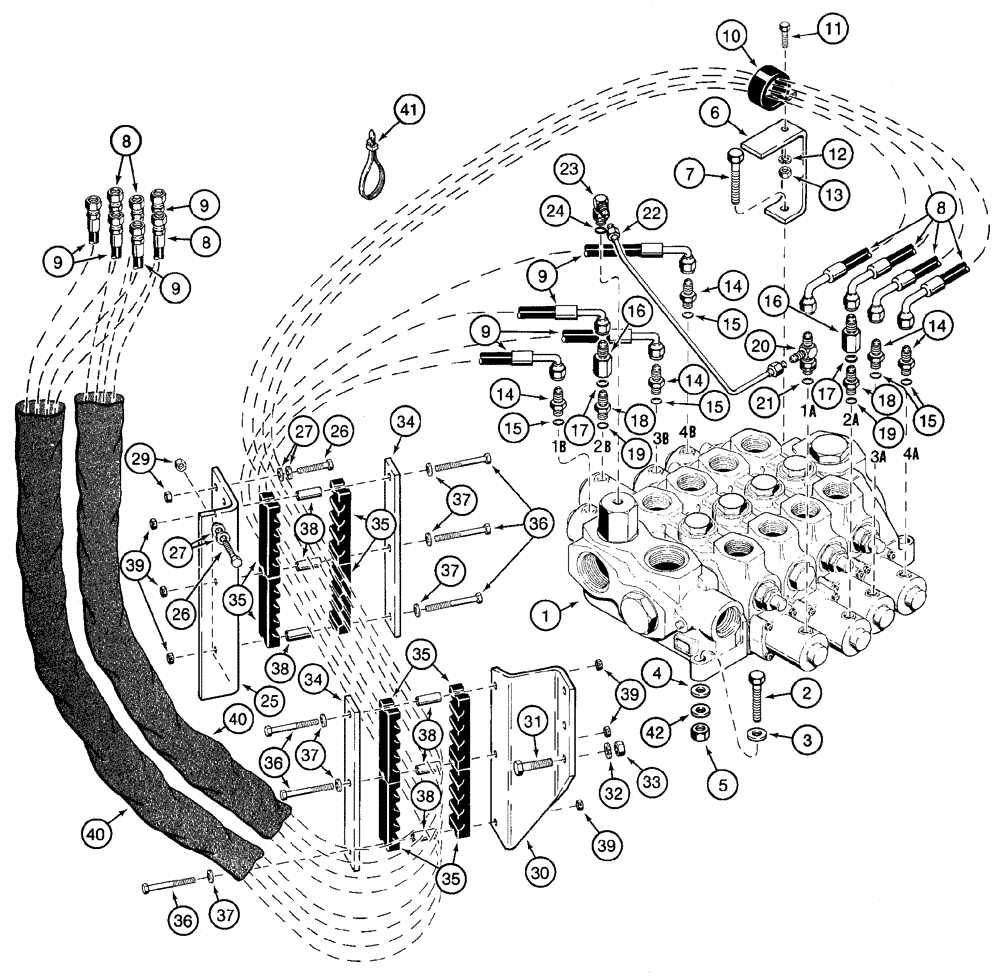

Запчасти Case 821C (08-47) - HYDRAULICS LOADER CONTROL, REMOTE (08) - HYDRAULICS

Hose Grommet to Four Spool Valve

1шт.

North America Only

1шт.

1

L126102

VALVE

Four Spool, See Page(s) 8-67

1шт.

2

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

4

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

3шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

6

L125891

SUPPORT

Hose

1шт.

7

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

8

302389A1

HOSE ASSY.

2990 mm (117-3/4 in), Hose Grommet to Ports 1A, 2A, 3A and 4A

4шт.

9

302390A1

HOSE ASSY.

2490 mm (98 in), Hose Grommet to Ports 1B, 2B, 3B and 4B

4шт.

10

515-23508

CLAMP,2", Insul, 3/8" Bolt

19 mm, Hose, Ports 1A, 2A, 3A and 4A

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

12

892-11010

LOCK WASHER,M10

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

Hose Grommet to Four Spool Valve

1шт.

North America Only

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

At Port(s) 1B, 3A, 3B, Incl. 15

5шт.

L110143

VALVE

Loader Lift, Consists Of 16-19

2шт.

16

NSS

NOT SOLD SEPARAT

Body

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 19

1шт.

20

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 21

1шт.

22

L125551

PIPE,9.52 mm OD

Inlet and Outlet Section to Tee at Port 1A

1шт.

23

L129652

FITTING

Includes 24

1шт.

26

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

Hose Grommet to Four Spool Valve

1шт.

North America Only

1шт.

25

114654A1

BRACKET

Left Hand

1шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

30

L125332

SUPPORT

Right Hand

1шт.

31

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

33

829-1412

NUT,M12, Cl 10.9

3шт.

34

L127357

LARGE PLATE

PLATE, LARGE

2шт.

35

L124271

FIXING BRACKET

8шт.

36

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

6шт.

37

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

38

L126936

SPACER

6шт.

39

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

40

S120426

TUBE

Hose Guard

2шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

2шт.

42

D35268

SHIM,1/32" Thk

1шт.

27

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
