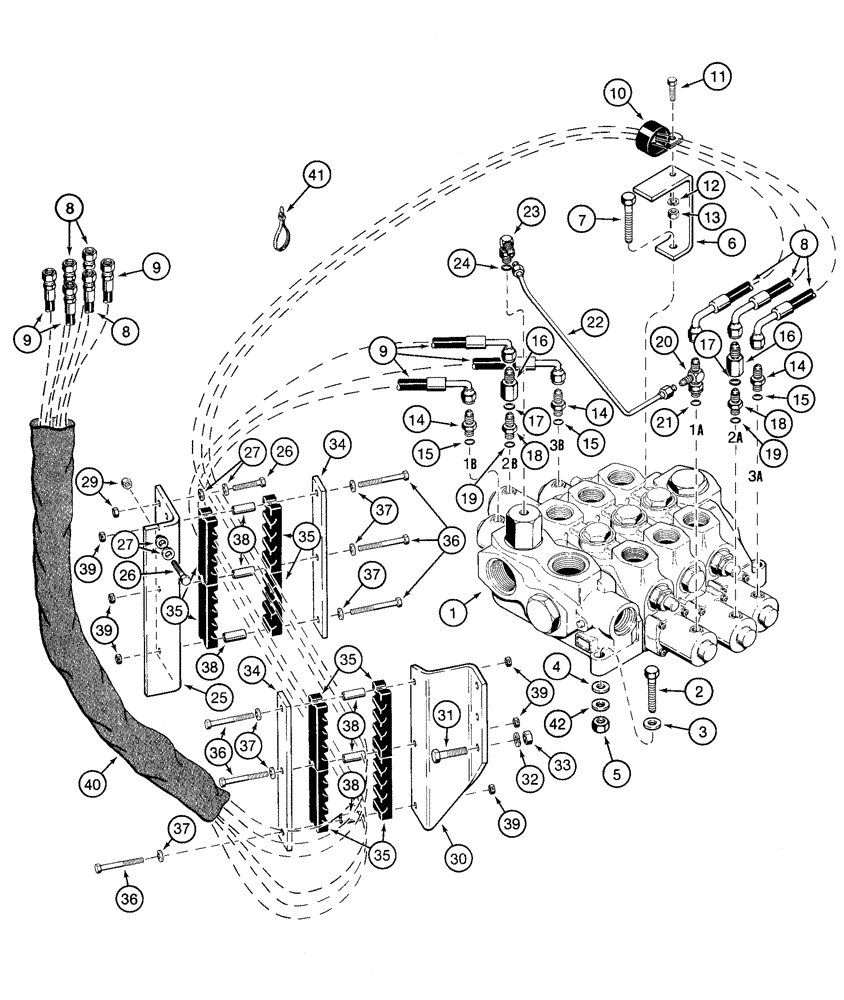

Запчасти Case 821C (08-44) - HYDRAULICS LOADER CONTROL, REMOTE (08) - HYDRAULICS

Hose Grommet to Three Spool Valve

1шт.

1

L126101

VALVE

Three Spool, See Page(s) 8-63

1шт.

2

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

2шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

4

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64

3шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

6

L125891

SUPPORT

Hose

1шт.

7

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

1шт.

8

302389A1

HOSE ASSY.

2990 mm (117-3/4 in), Hose Grommet to Ports 1A, 2A and 3A

3шт.

9

302390A1

HOSE ASSY.

2490 mm (98 in), Hose Grommet to Ports 1B, 2B and 3B

3шт.

10

R13931

CLAMP

Hose, Ports 1A, 2A and 3A

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

12

892-11010

LOCK WASHER,M10

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

Hose Grommet to Three Spool Valve

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

At Port(s) 1B, 3A, 3B, Incl. 15

3шт.

L110143

VALVE

Loader Lift, Consists Of 16-19

2шт.

16

NSS

NOT SOLD SEPARAT

Body

1шт.

18

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 19

1шт.

20

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 21

1шт.

22

L125551

PIPE,9.52 mm OD

Inlet and Outlet Section to Tee at Port 1A

1шт.

23

L129652

FITTING

Includes 24

1шт.

Hose Grommet to Three Spool Valve

1шт.

25

114654A1

BRACKET

Left Hand

1шт.

26

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

3шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

30

L125332

SUPPORT

Right Hand

1шт.

31

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

3шт.

32

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

33

829-1412

NUT,M12, Cl 10.9

3шт.

34

L127357

LARGE PLATE

PLATE, LARGE

2шт.

35

L124271

FIXING BRACKET

8шт.

36

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

6шт.

37

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

6шт.

38

L126936

SPACER

6шт.

39

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

40

S120426

TUBE

Hose Guard

2шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

2шт.

42

D35268

SHIM,1/32" Thk

1шт.

27

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

6шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
