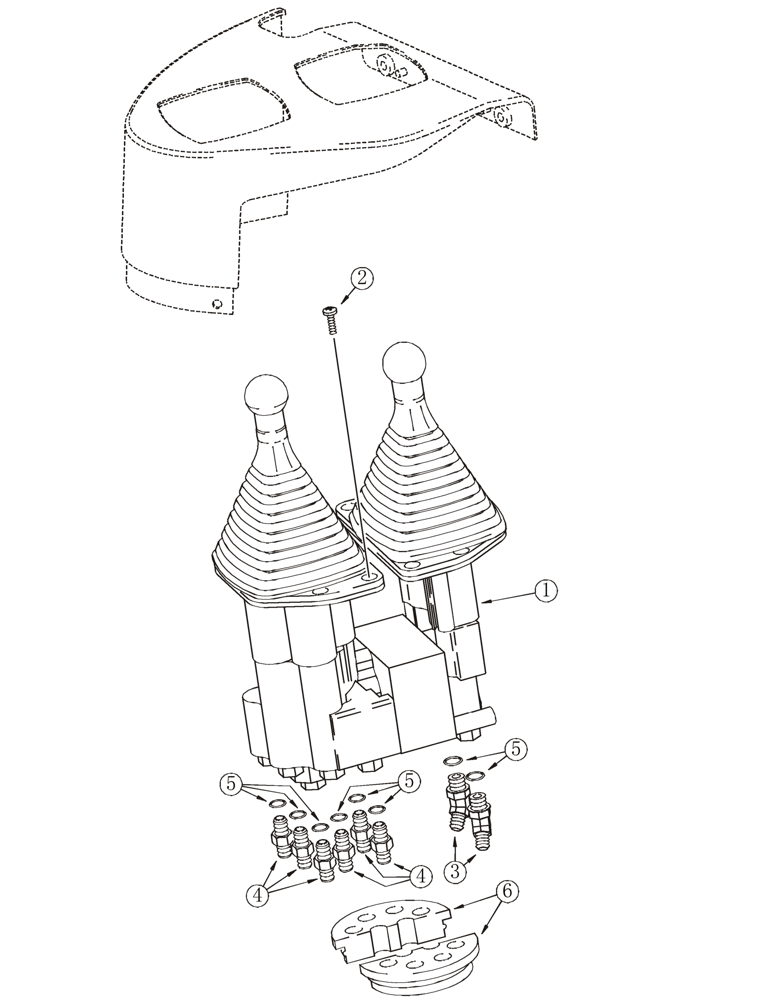

Запчасти Case 821C (08-40) - HYDRAULICS LOADER CONTROL, REMOTE (08) - HYDRAULICS

Dual Lever With Three Spool Valve

1шт.

If Used

1шт.

1

291087A1

VALVE

Dual Lever Remote, See Page(s) 8-161

1шт.

2

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

6шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 5

2шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

6шт.

6

232388A1

GROMMET

2шт.

See page 8-117 for a continuation of the circuit from the hose grommet to the loader valve

1шт.

Note: See page 9-143 for the console cover

1шт.

Nota : Voir la page 9 - 143 pour le couvercle de la console.

1шт.

Nota: Consultar la página 9-143 para la cubierta de la consola.

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
